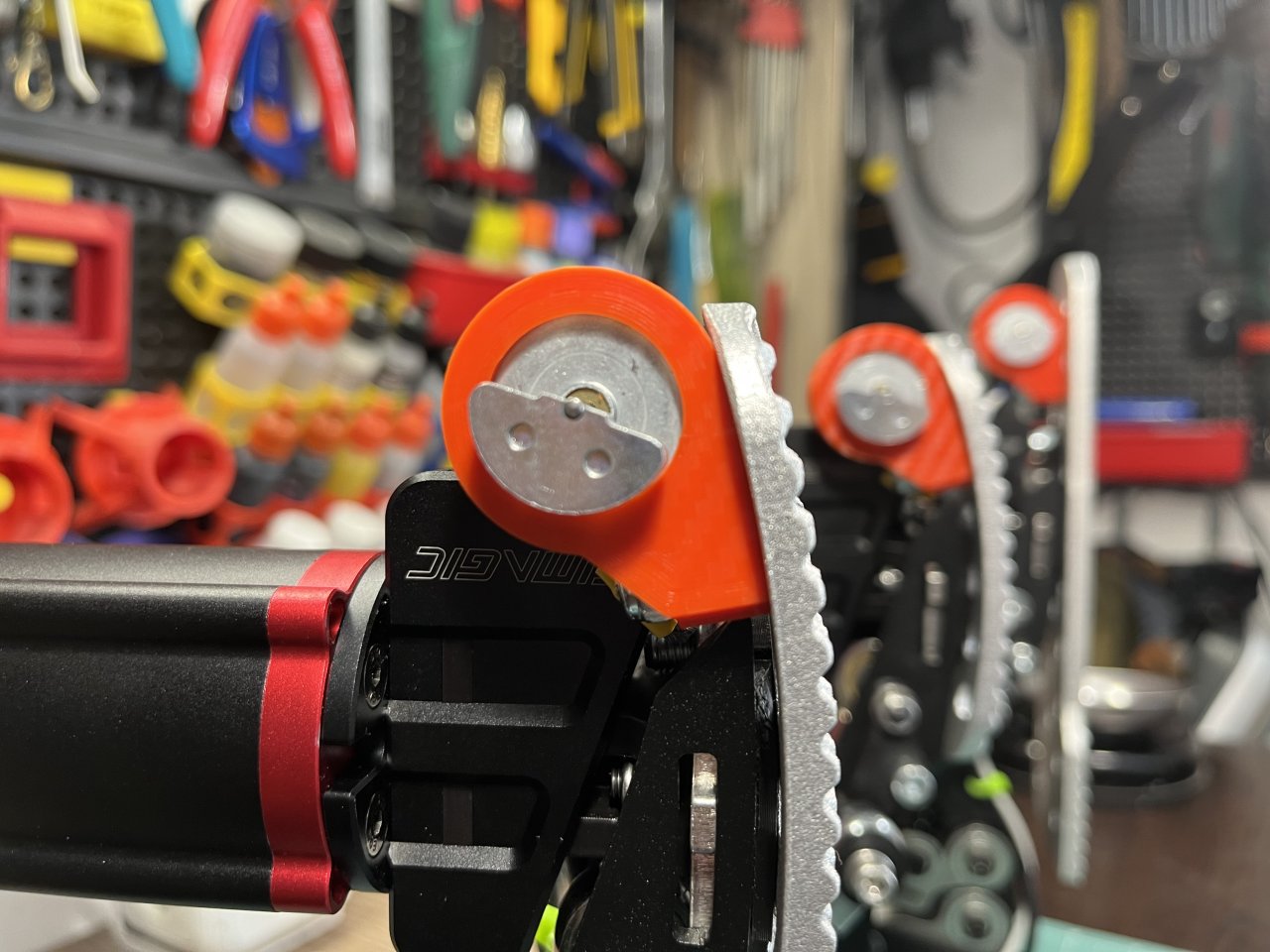

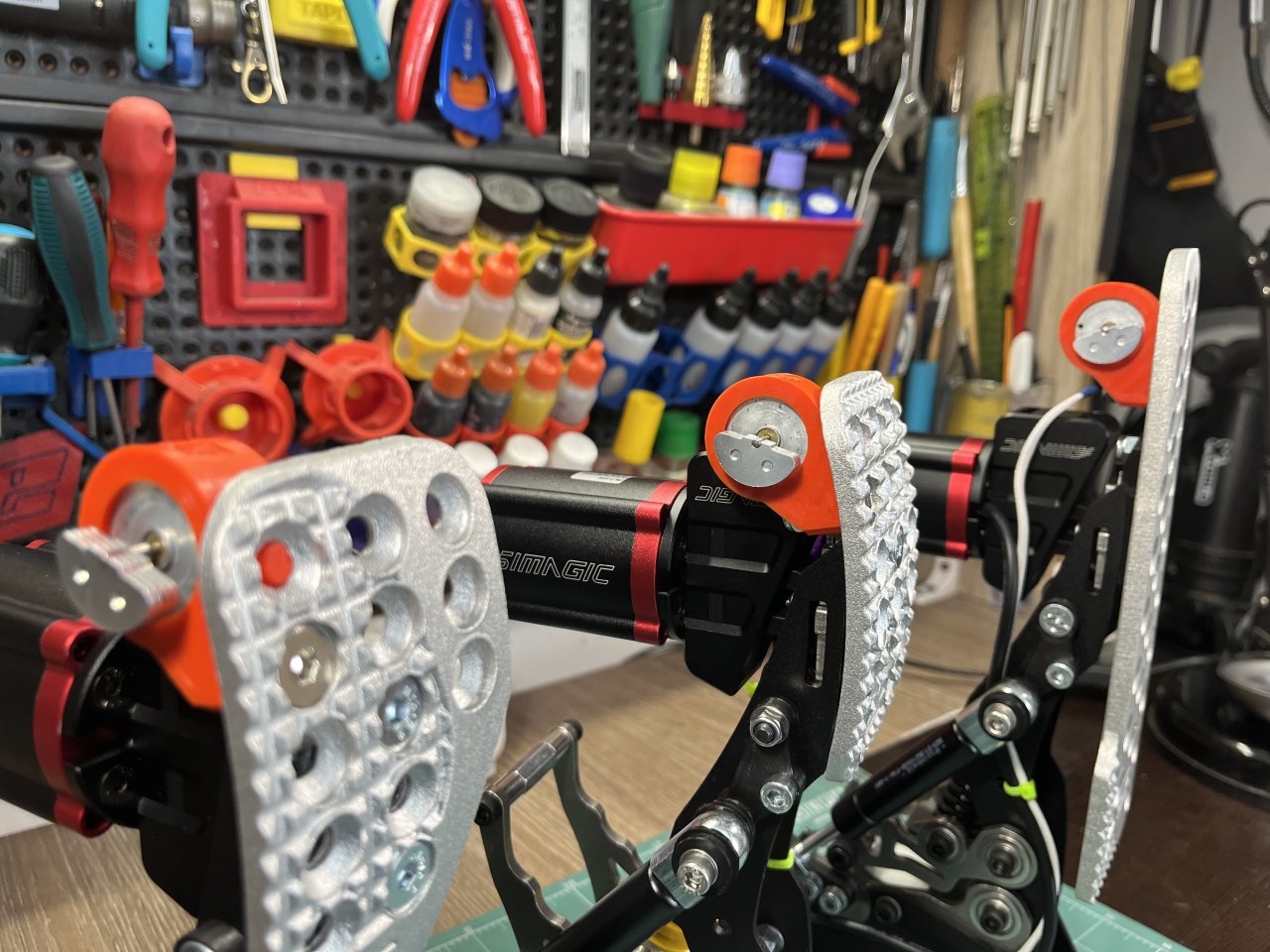

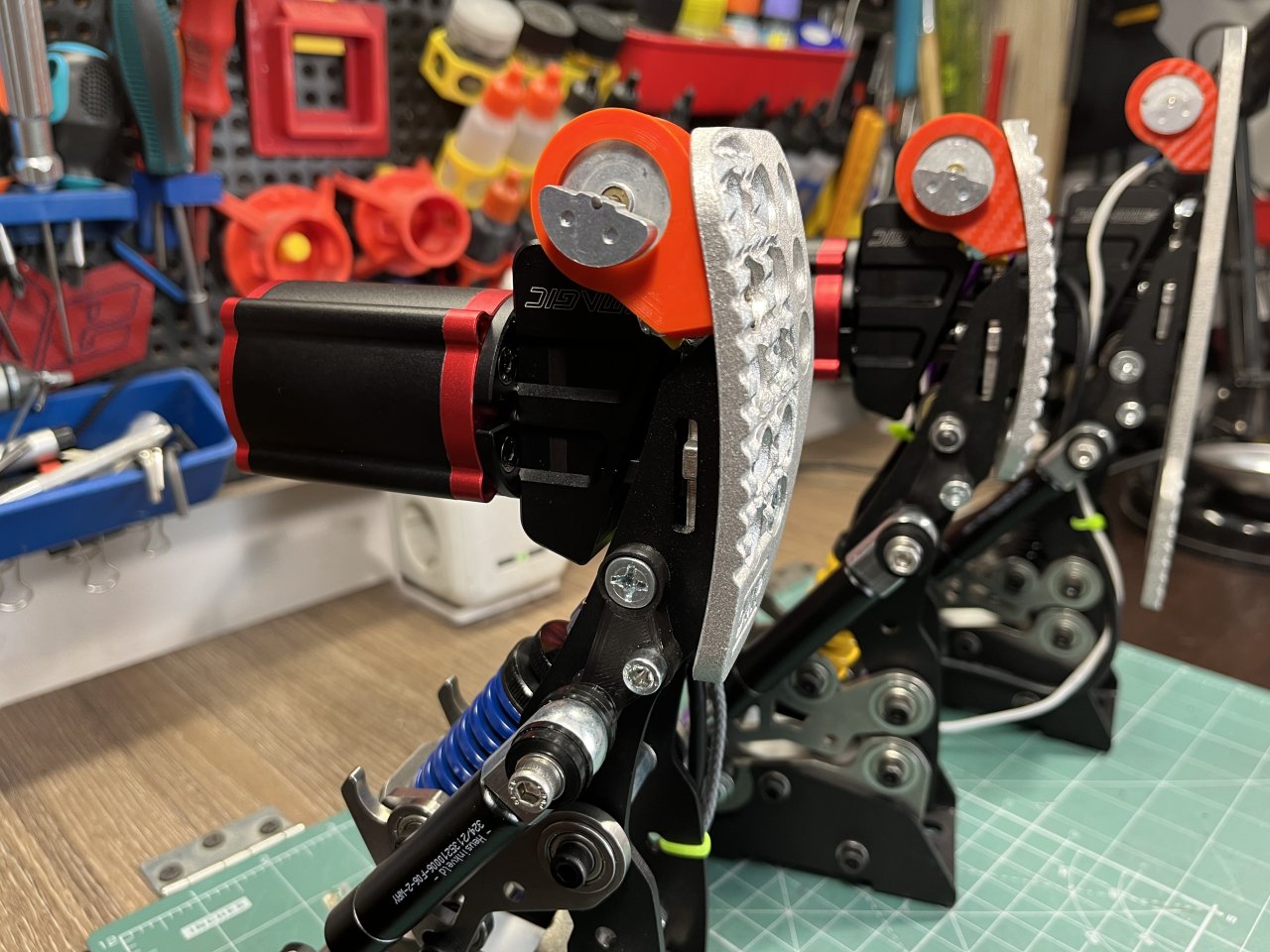

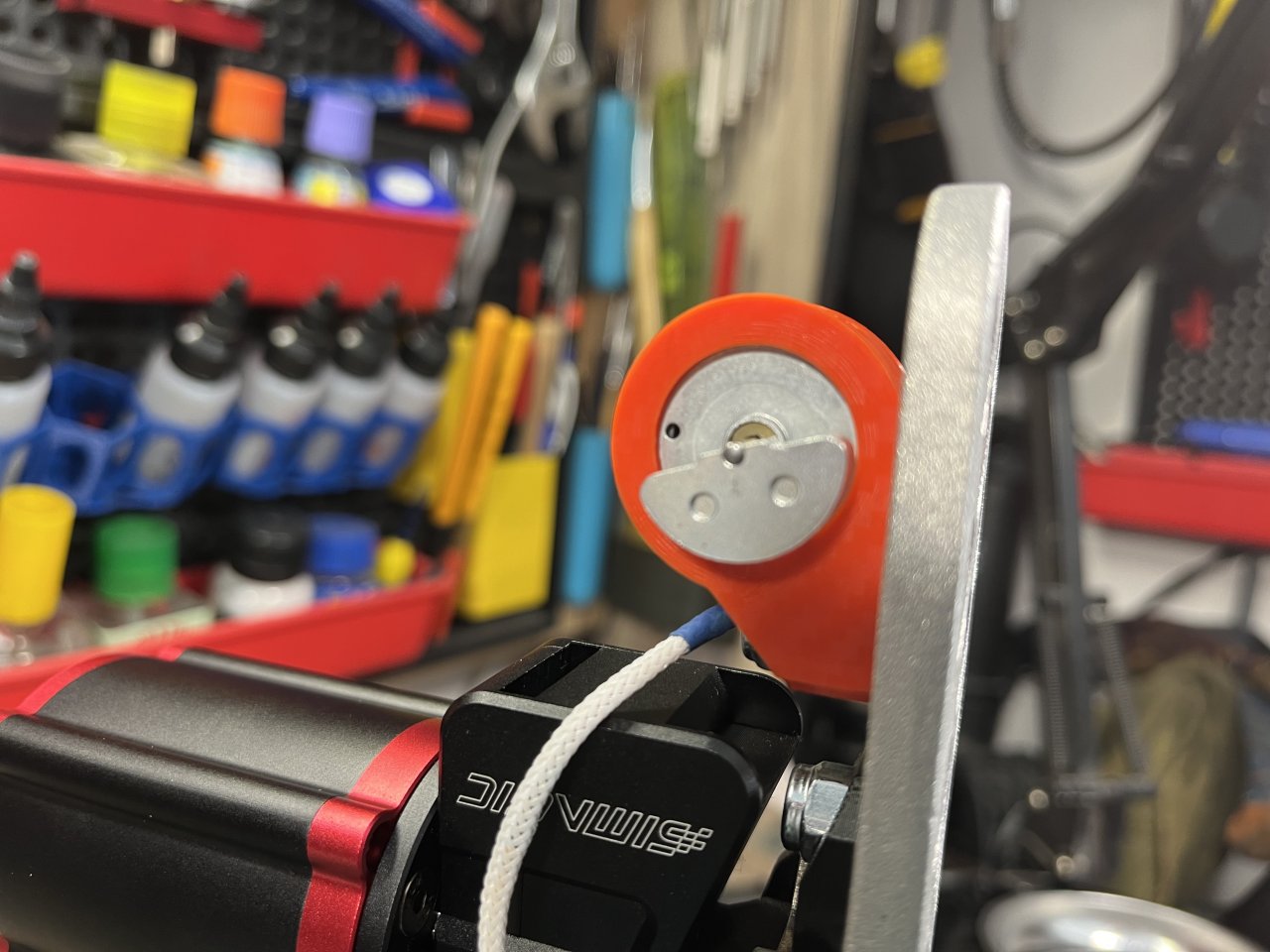

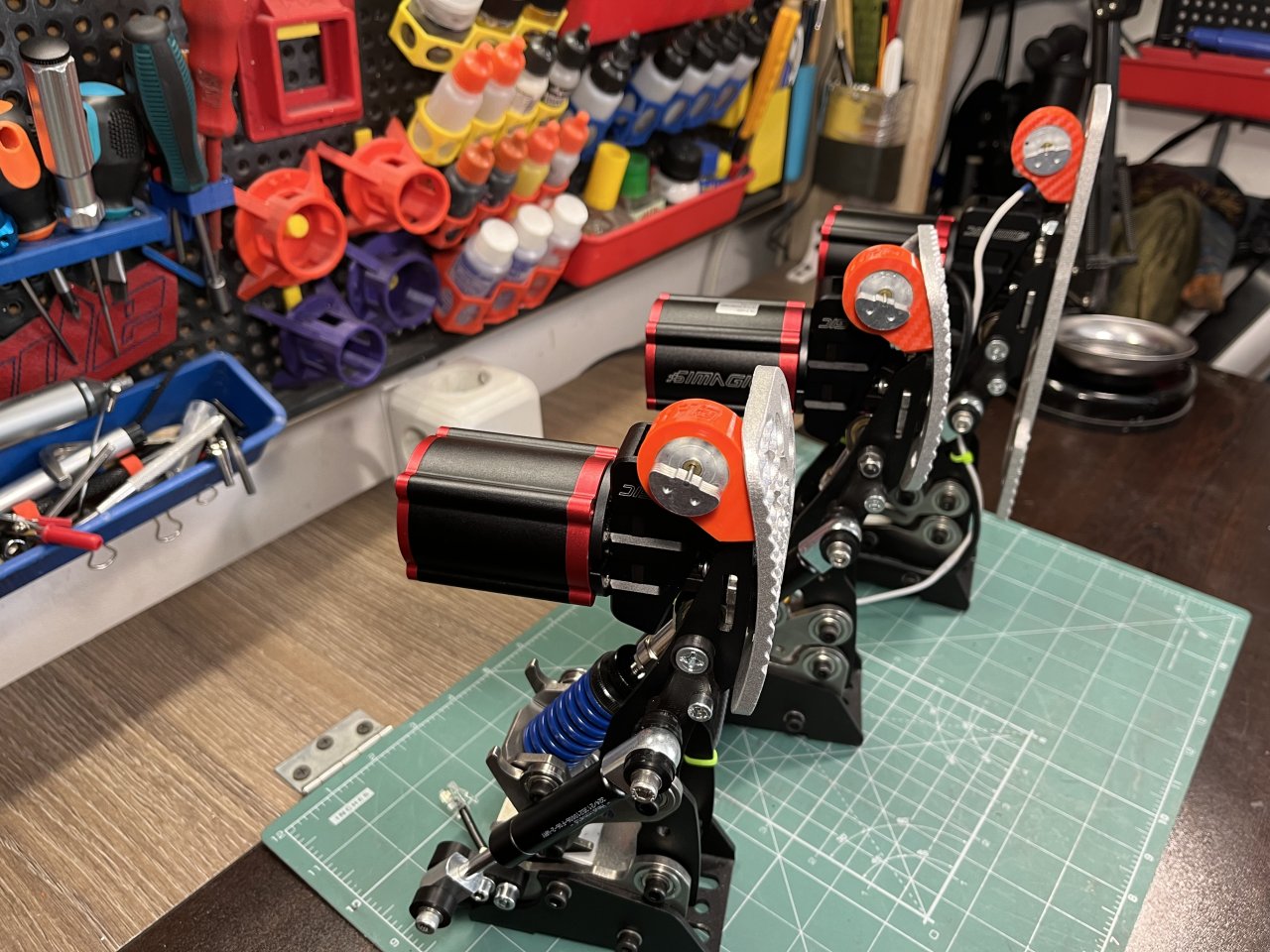

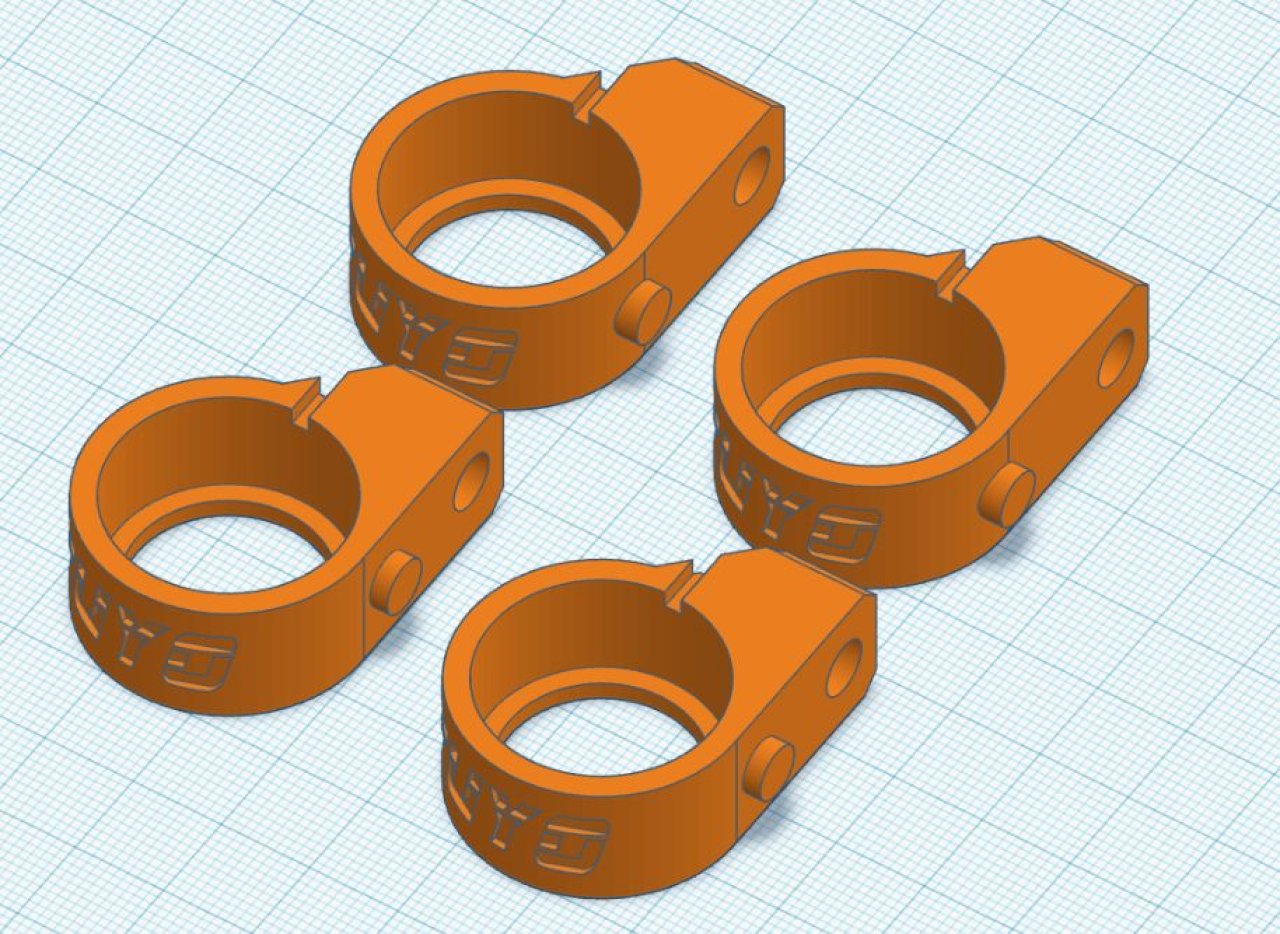

Simple rumble motor mount compatible with the OMP Pedal sets OA/1010, OA/1020, etc.
Placed directly on pedal face and driven at 12V these are very powerful and all vibrations are well transmitted to the foot. Quite compact and easy to make.

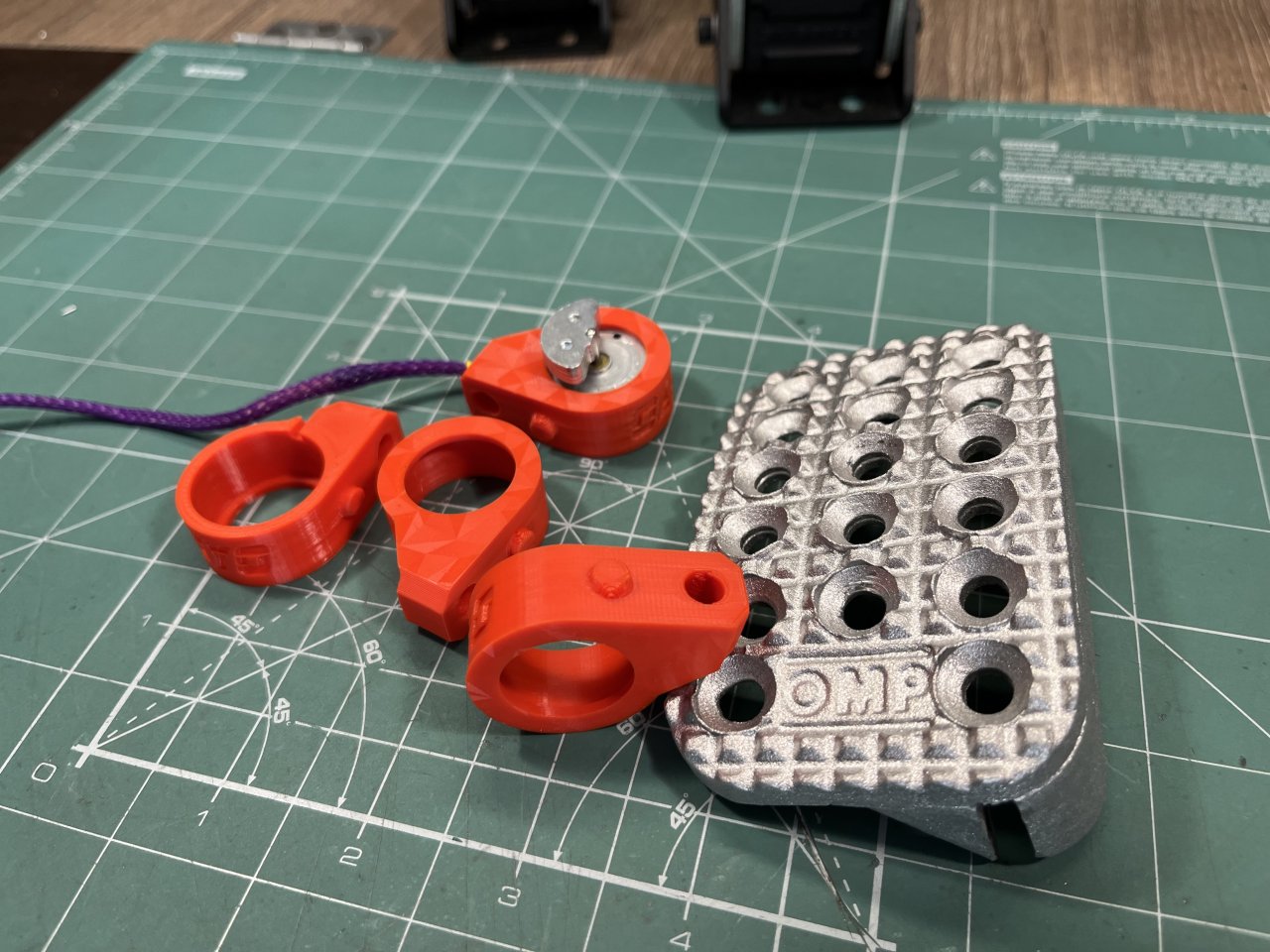

Long throttle pedal has different hole spacing so has dedicated mount. Also provided a little offset variant to move motor outwards and provide clearance for the Simagic HPRs.
How to build your own rumble motor system and software you can add on the SimHub GitHub link up in the details section.
-
Parts Needed:
1. Replacement rumble motors for XBOX controller (stick to the LEFT ones - they have bigger eccentric) - https://www.aliexpress.com/item/1005004731659632.html
2. M6x16 tapered screw to mount to pedal + M6 lock nut
Print Settings:
No supports needed, 5 walls/layers/20% infill all in PLA
