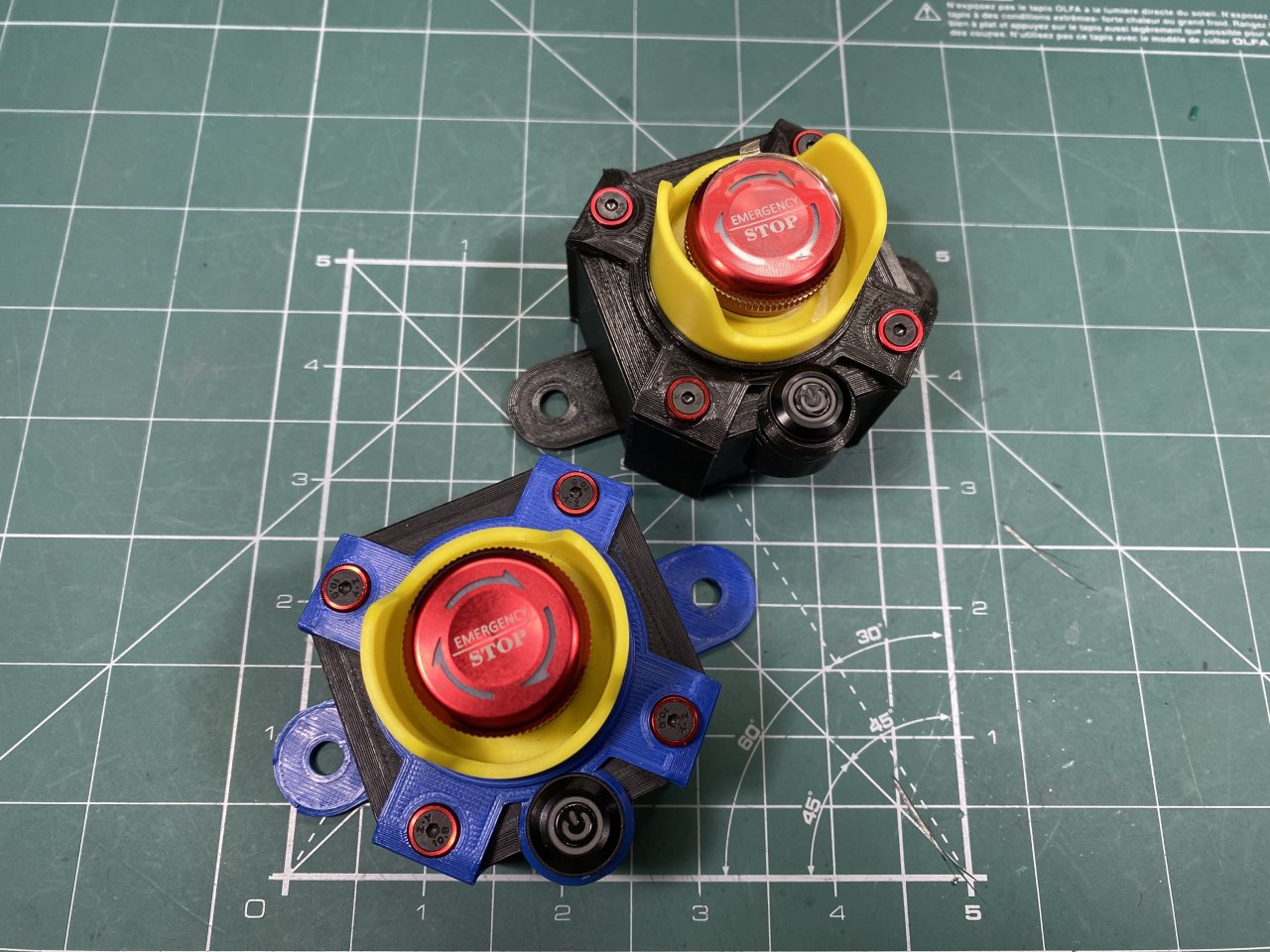

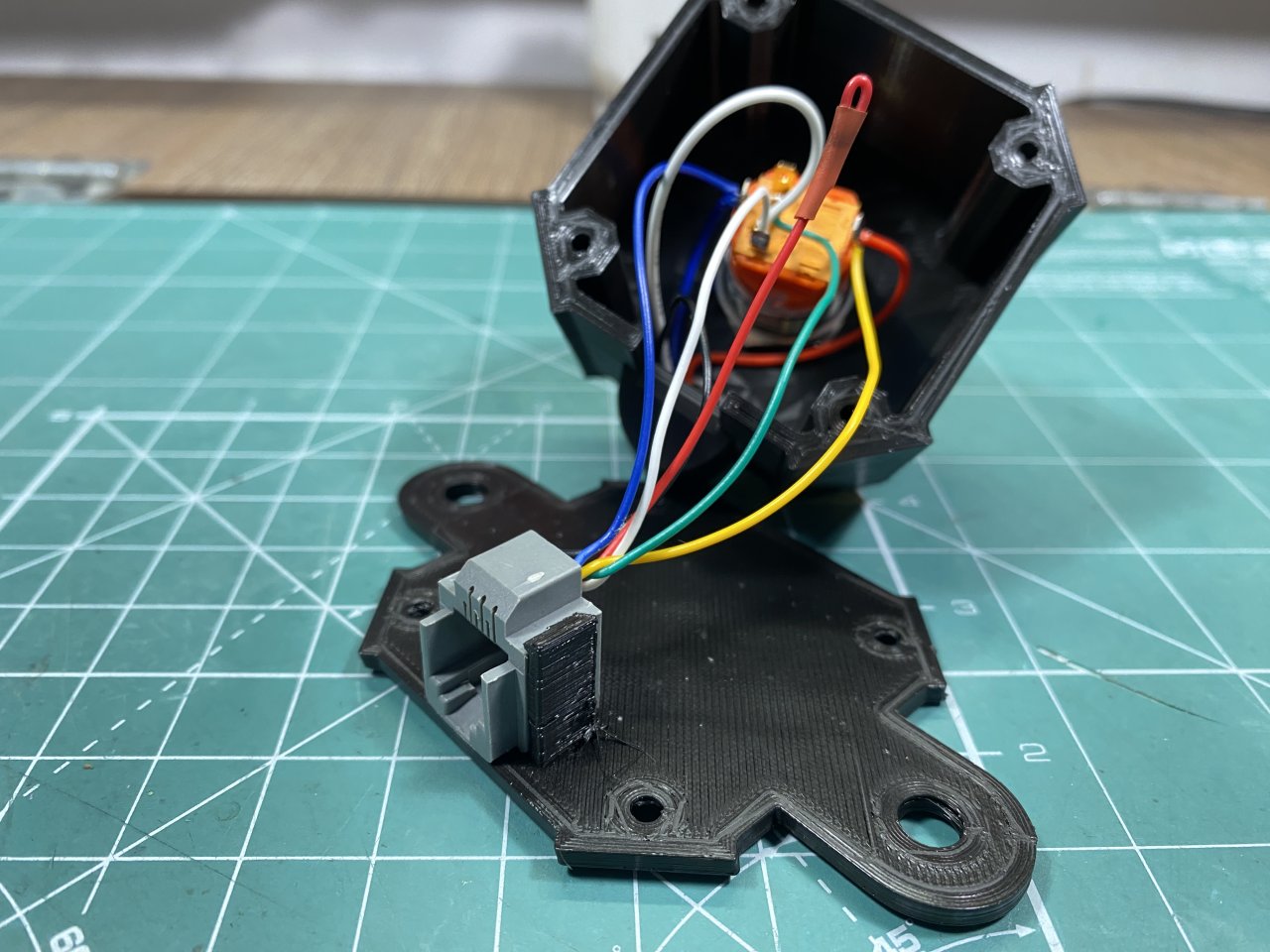

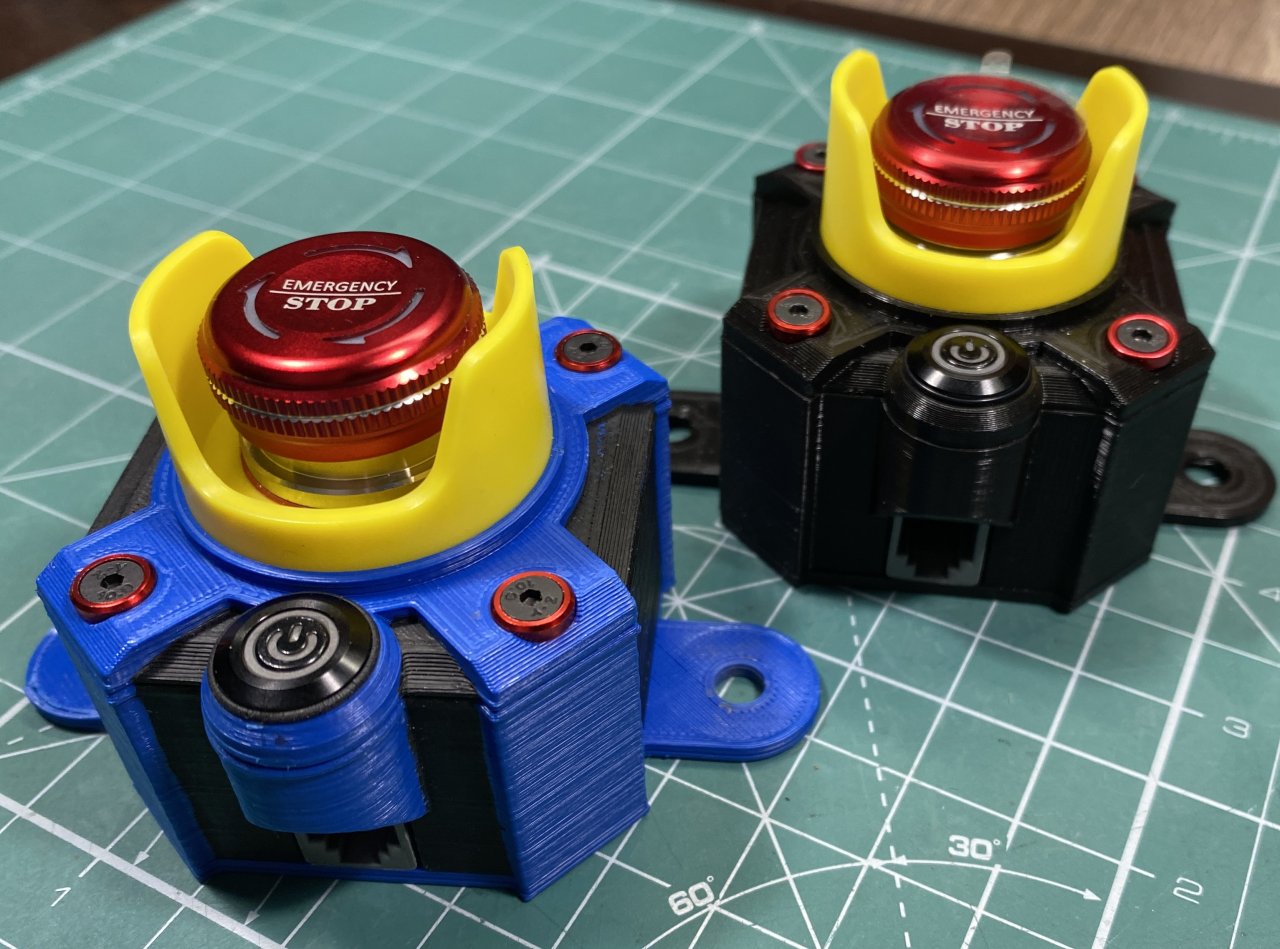

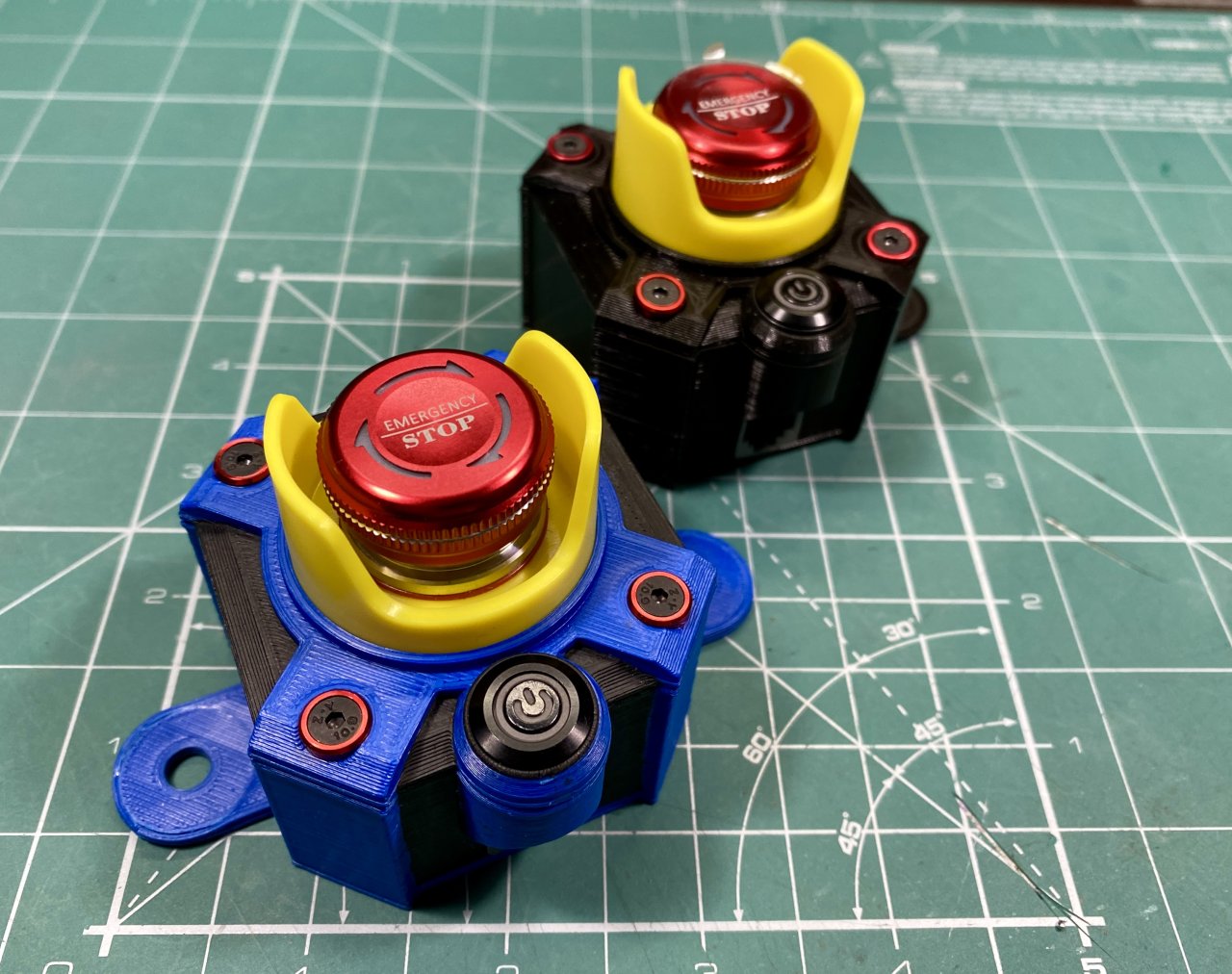

Simple to print DIY Kill-Switch for the Fanatec Podium DD1/DD2 wheelbases. Easy to assemble and most of all cheap! Designed to resemble the Podium wheelbase shape. Has built-in place for mounting RJ-11 female plug.
-

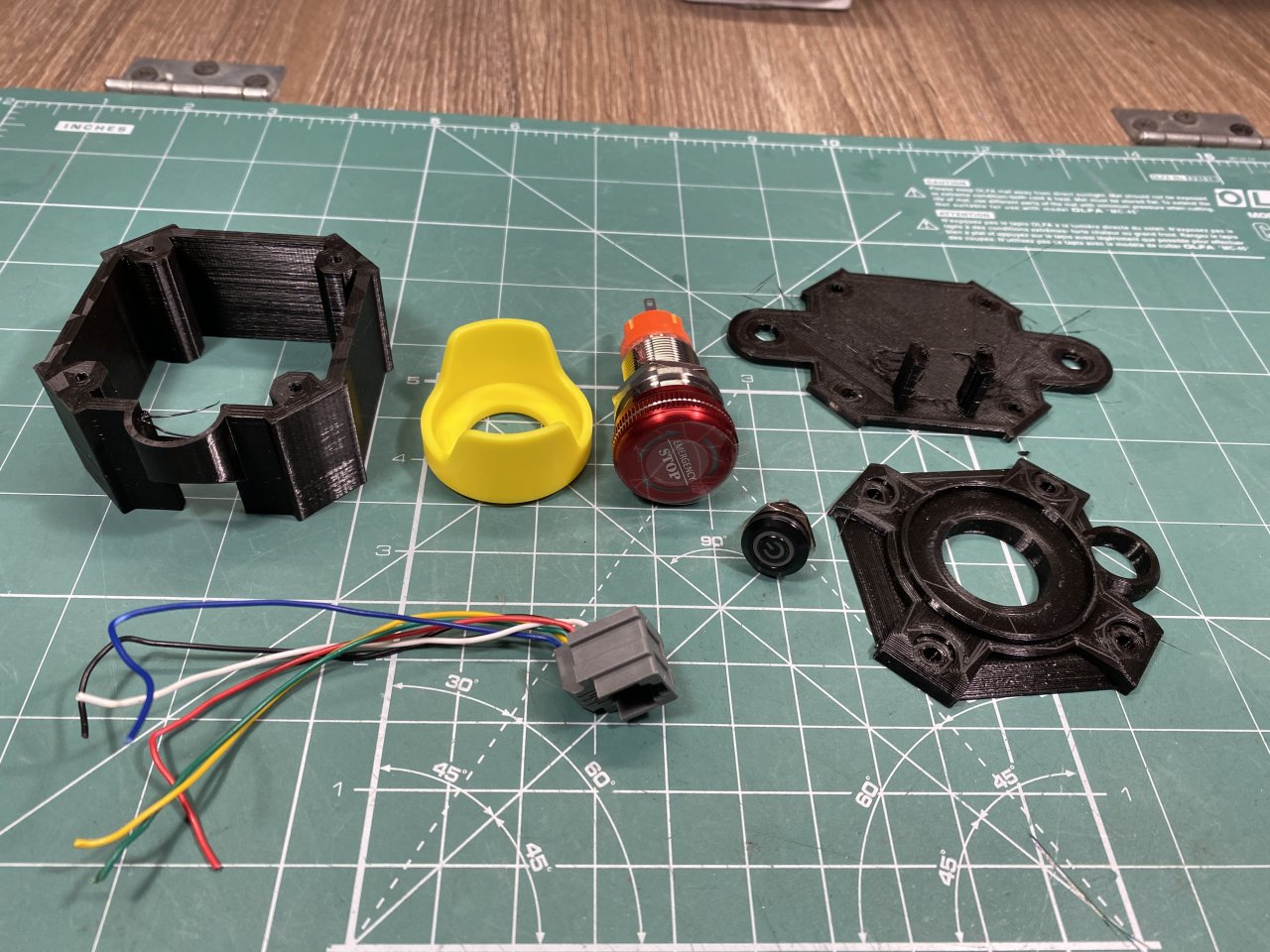

Parts needed:

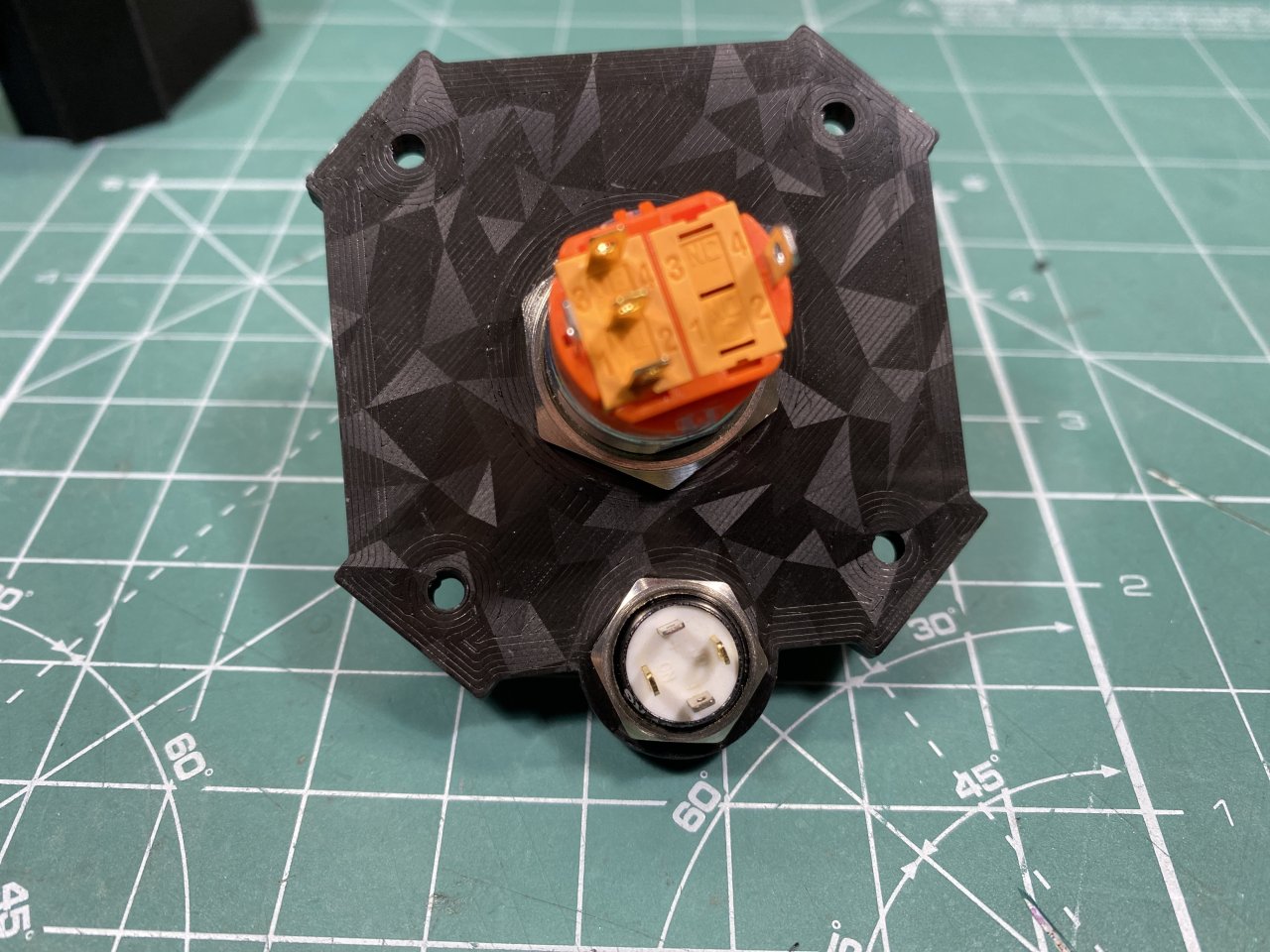

1. Emergency switch push button with LED + protector, 22mm: https://vi.aliexpress.com/item/4000829069129.html
2. Ultra short push button with LED, 12mm: https://vi.aliexpress.com/item/4000811422418.html
3. RJ11 female connector with leads, 6p6c: https://vi.aliexpress.com/item/1005005571068963
4. M3x16 tapered screws
5. M3 Alu Colored Washers: https://vi.aliexpress.com/item/32885496969
6. Rj11 cable to connect to wheelbase, straight, 6p6c: https://vi.aliexpress.com/item/1005004905599260.html
7. M6 mounting hardware to frame

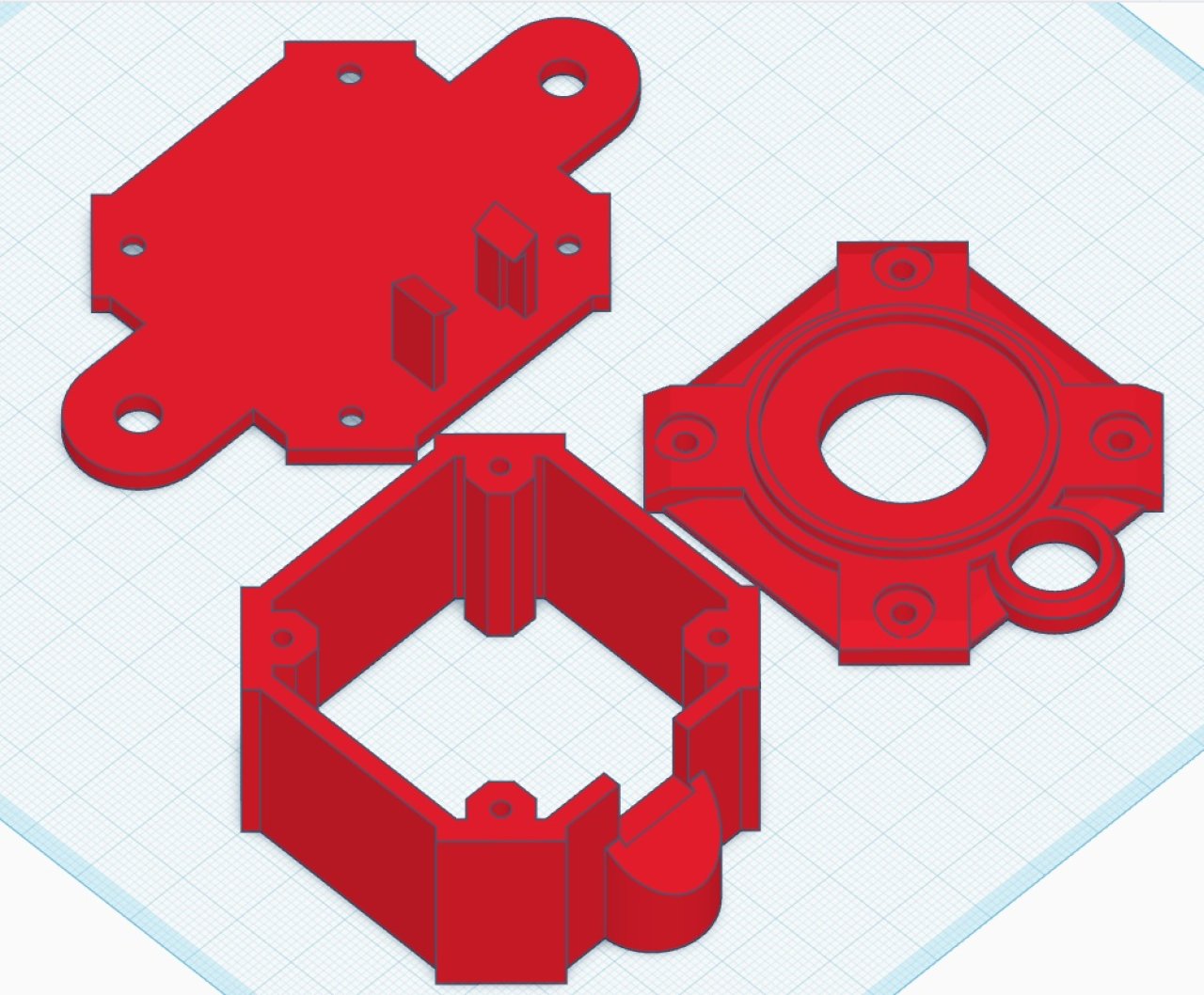

Print Settings:
All printed in PLA, no
supports, 5 walls/layers top+bottom.
Assembly instructions:

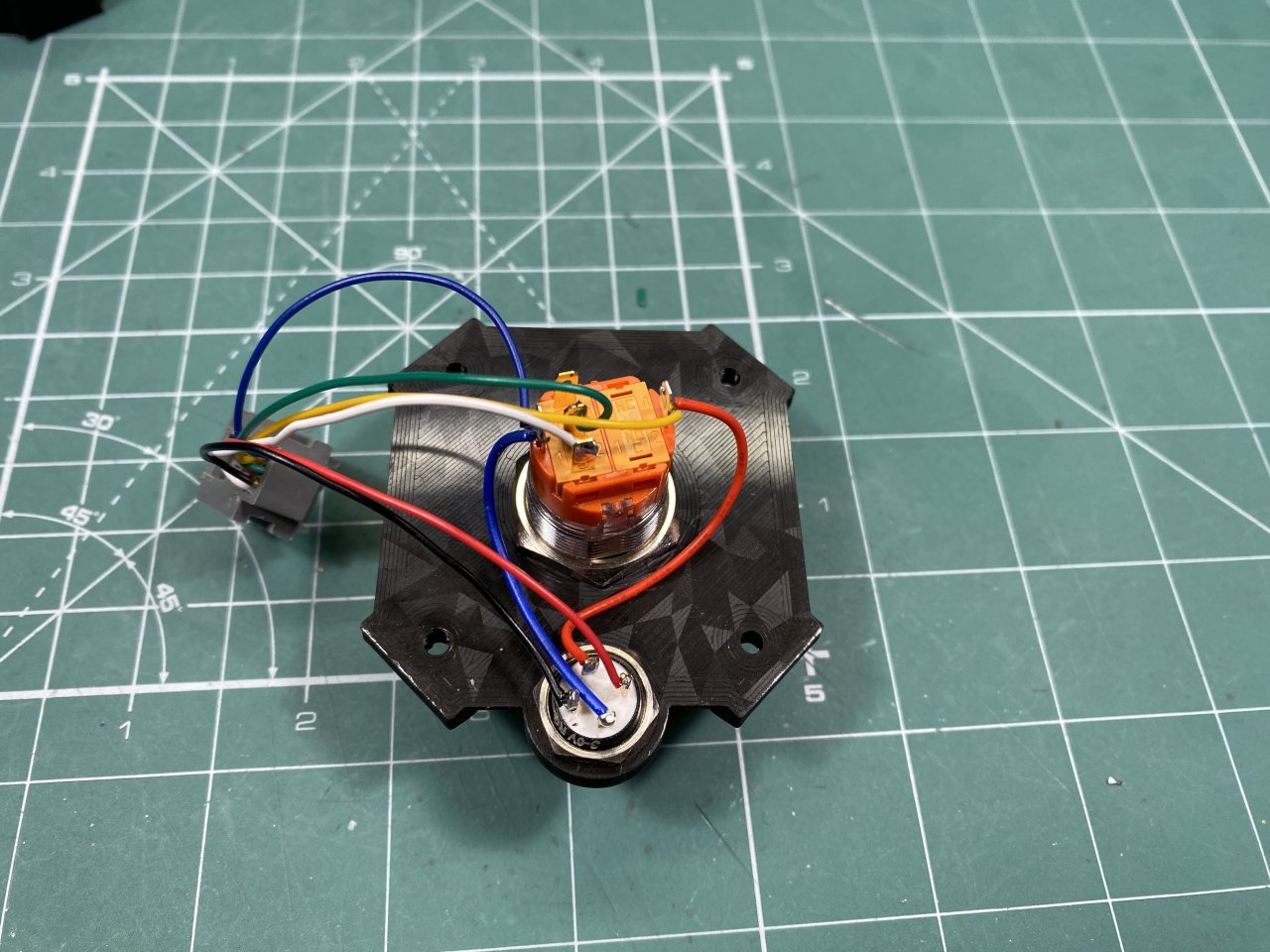

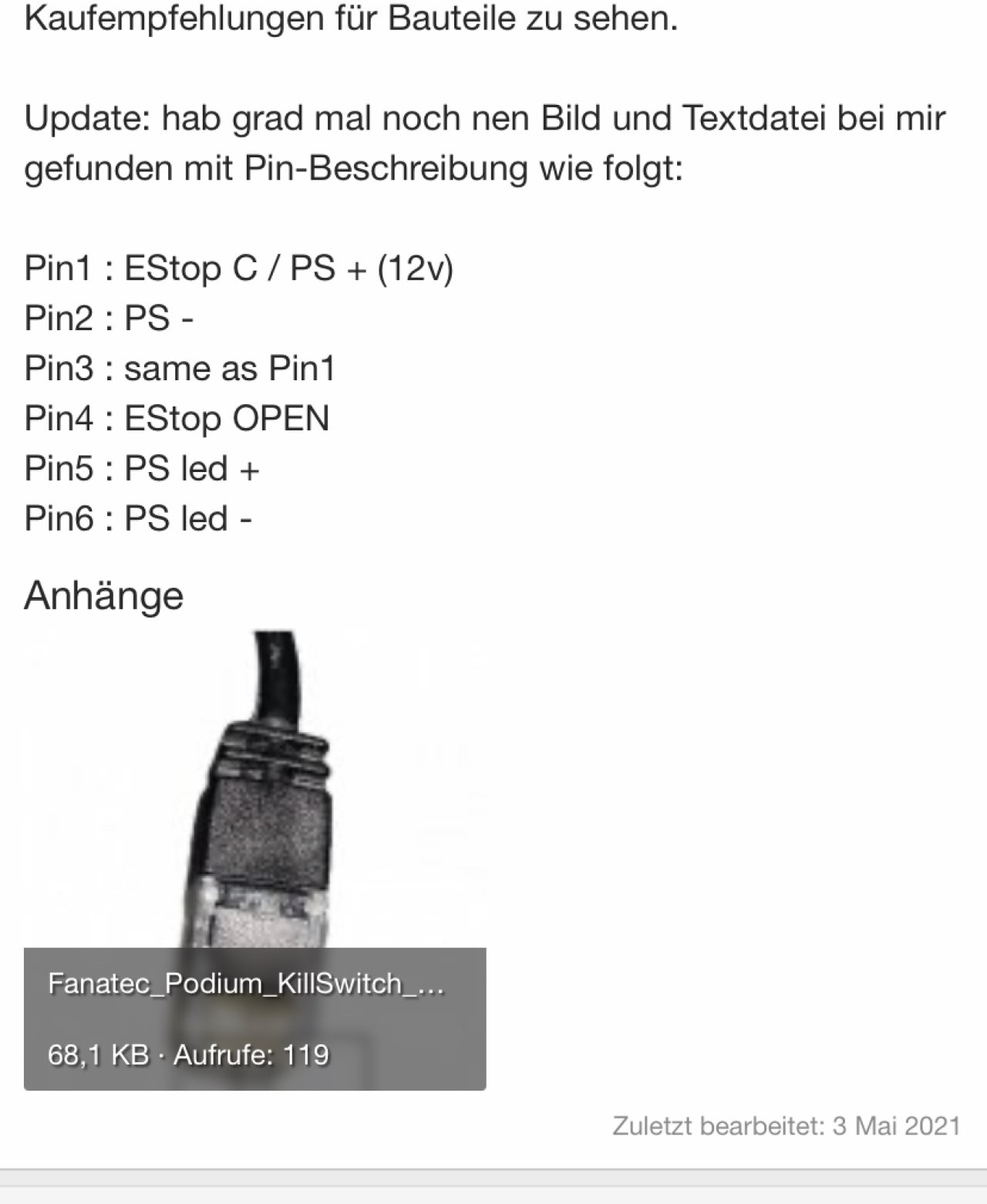

There are a lot of guides you can find around on how to wire it, linking one here in the button panel above.
M3 hardware screws directly in plastic.
