Dual Paddle Shifter with Dual Clutch
11 December 2022 | Hits: 7645 | Downloads: 407 | Sim Gear | Free | Digital
-

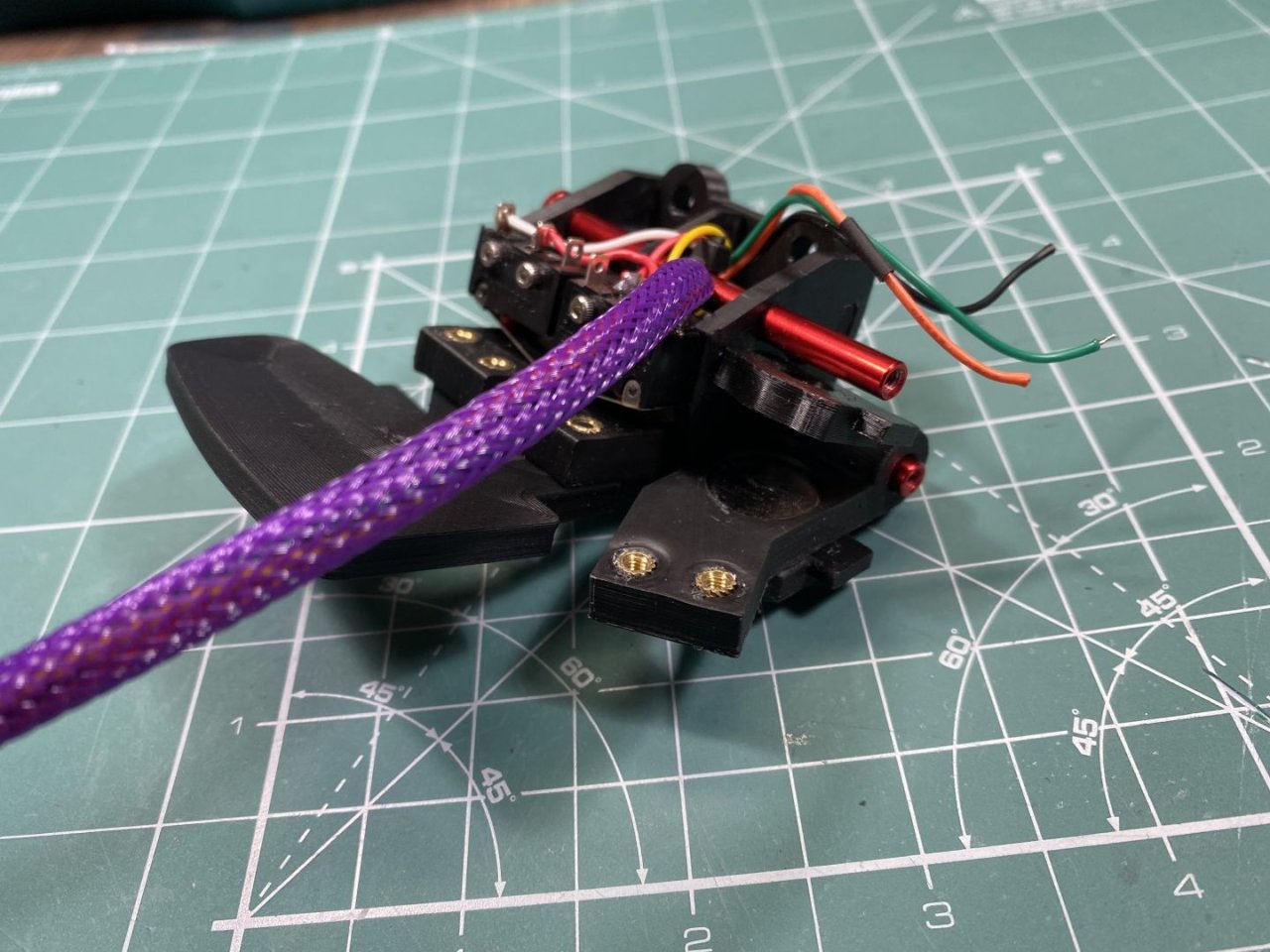

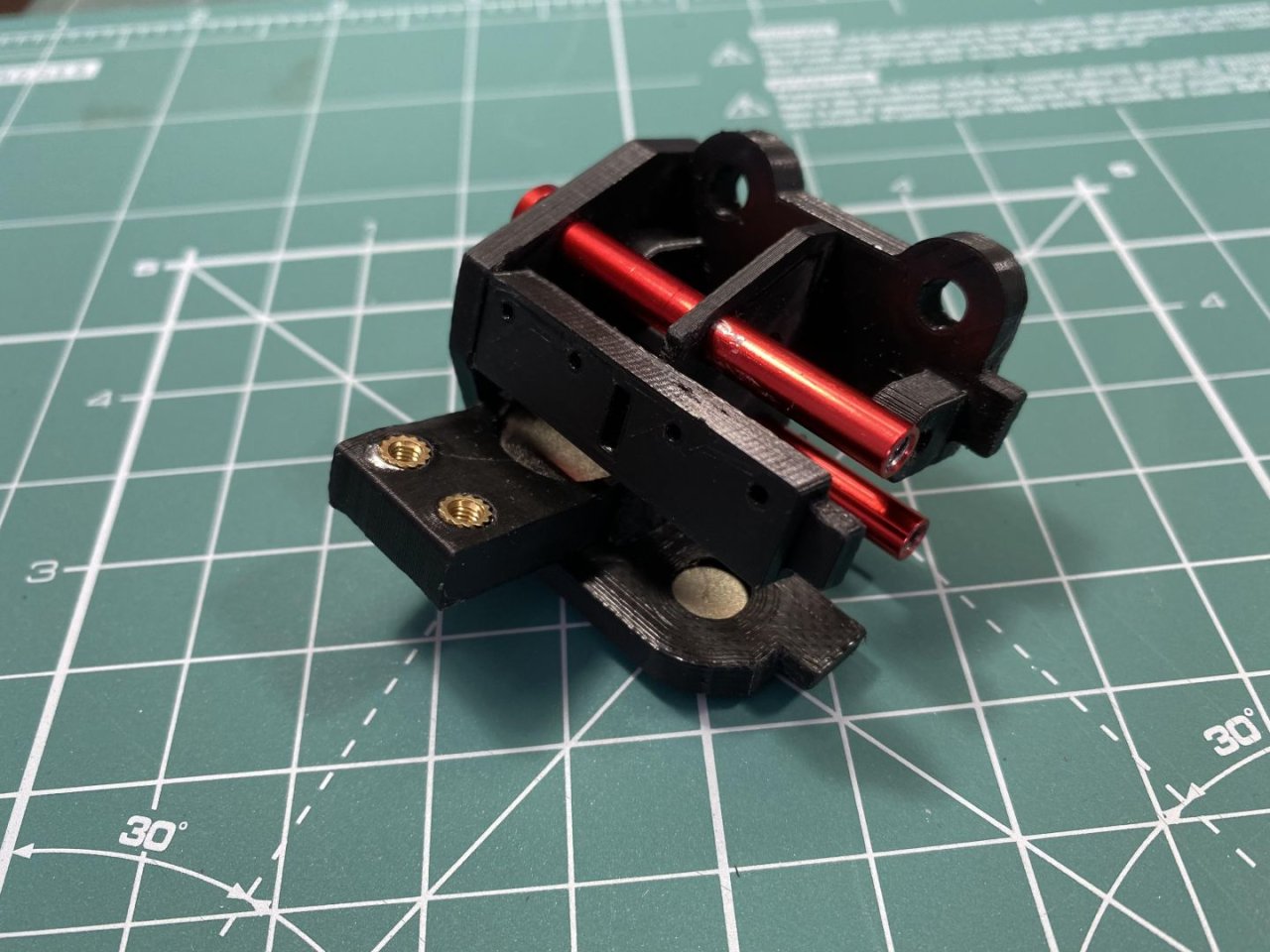

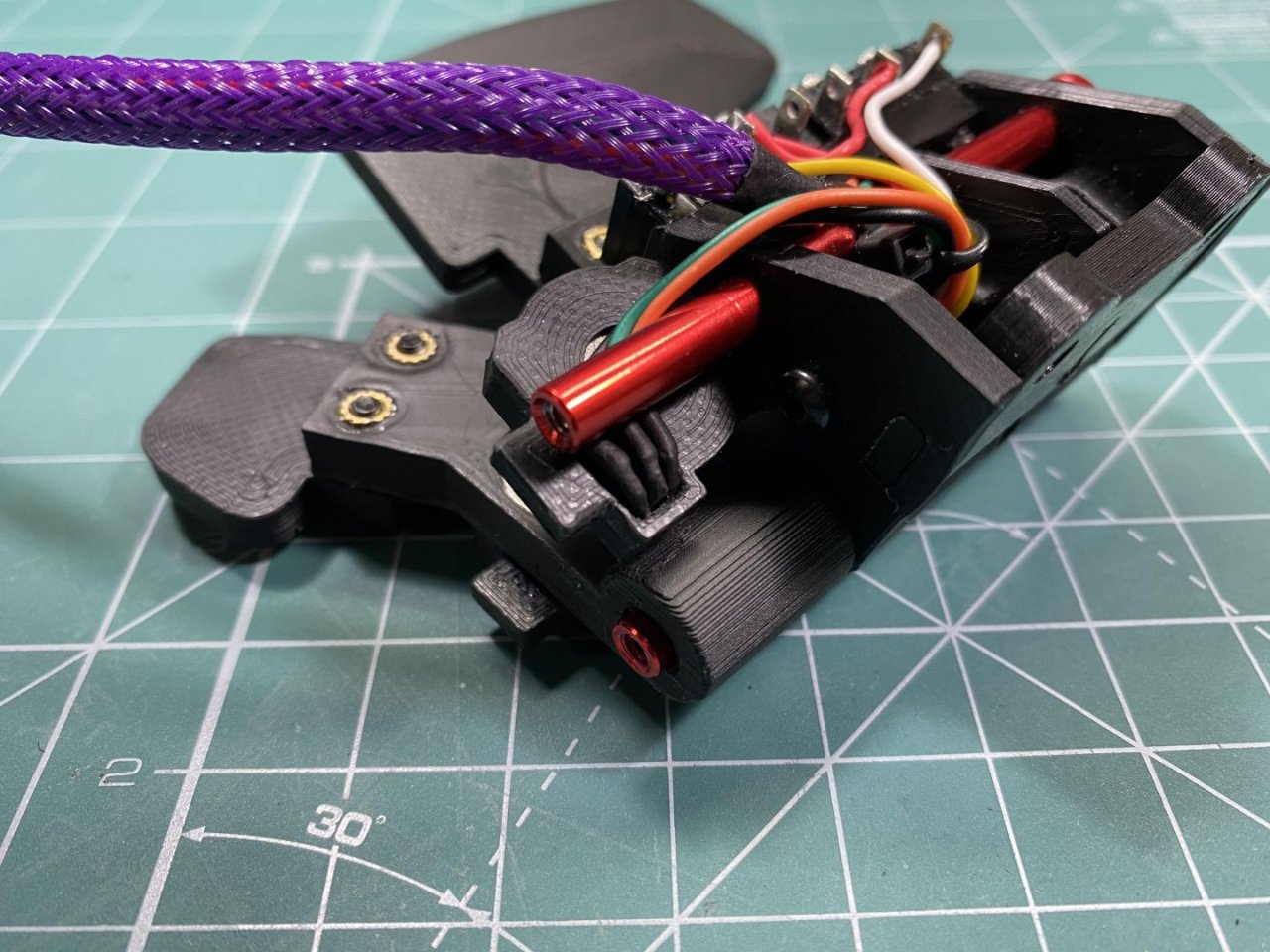

Extended my Magnetic Paddle Shifter design to feature Dual Clutch and additional buttons. Clutch utilizes Hall sensor and magnetic sprint (2 magnets with reverse polarity).

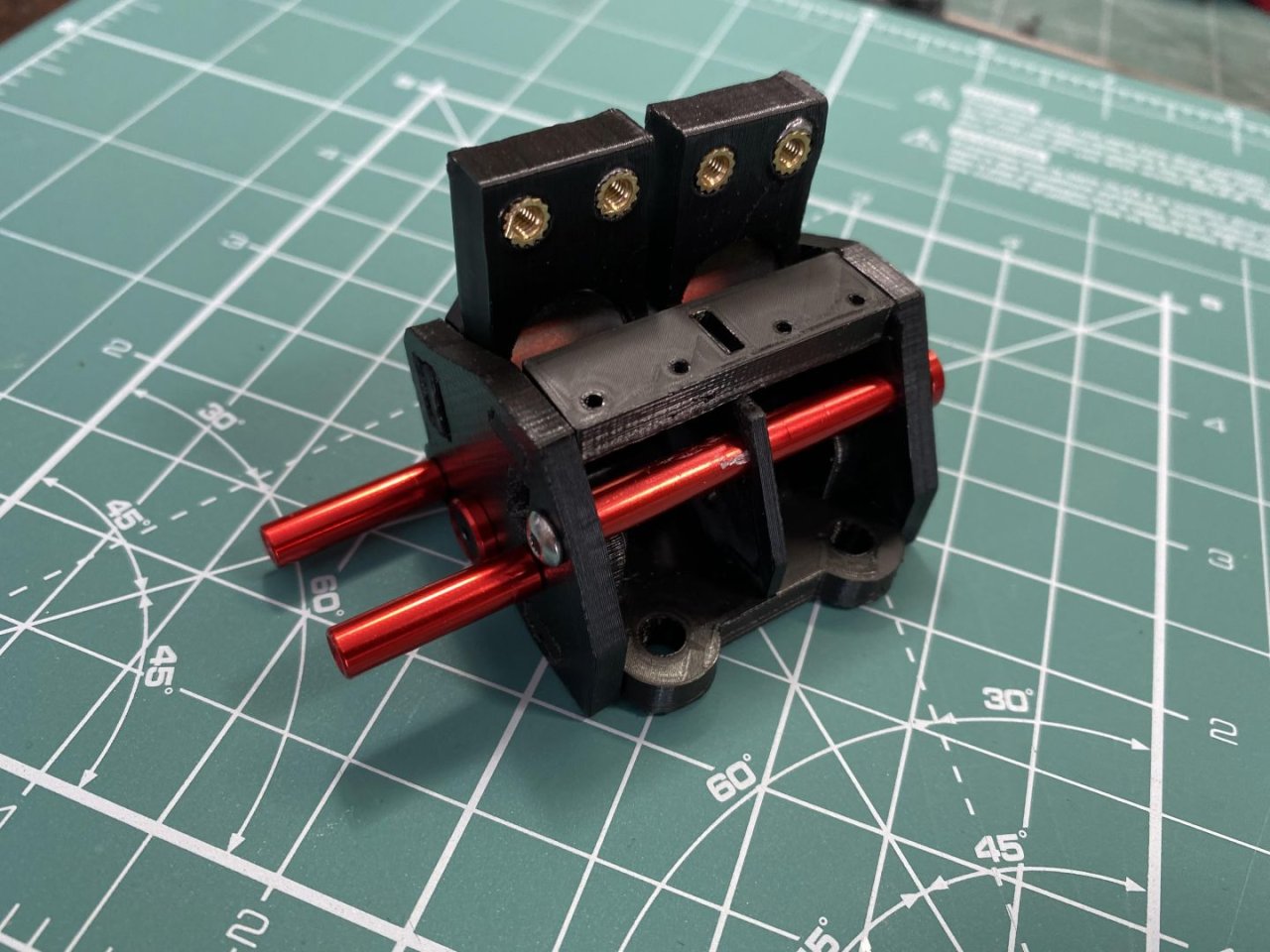

Shifter has short-to-medium throw, added second magnet for additional strength.Paddles are from my Bentley GT3 Replica design.

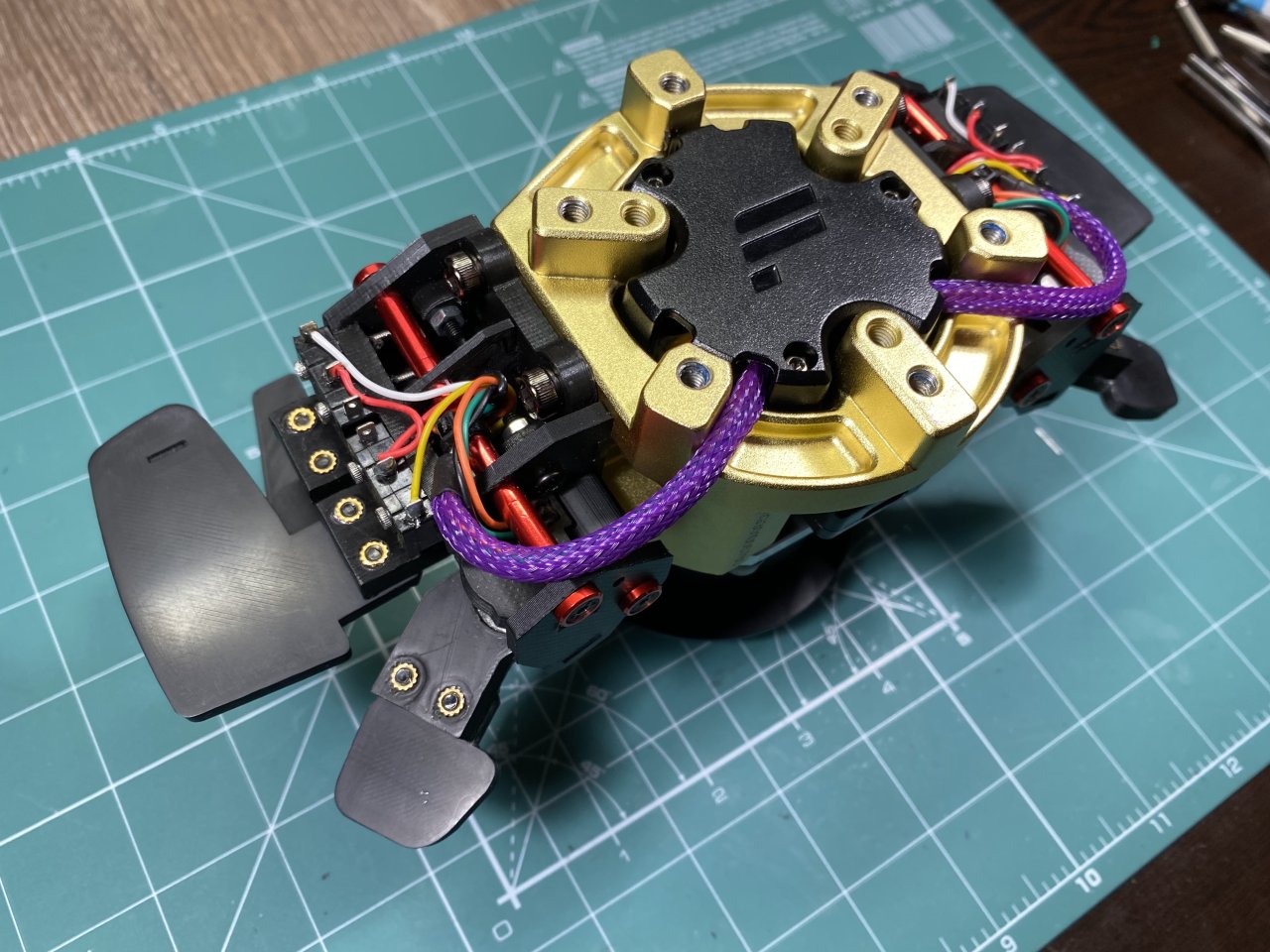

The whole assembly is very stable and feels extremely nice. Works well directly with Fanatec Podium hub, can be configured with Arduino as well.

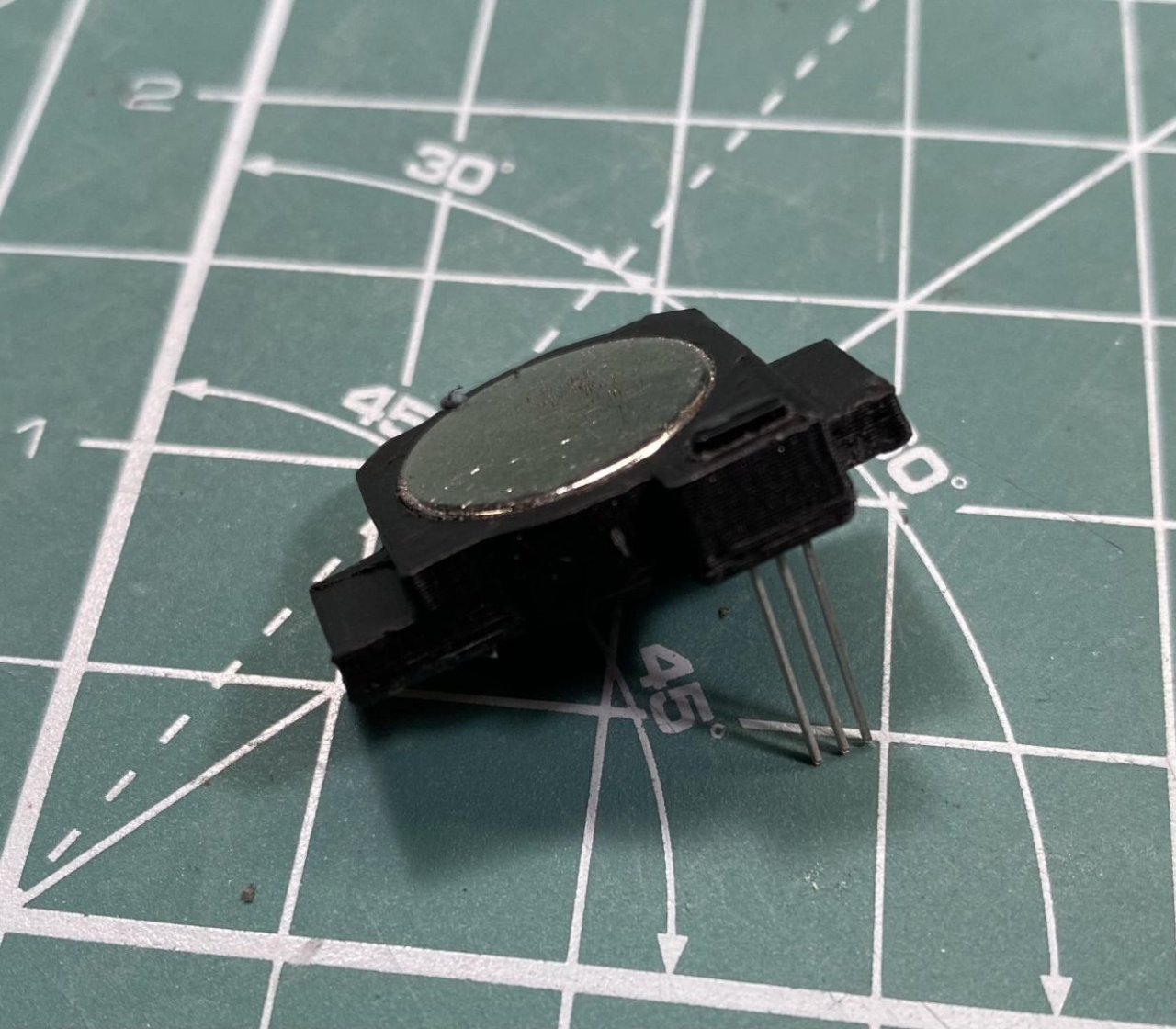

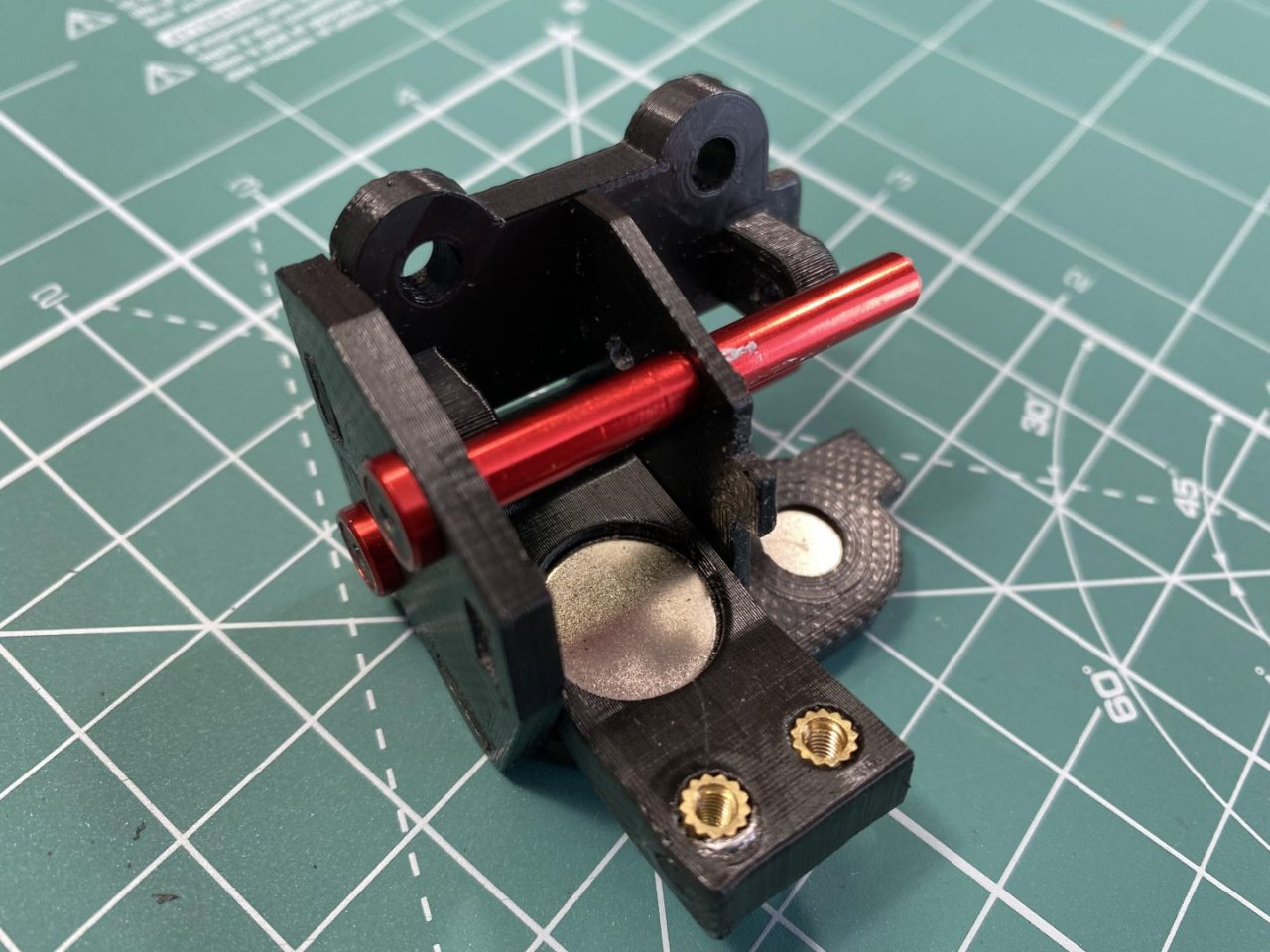

All openings are very tight to assure stable fit, but with my printed they did not require almost any post processing. Remember to reverse polarity on the bottom clutch magnet - it has to push the paddle away. Also keep in mind hall sensor has polarity - it is possible that you will need to flip all magnets if it does not work.
-
Parts needed:

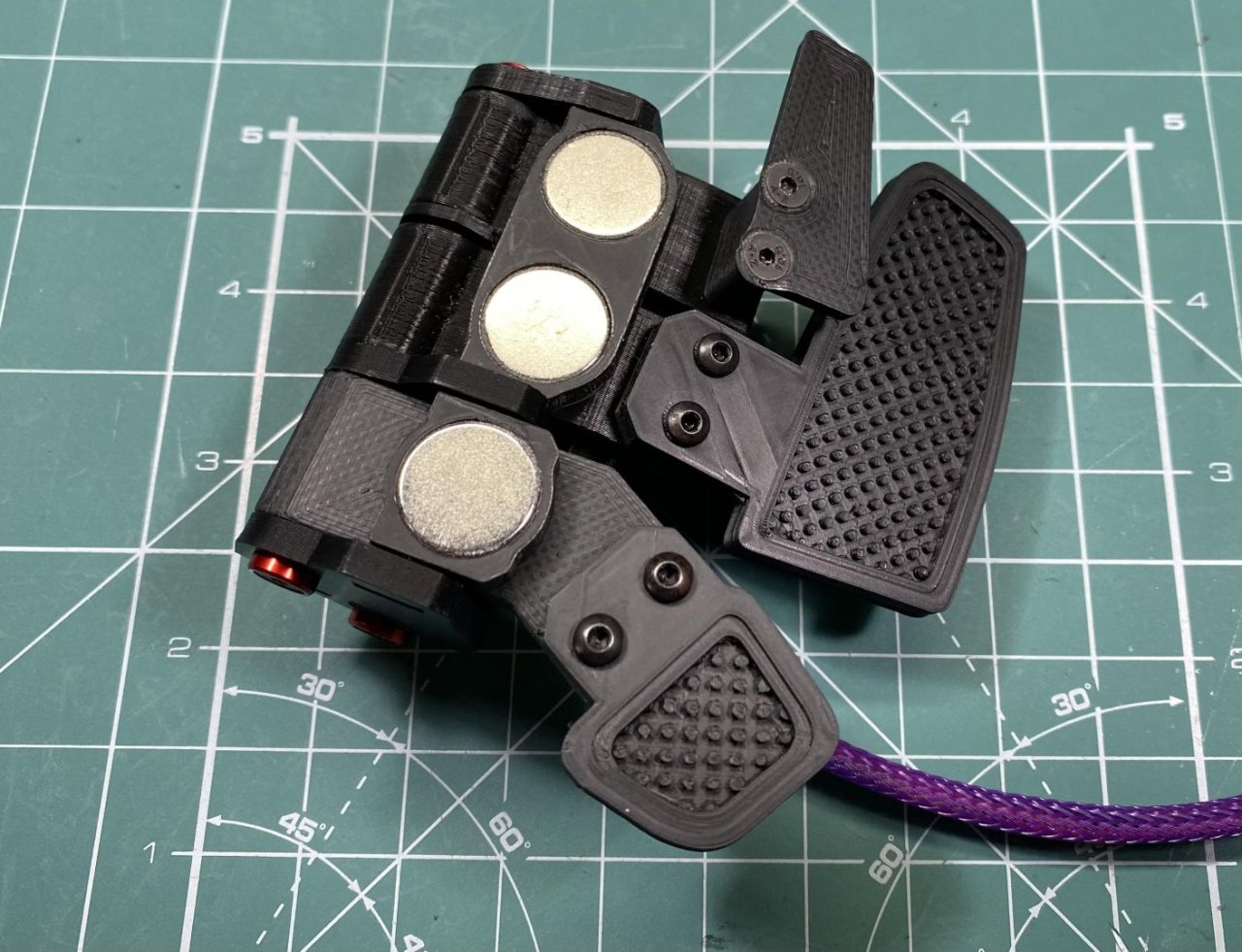

- Neodym Magnets 15x4mm - 14-16x (depending if you want more magnets on shifter for stronger feel)

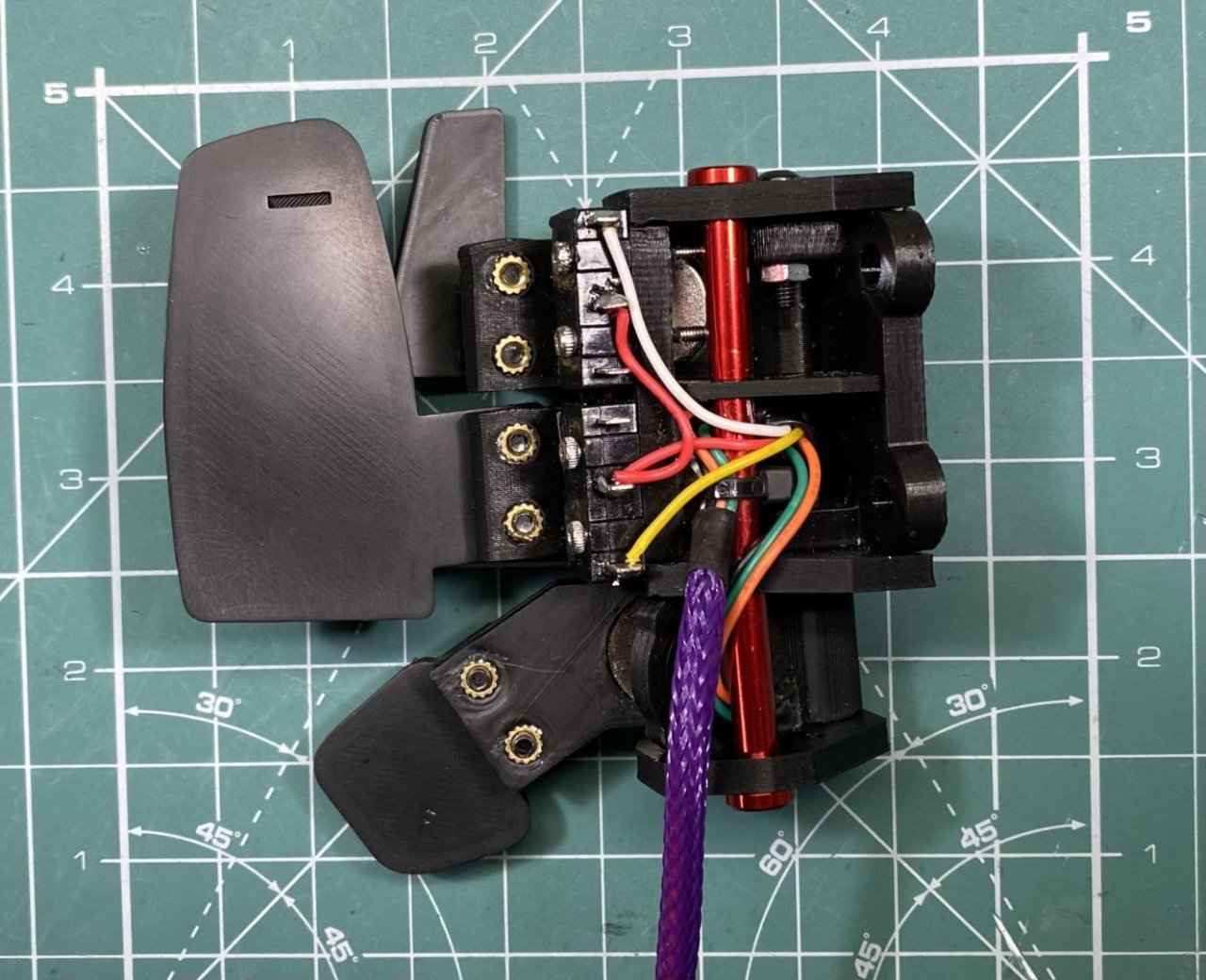

- Omron micro switch or clone (Micro Switch 2/3Pin NO/NC Mini Limit Switch) with straight handle - 4x
- M3 Standoffs (columns, rods, struts, spacers for RC), (o.d. 5mm), 18mm long - 12x
- M3 Alu washers for slick look (Countersunk Head Bolt Washers Gasket), not so needed - 8x
- M3 countersunk screws for clutch side assembly, I used 16mm ones - 4x
- M3x50mm countersunk screws - for shifter assembly, they hold together the three standoffs in row - 4x
- M3x12 round head screws for shifter and clutch paddles, mounting baseplate - 12x
- M2 screws for switch mounting, at lease 16mm - 8x
- M3 nuts for holding mount plate
- M3 brass 3D print inserts, 4.2mm o.d., 6mm length - for paddles/flat base - 12-20x
- Magnetic Hall Sensor SS49E - 2x

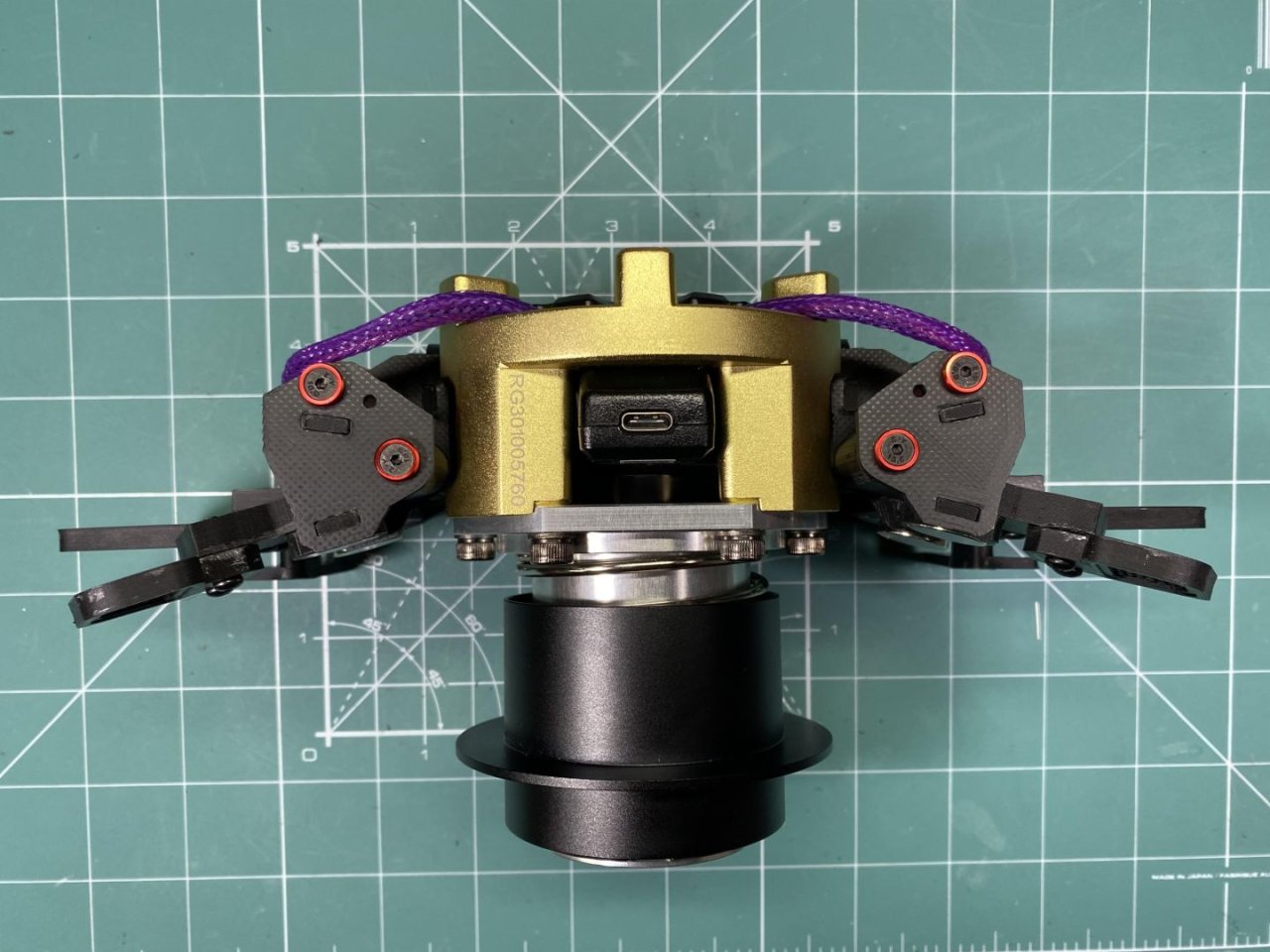

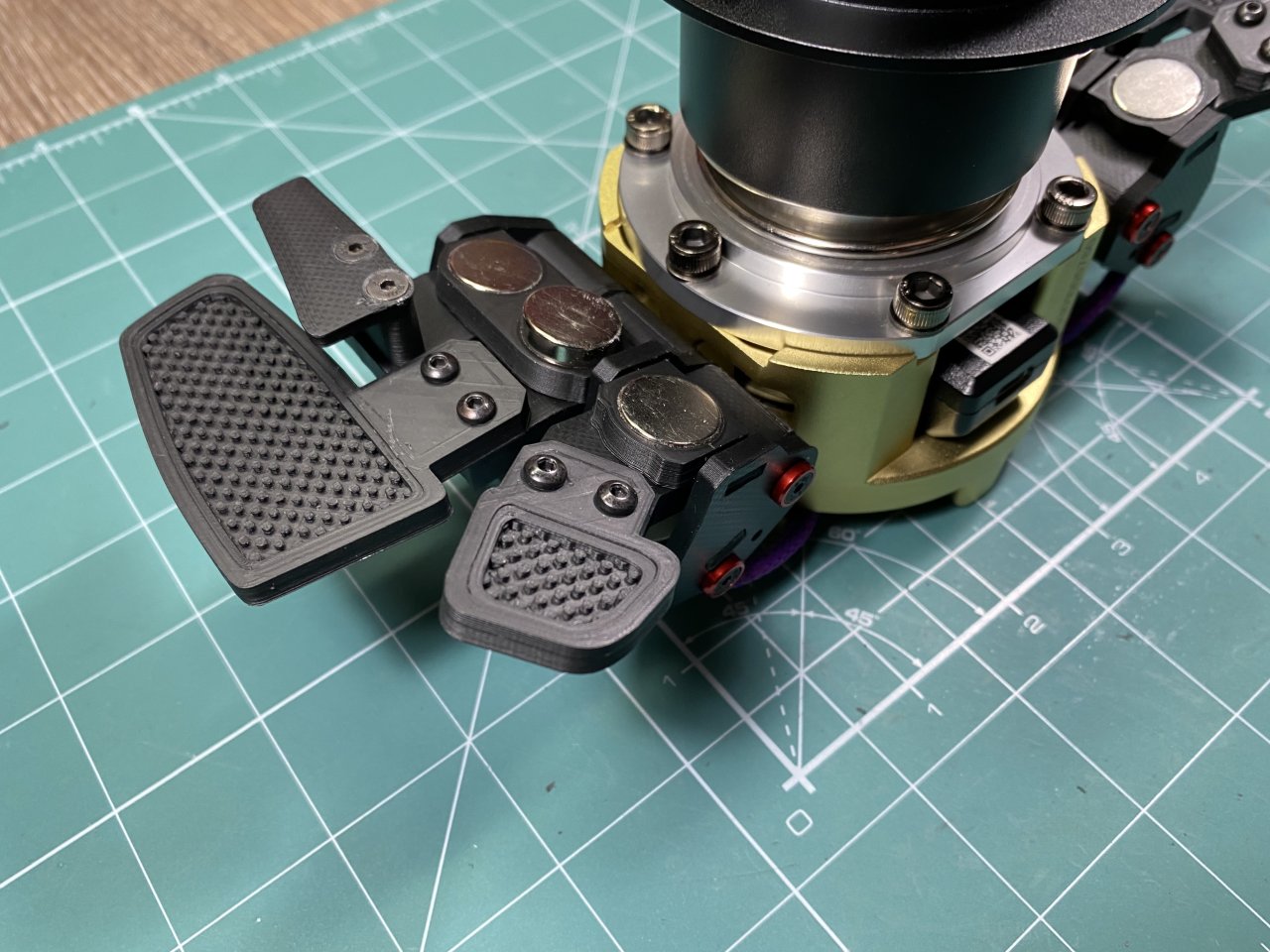

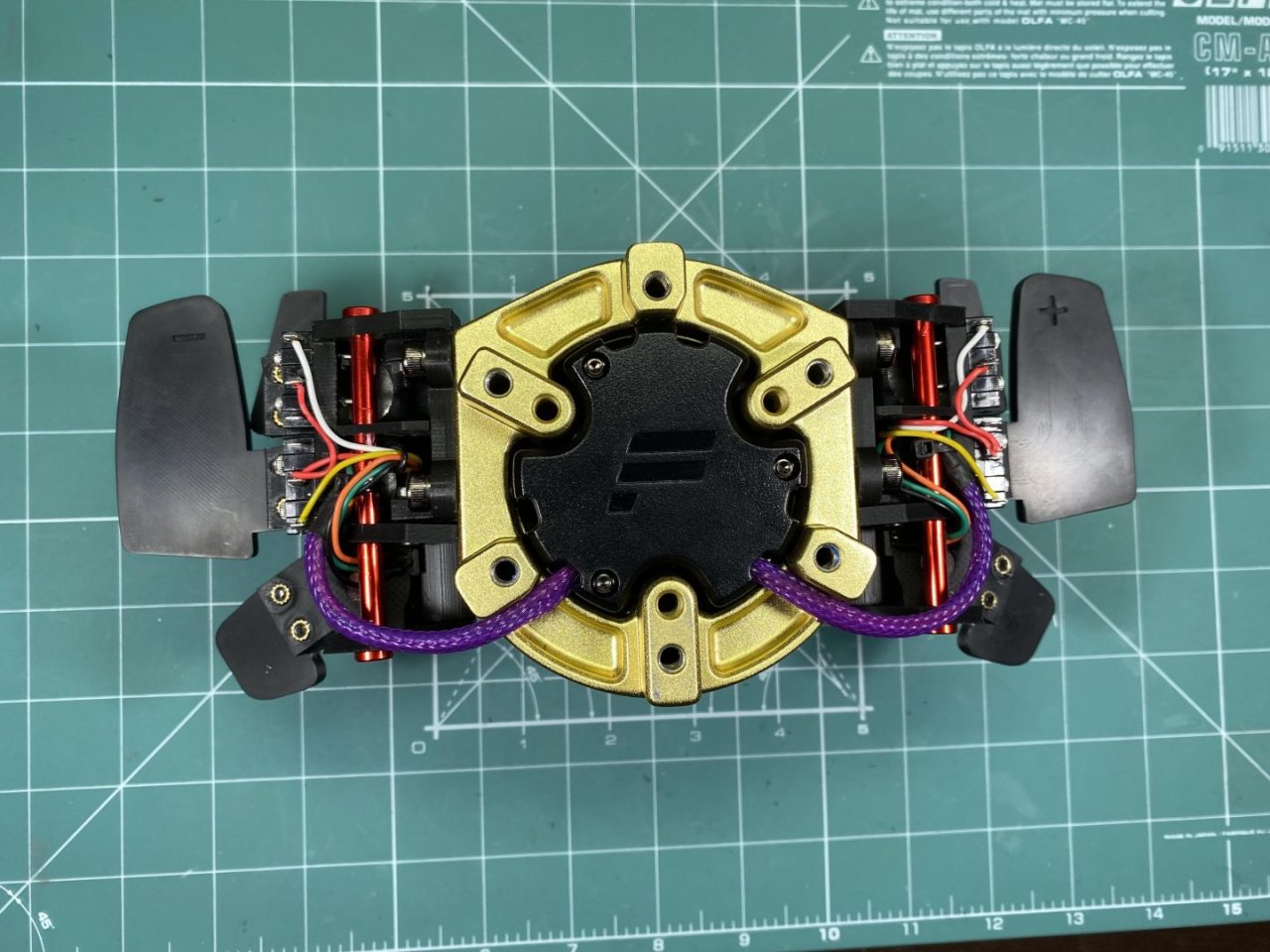

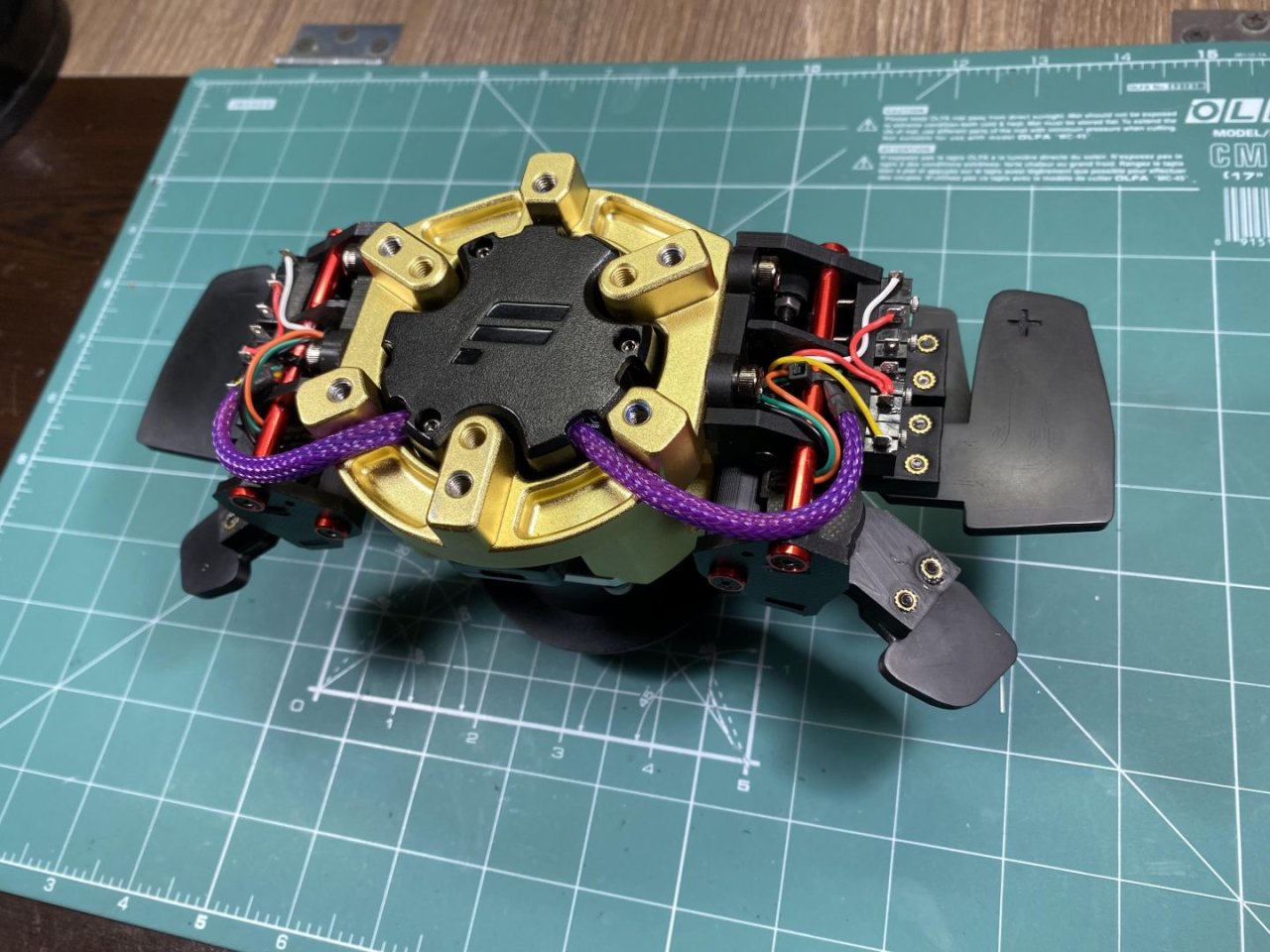

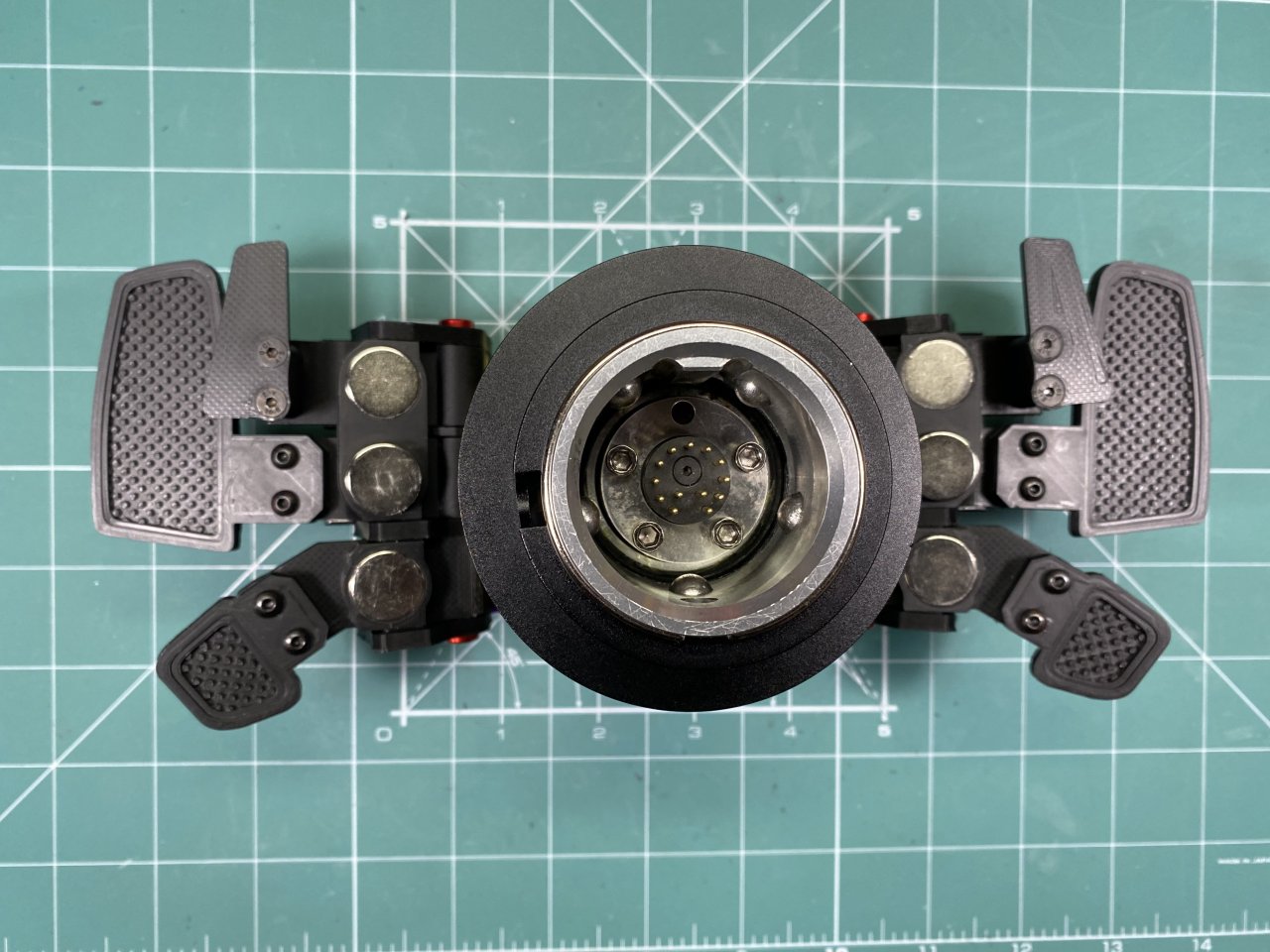

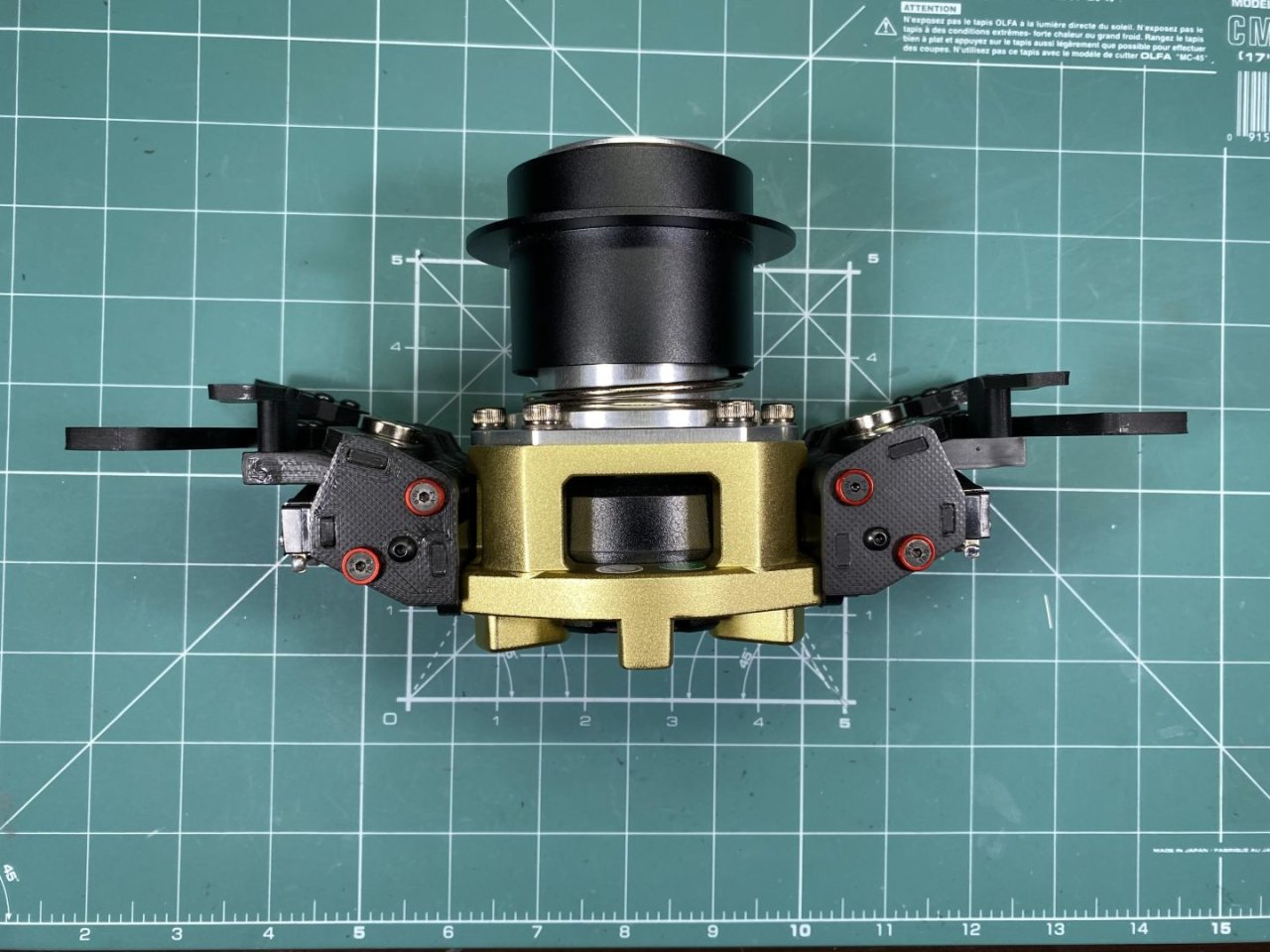

Included are two mounting options - Fanatec hubs/wheels and flat button plate (bottom mounted).
N.B.! - Flat mount was not tested, it is meant for brass inserts as well. I do not see a reason it shouldn't work though...
-
