Heusinkveld Handbrake Handle Lever
11 January 2024 | Hits: 2544 | Downloads: 318 | Sim Gear | Free | Digital
-

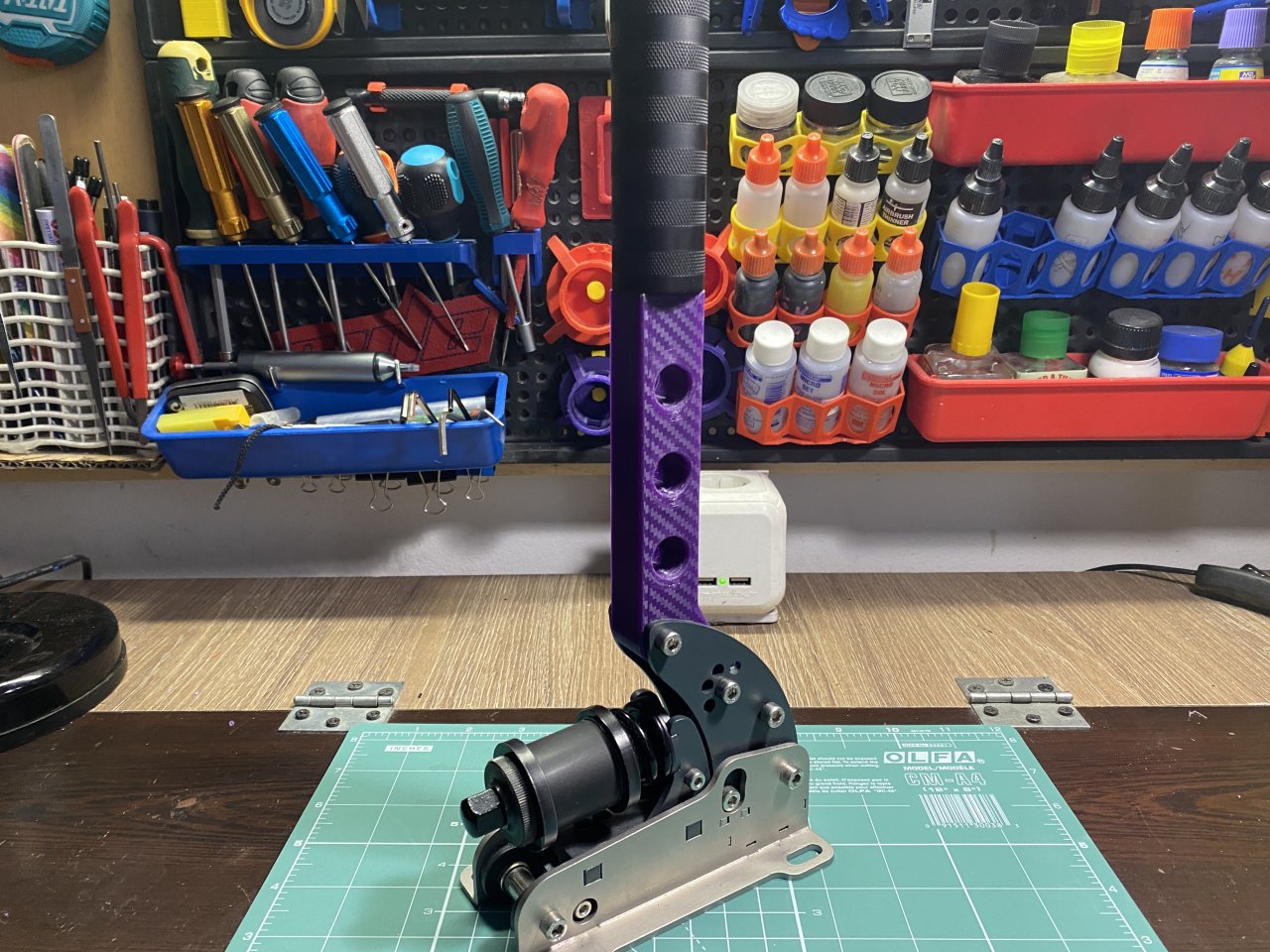

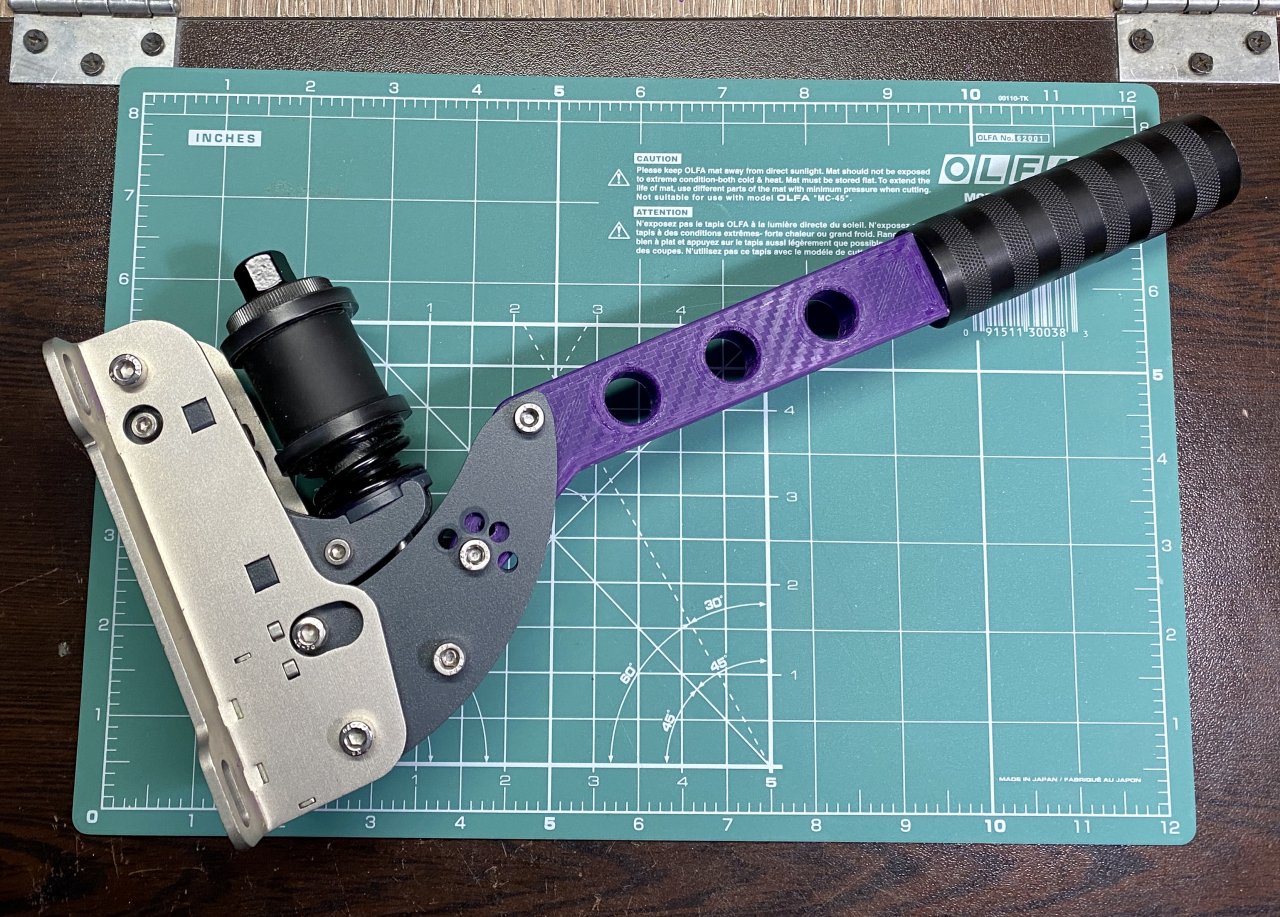

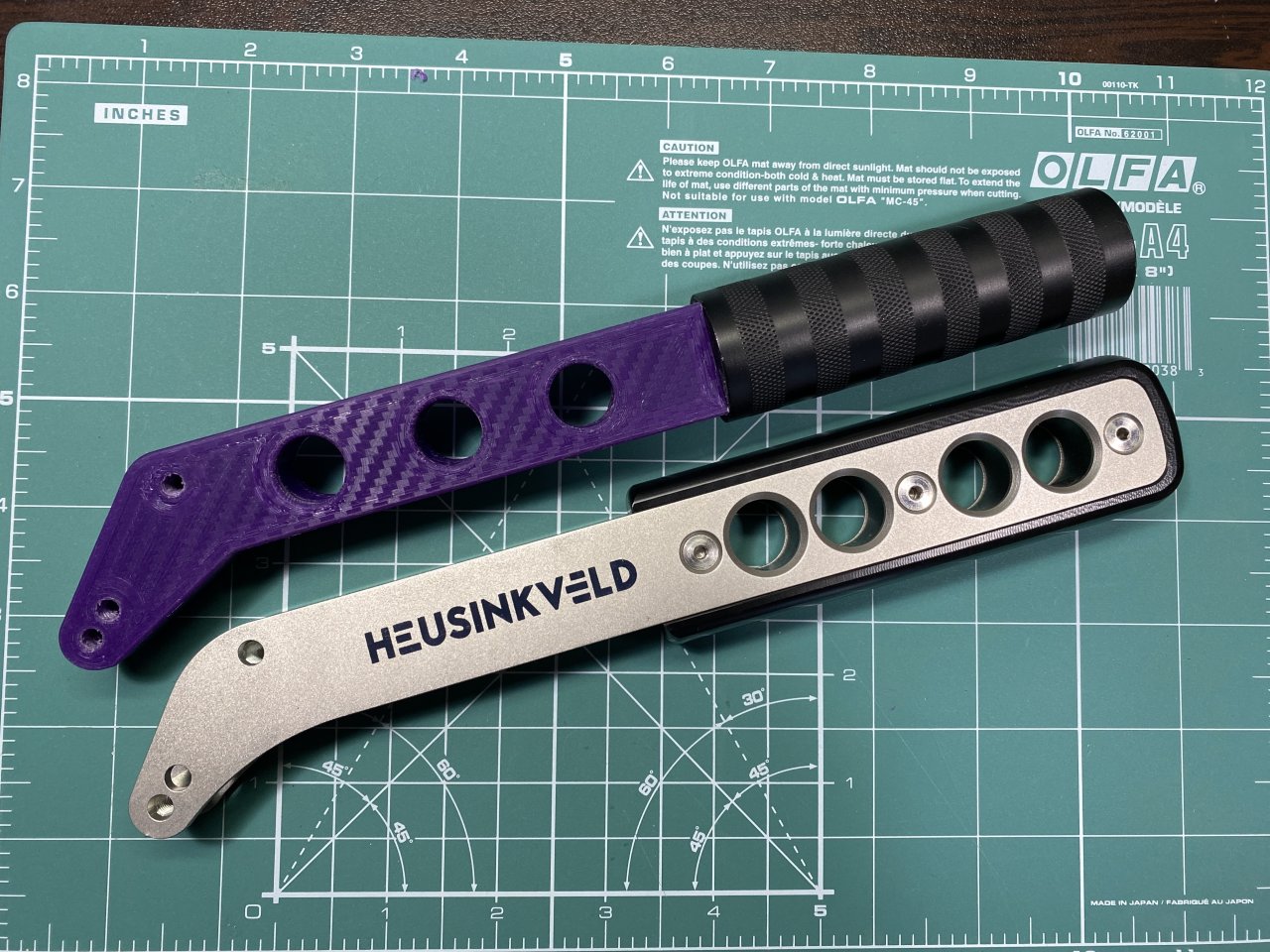

Custom Lever for the Heusinkveld Handbrake.

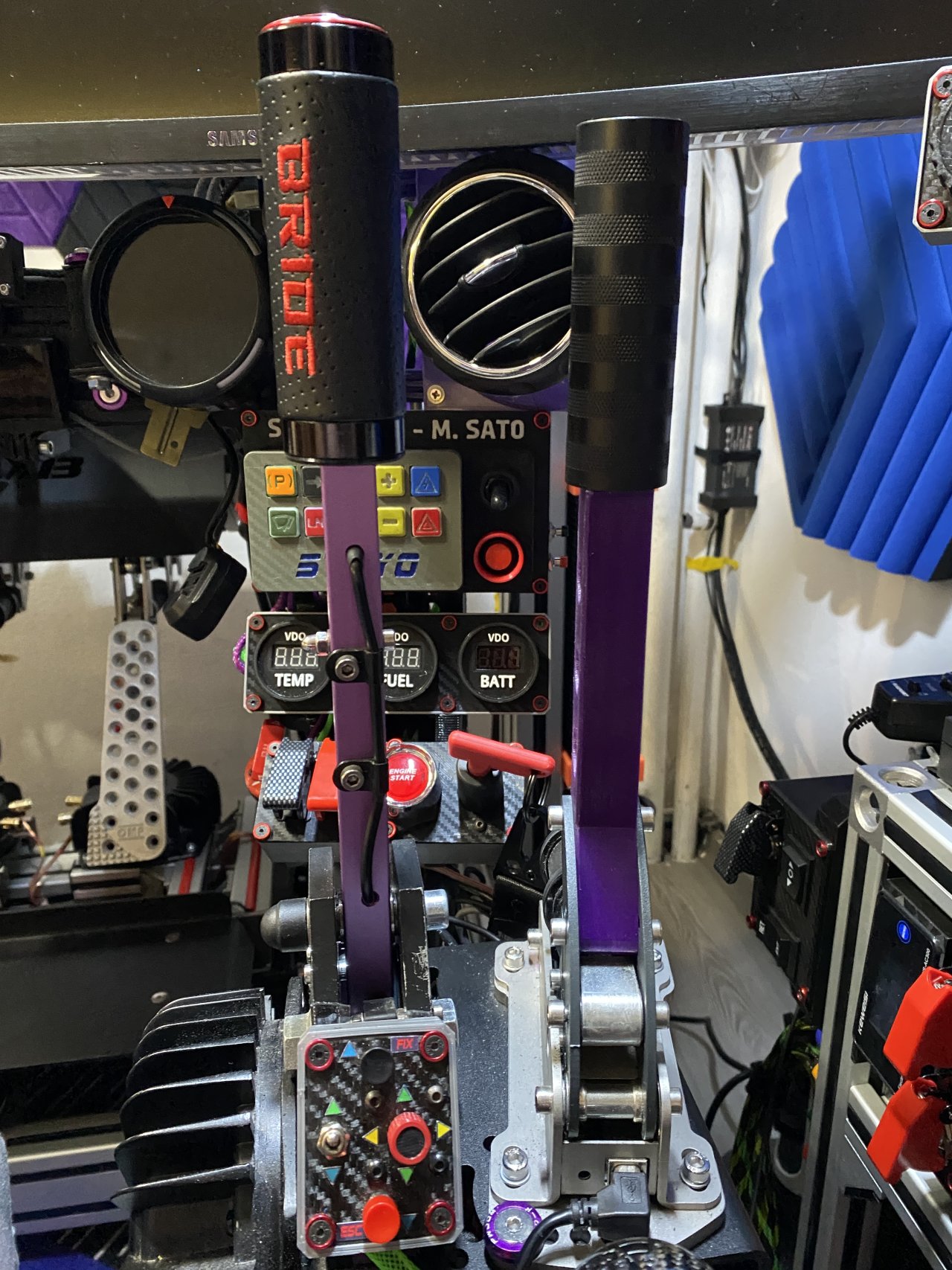

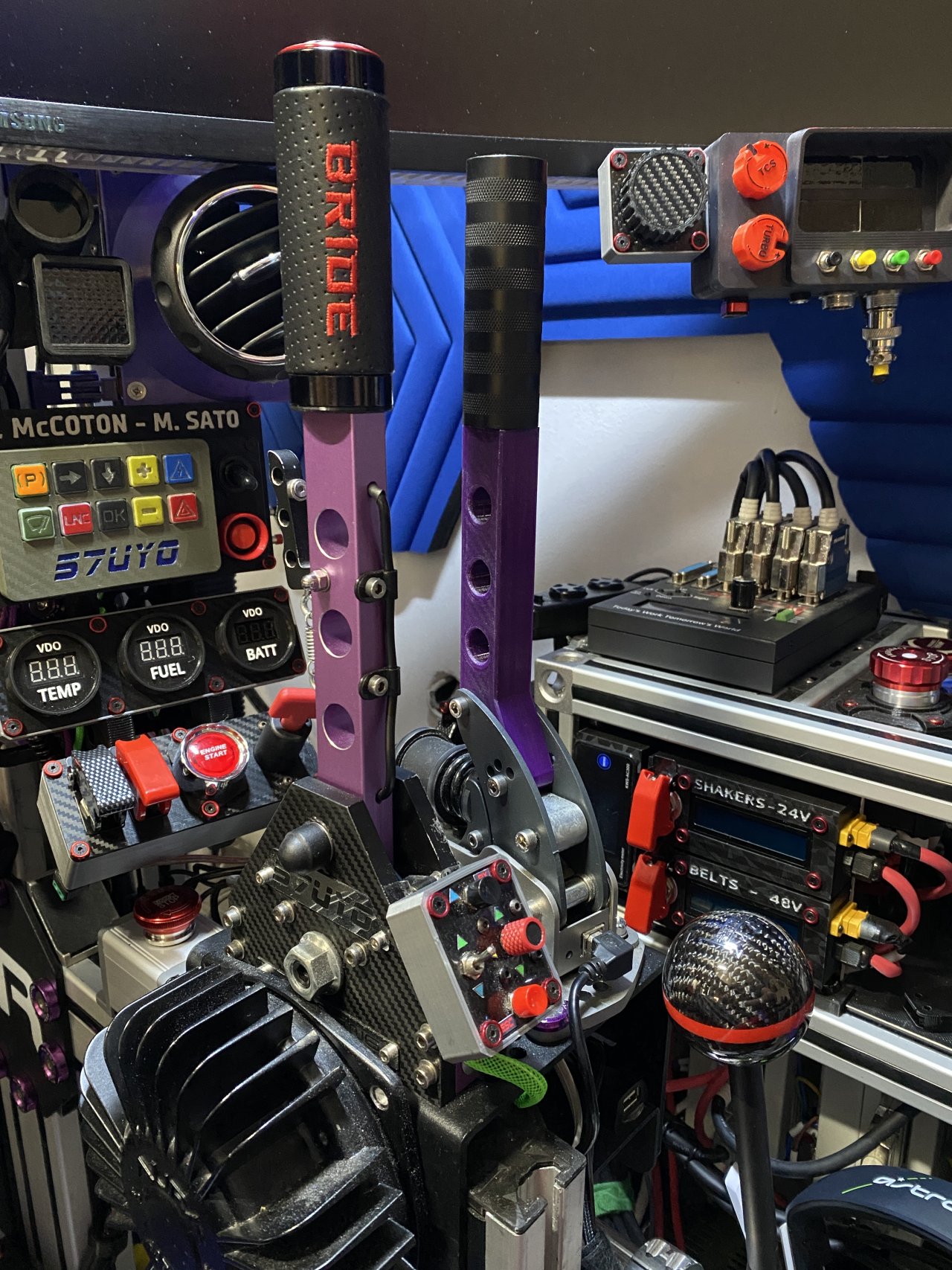

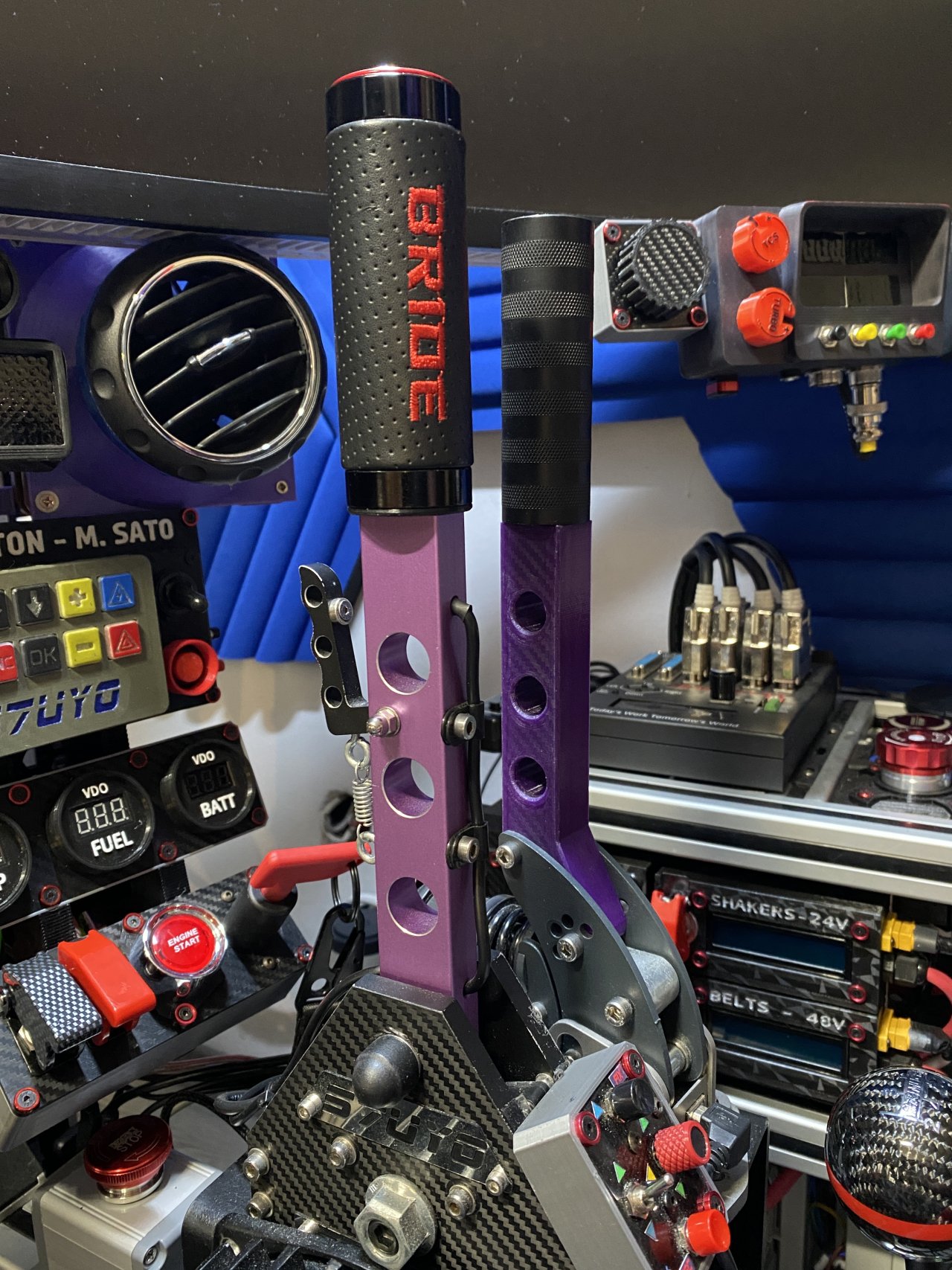

Designed to compliment my SG Racing Pro Sequential Shifter, but can be easily changed according to your preferences - just hit the "Remix" button to get the source.

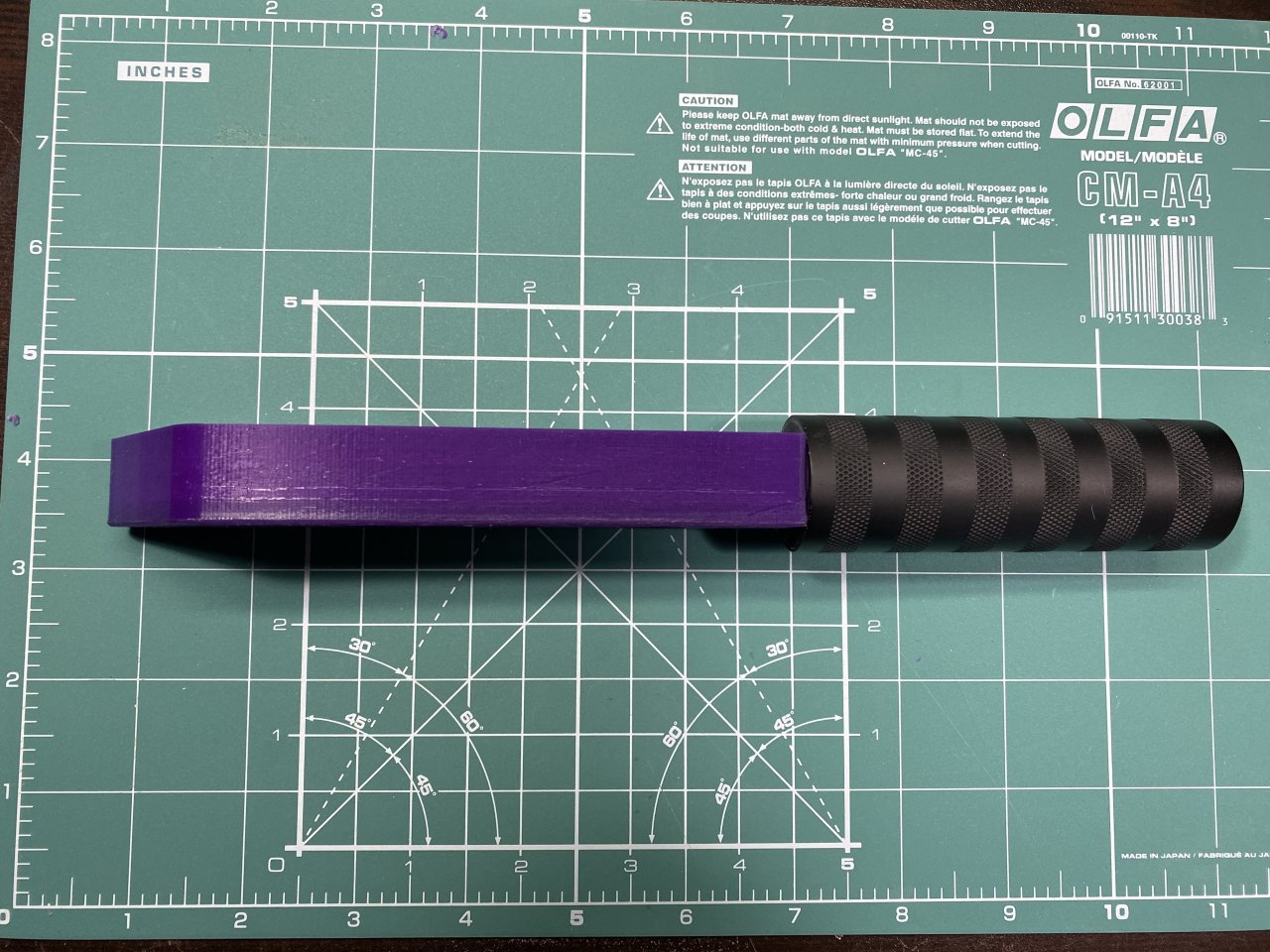

Interface with handle is m8 threaded rod. I am using the SG handle, as I put custom "Bride" one on the shifter. You can use whatever handbrake handle you fancy.

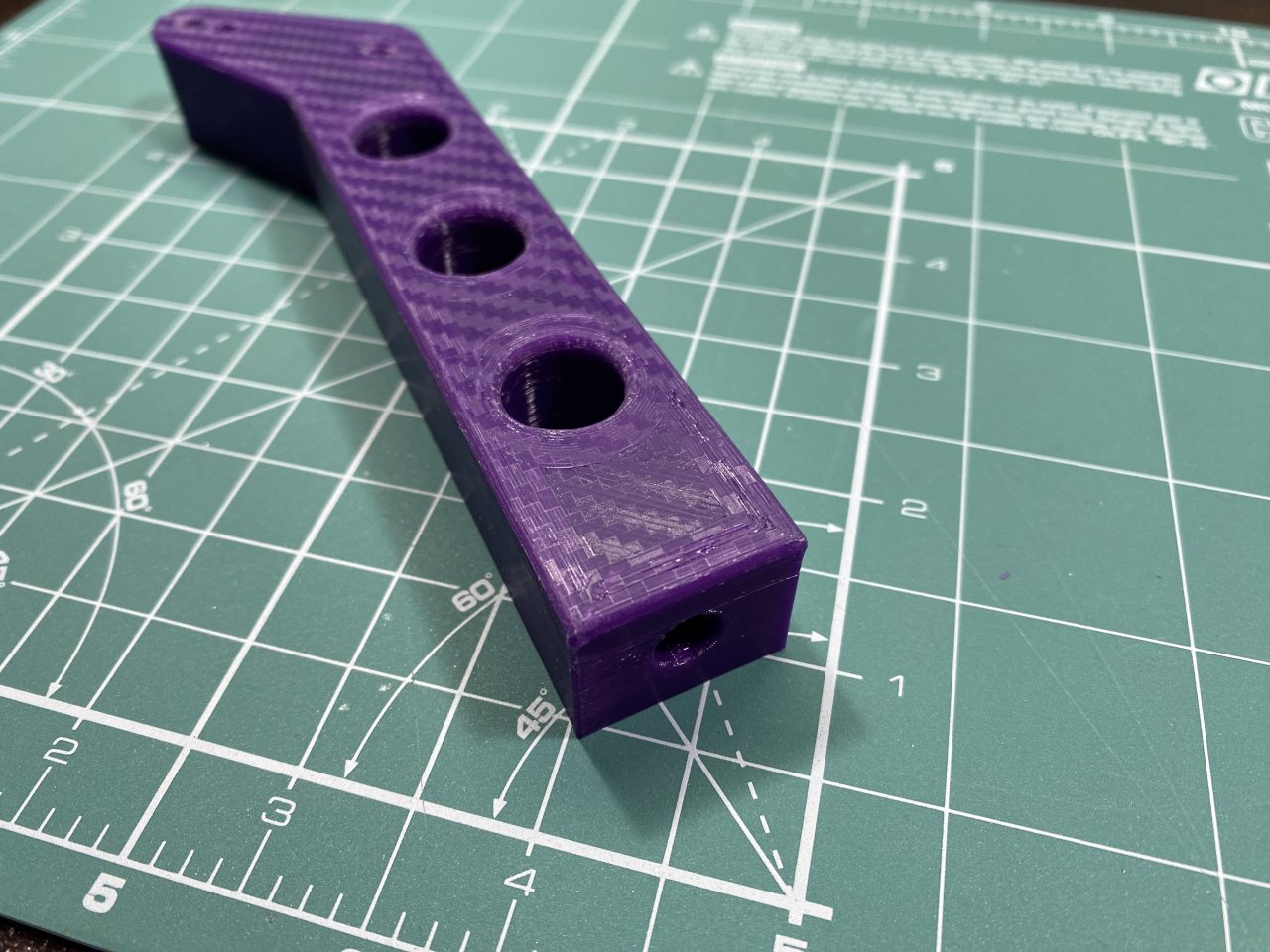

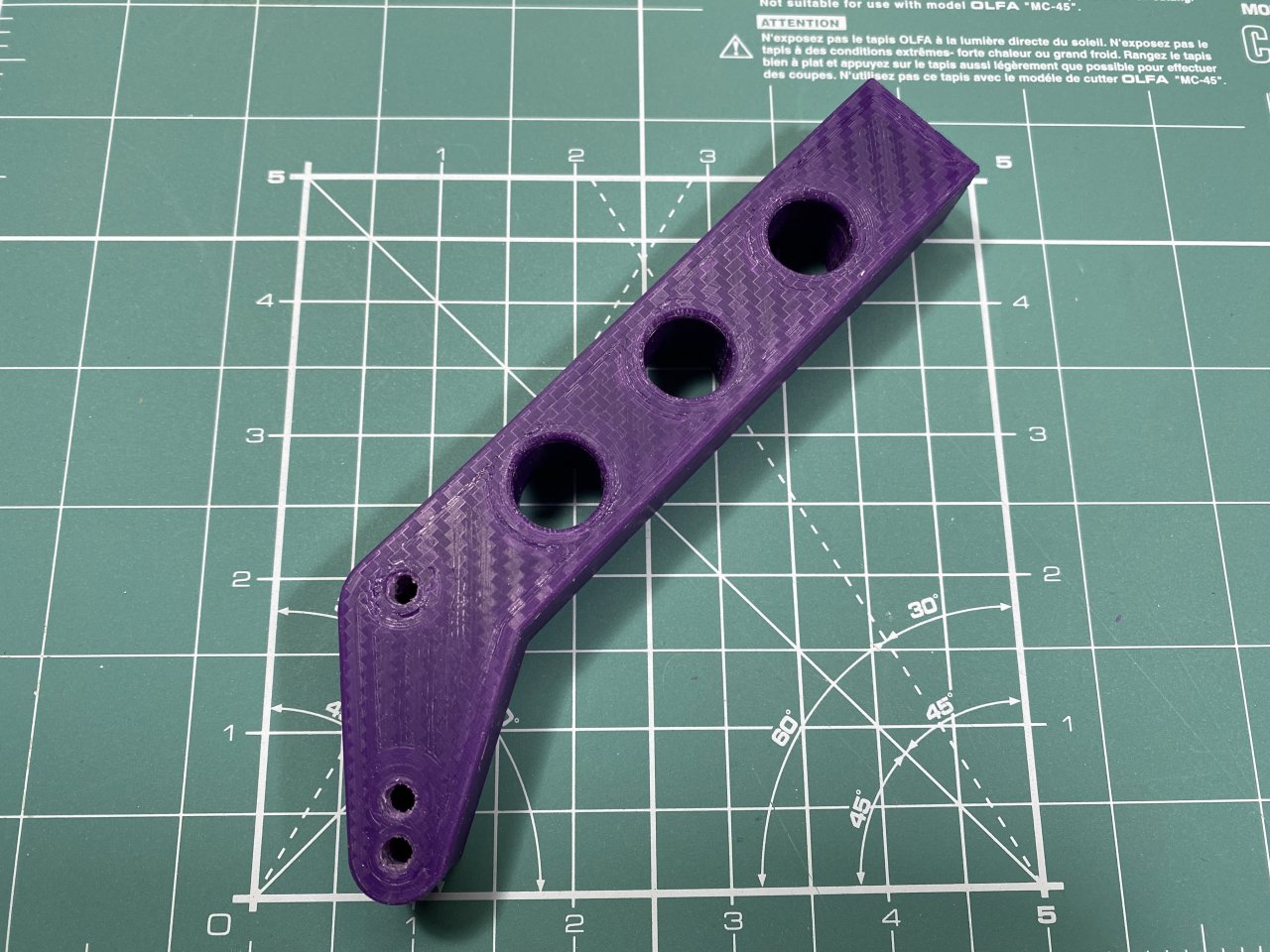

Printed with enough layers/sides it is sturdy enough without much additional flex (mostly flex for me comes from the TR shifter mount).
-

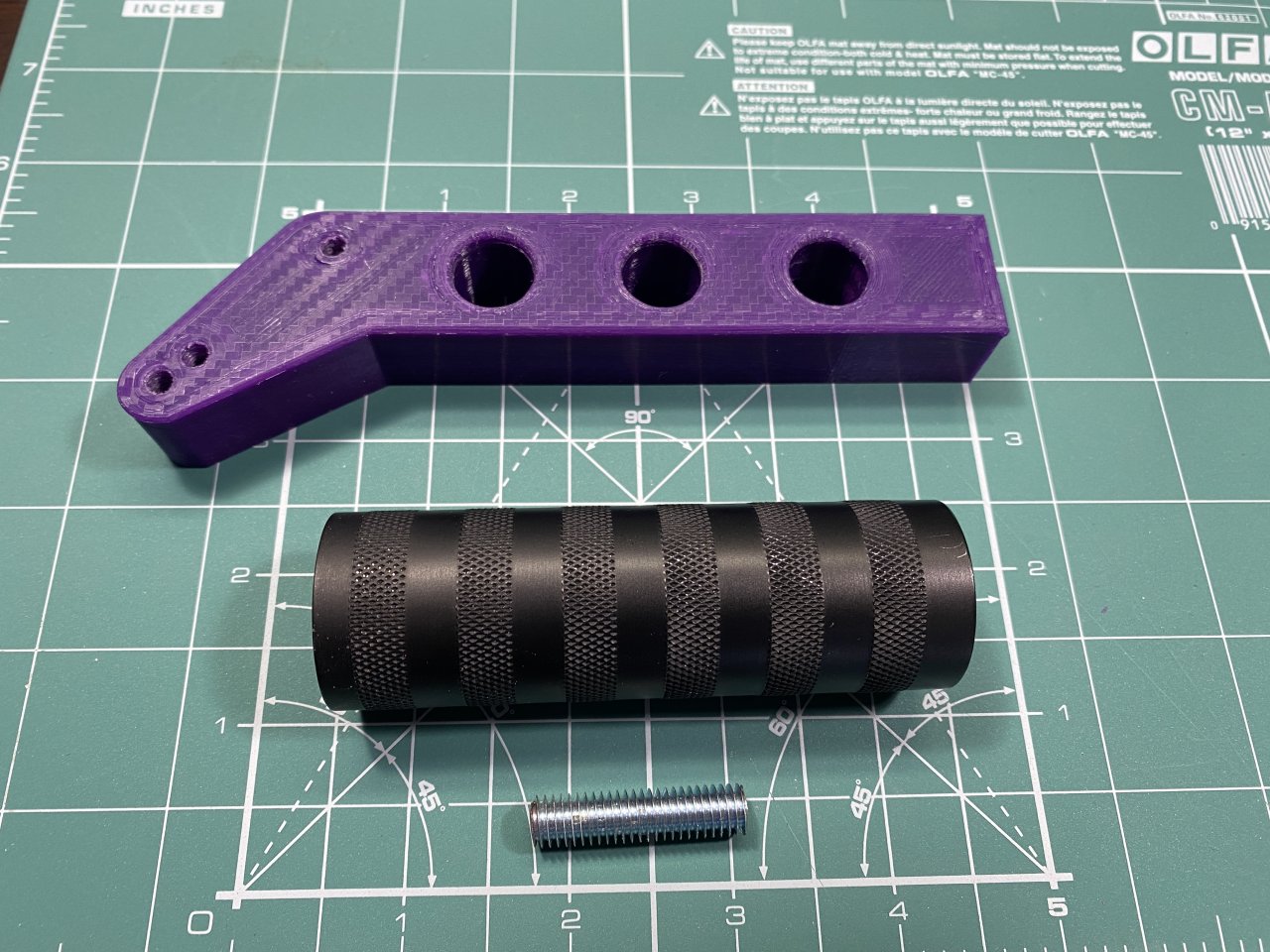

Needs M8x30mm threaded rod to interface between lever-handle. Easiest way to obtain one is cut off the head of a 30mm or longer M8 bolt.

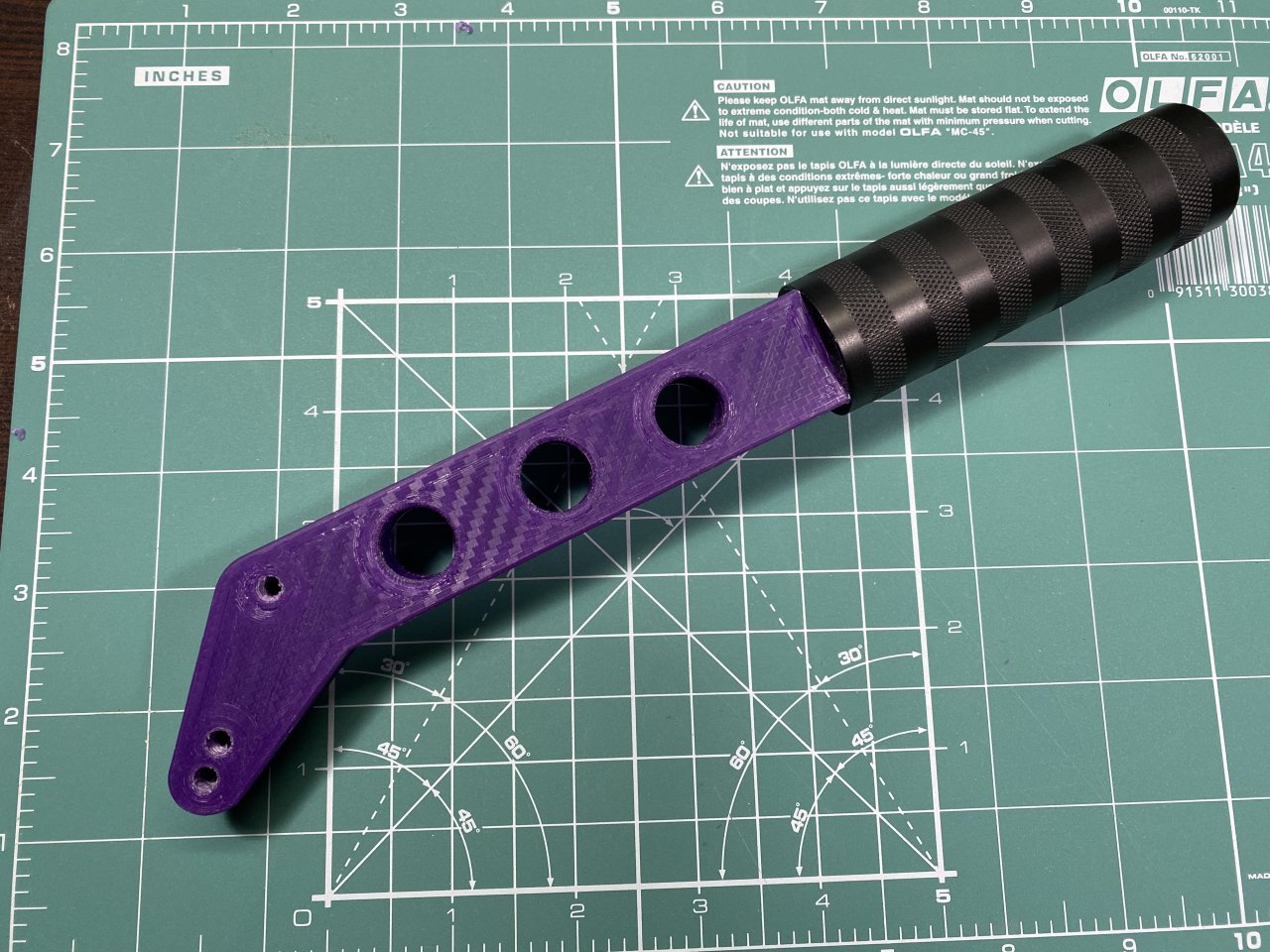

Universal grips have adapters, M8 is common interface. If you want you can also use some suitable shift knob.
Printing settings:
Walls: 12
Top/bottom layers: 12
Infill: 60%
Supports not needed. Printed in PLA.
