Audio Terminal Box 5x for Shakers
07 January 2026 | Hits: 53 | Downloads: 5 | Sim Rigs | Free | Digital
-

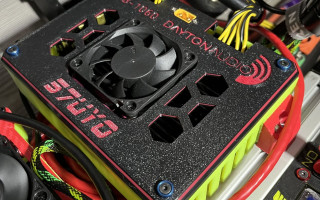

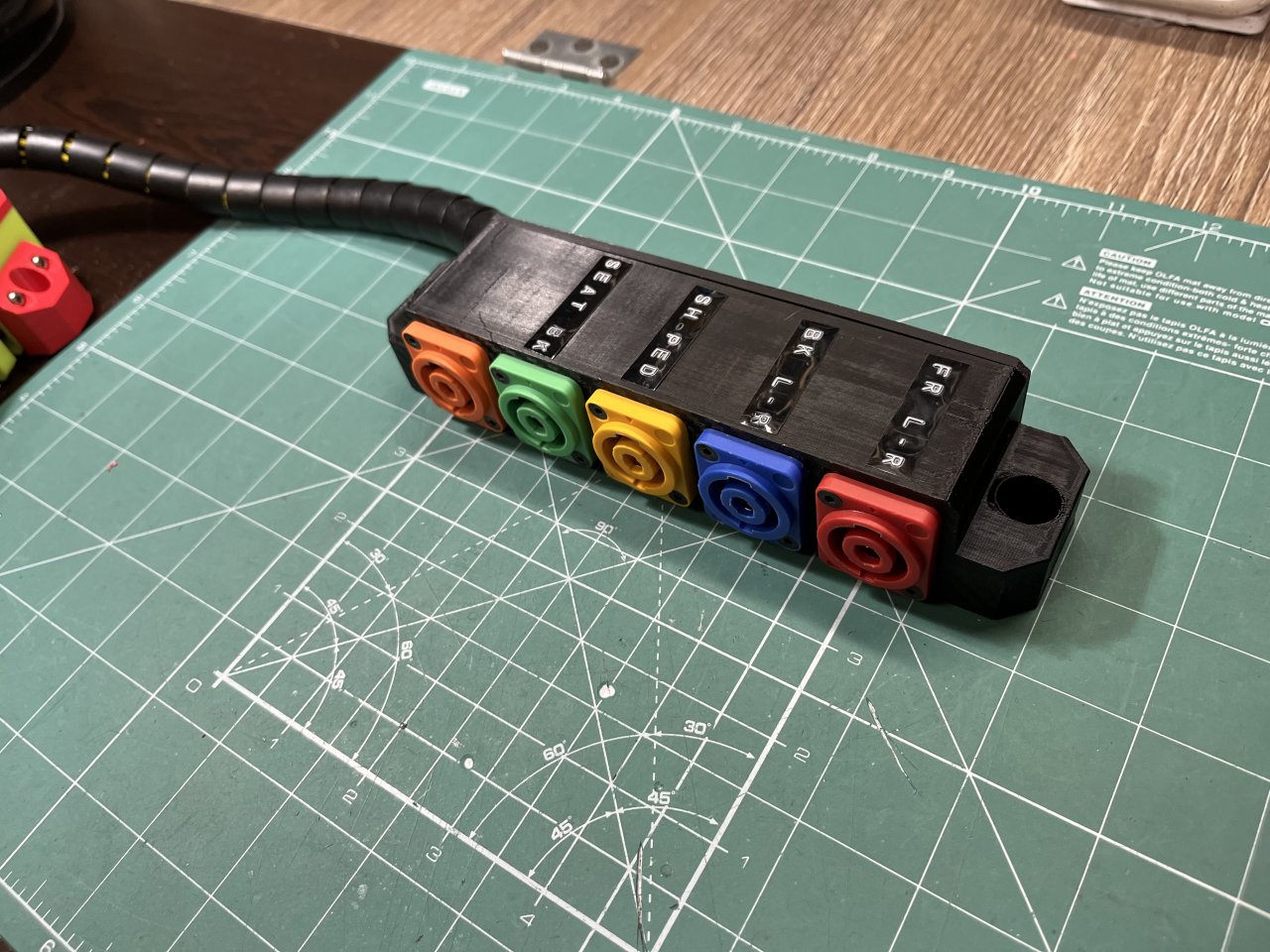

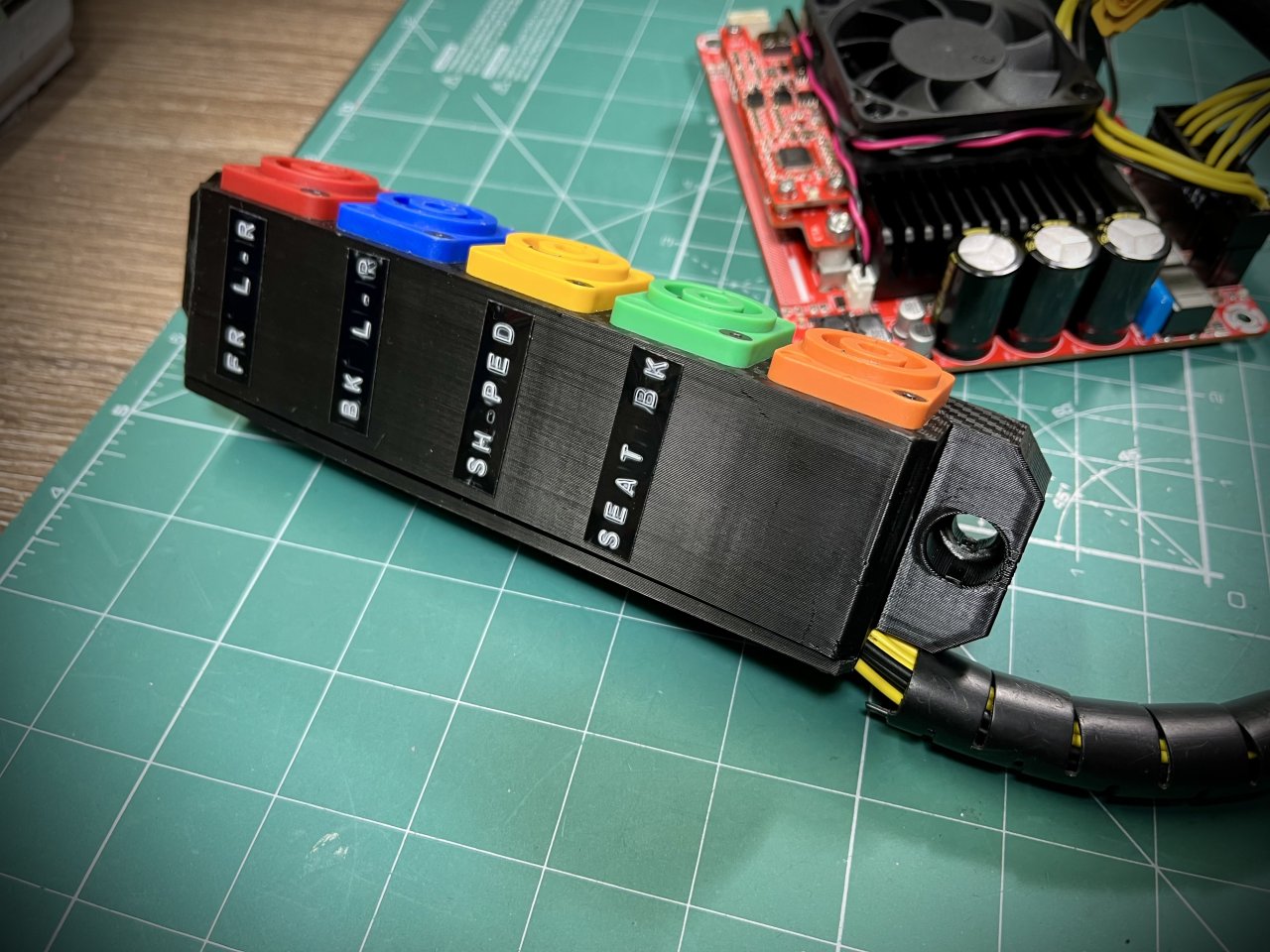

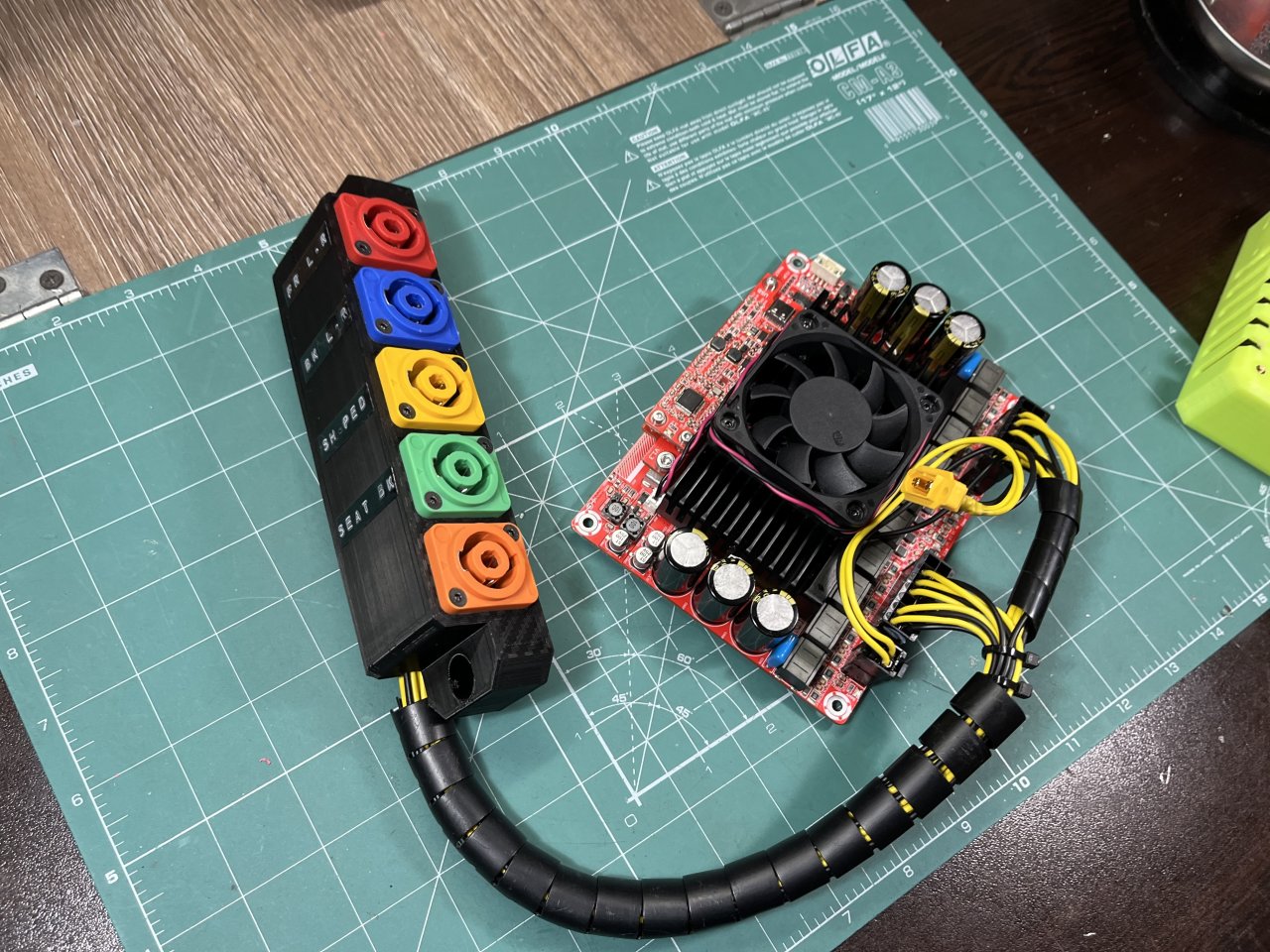

Simple to print audio terminal box to go with the Dayton SAB-1060 10ch Sim Racing Amp. It uses 4pin QR audio connectors and can hold up to 5 of them - perfect way to connect the 10 channels this amp has to you sim racing tactile setup. This splitter box will help you with cable management and maintenance.
-
Parts Needed:
1. Speaker connector set NL4FC 5x, assorted colors
2. Tapered M3x10mm screws to mount connectors to box, 10x
3. M3x16mm screws for the cover

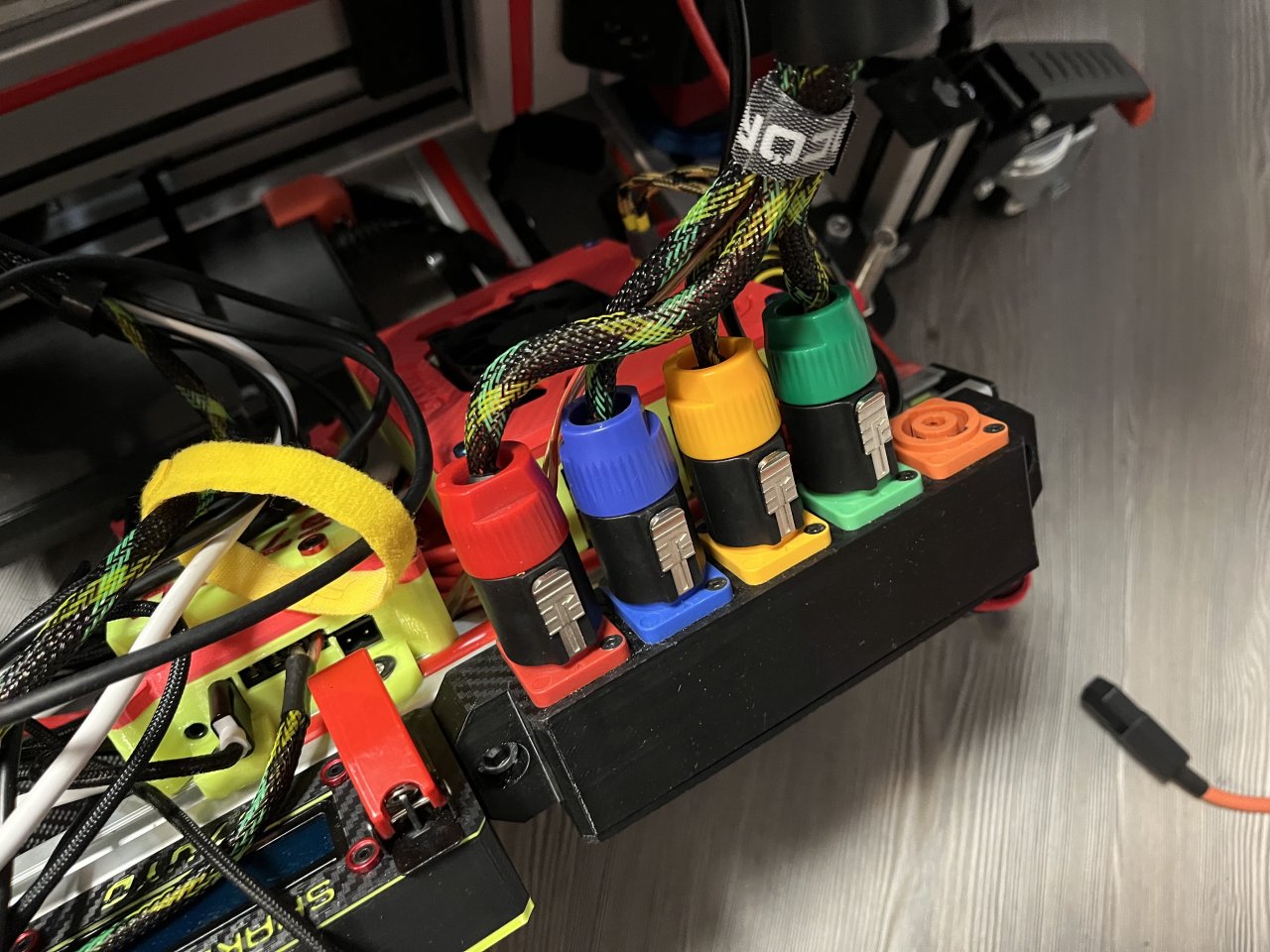

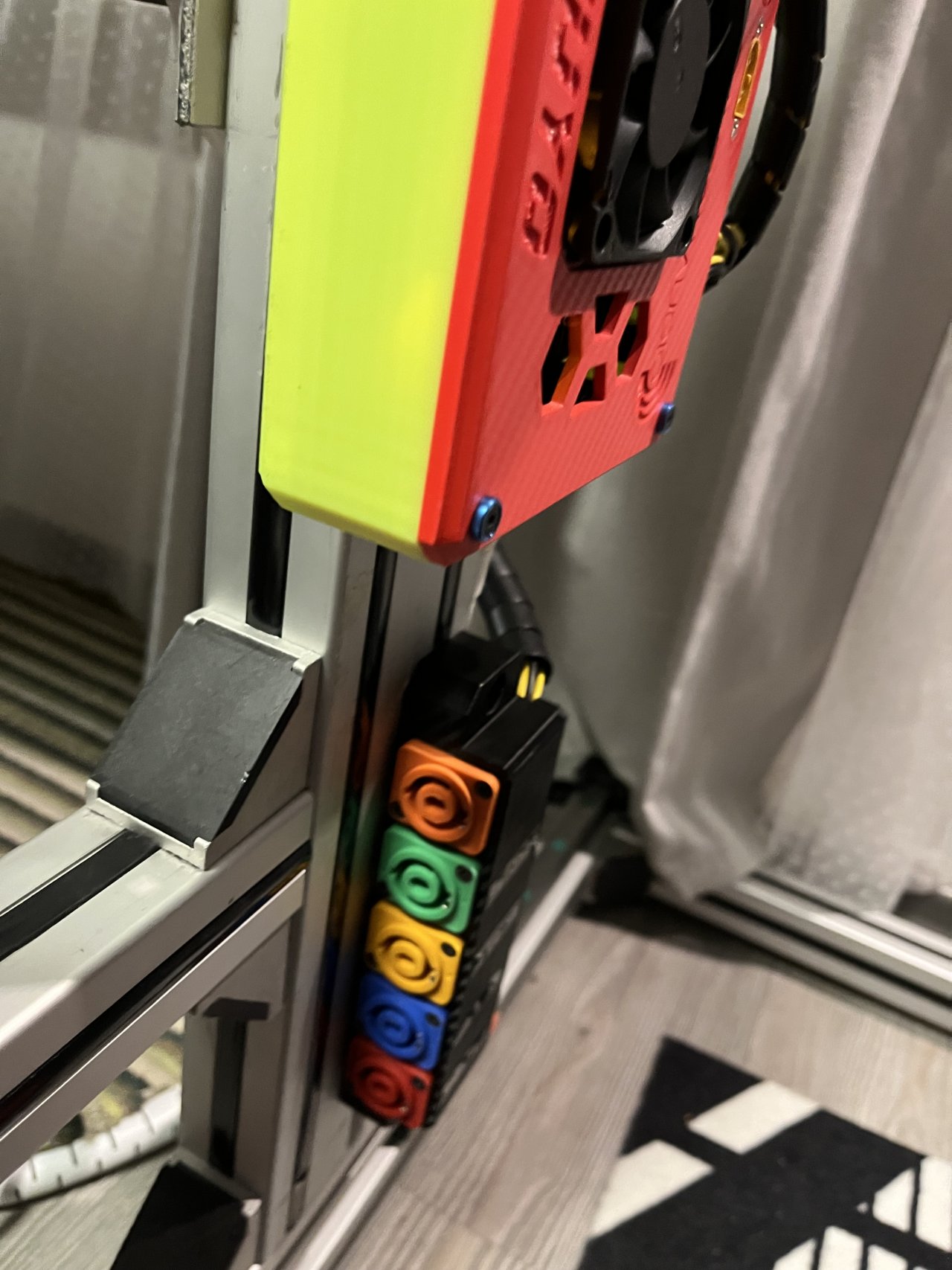

4. M8 hardware for attachment to Alu profiles
Print Settings:

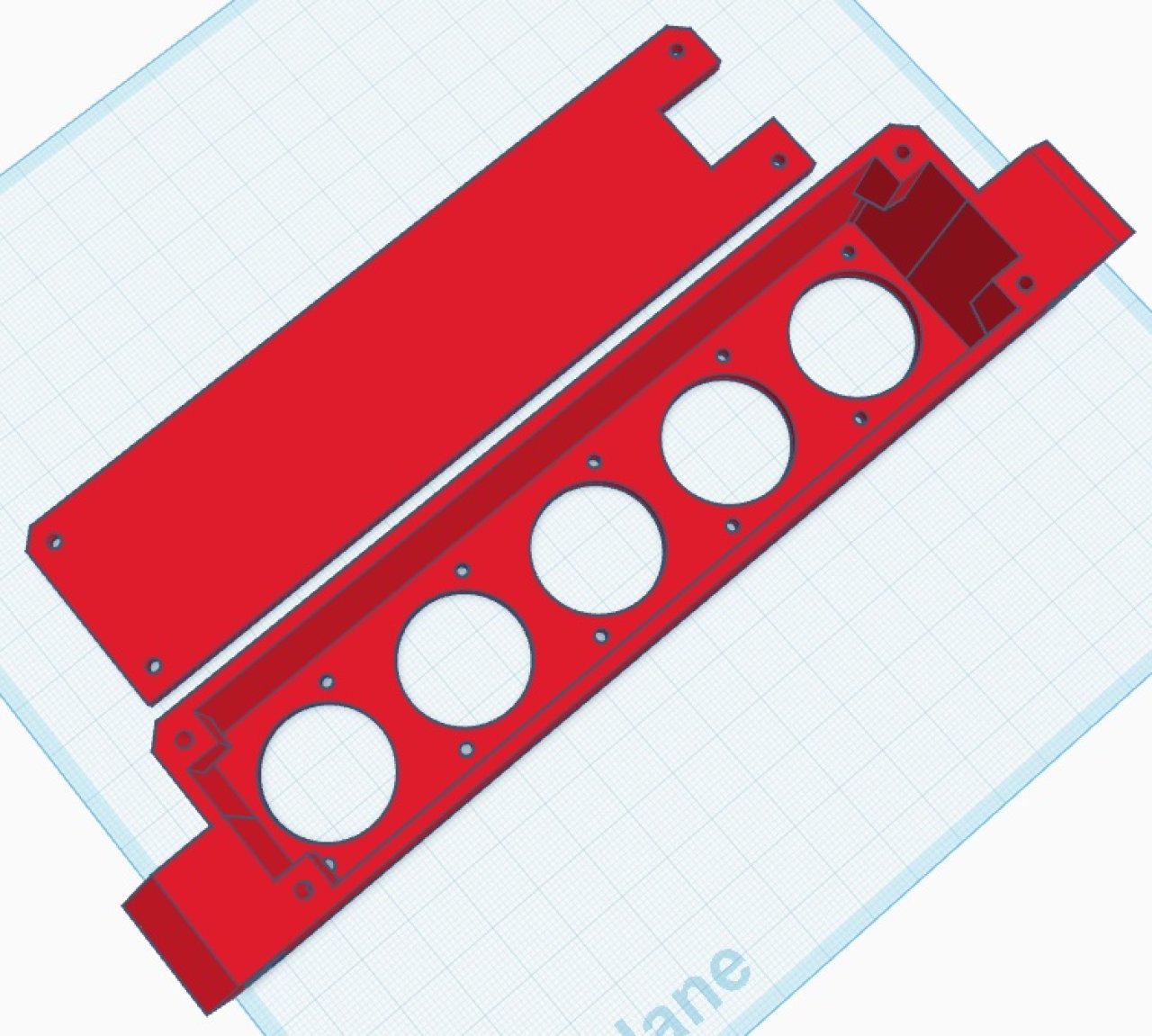

Parts oriented as should be printed, no supports needed. Use whatever settings you fancy.
Assembly:

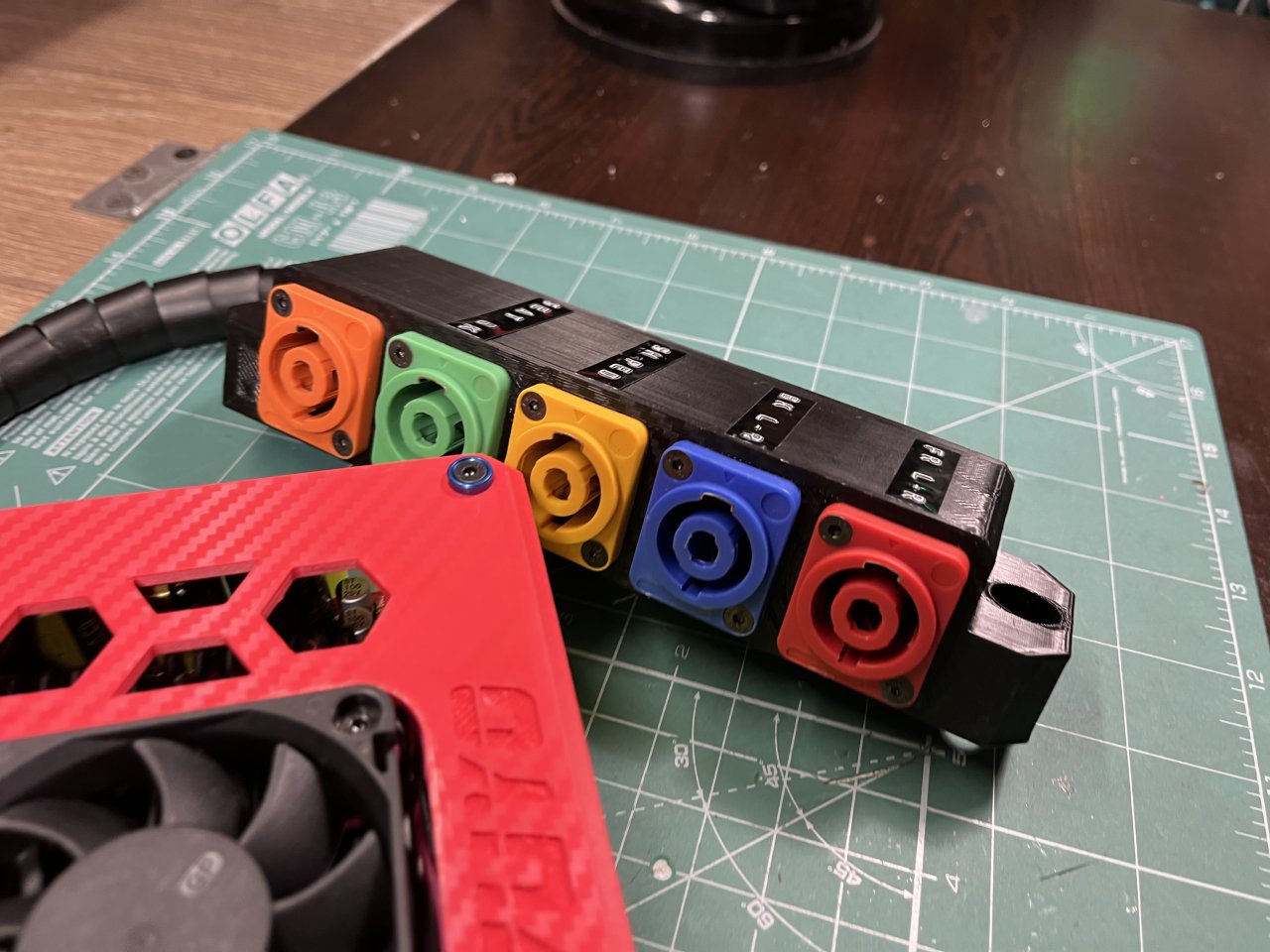

Install Female terminals on box using the tapered screws, they go directly into plastic.
Solder all wires from the original harness by your choosing.
Cover can be placed either way based on your preference where the cable should exist. Screws directly in the plastic with M3x16 bolt.
