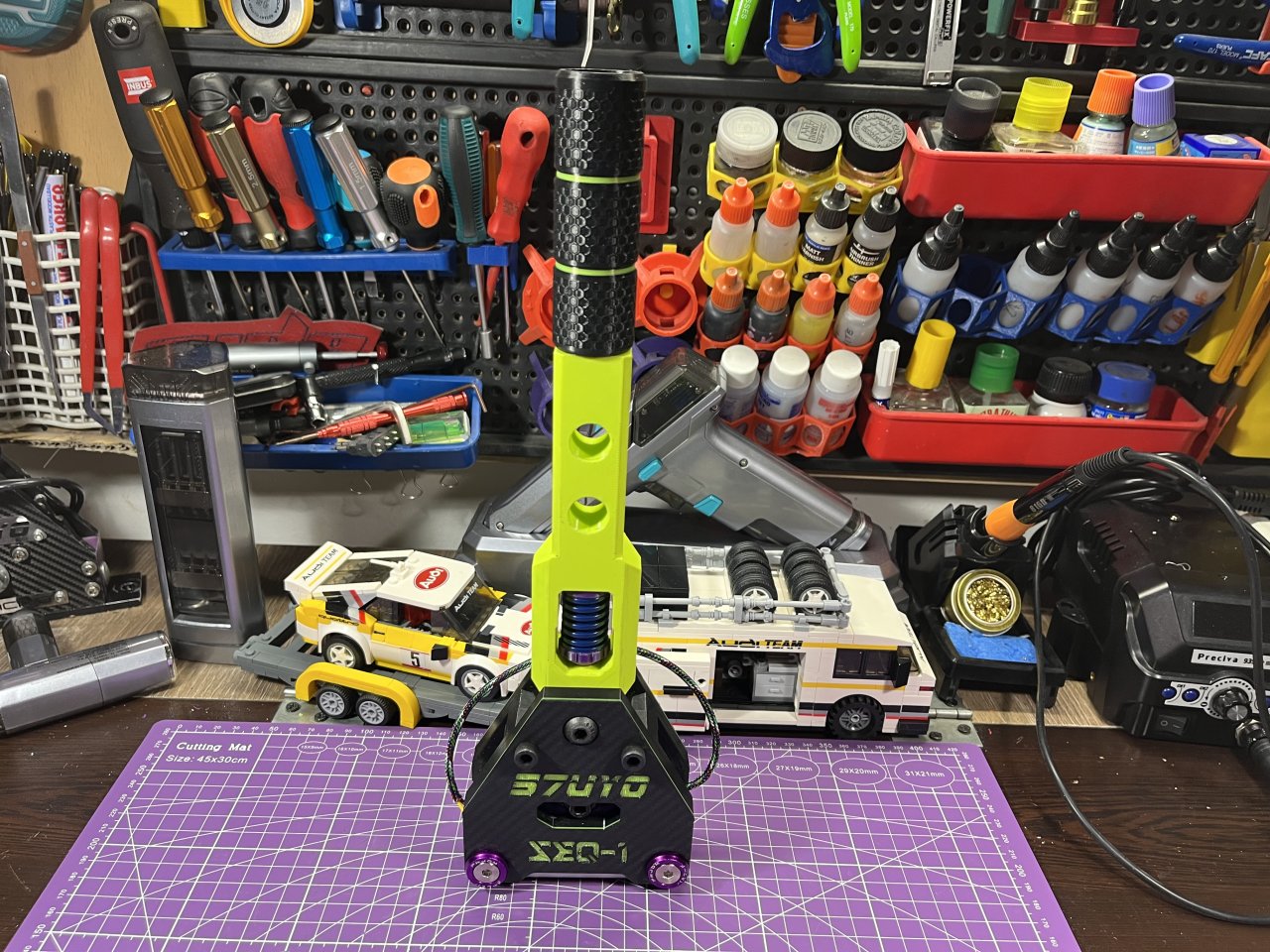

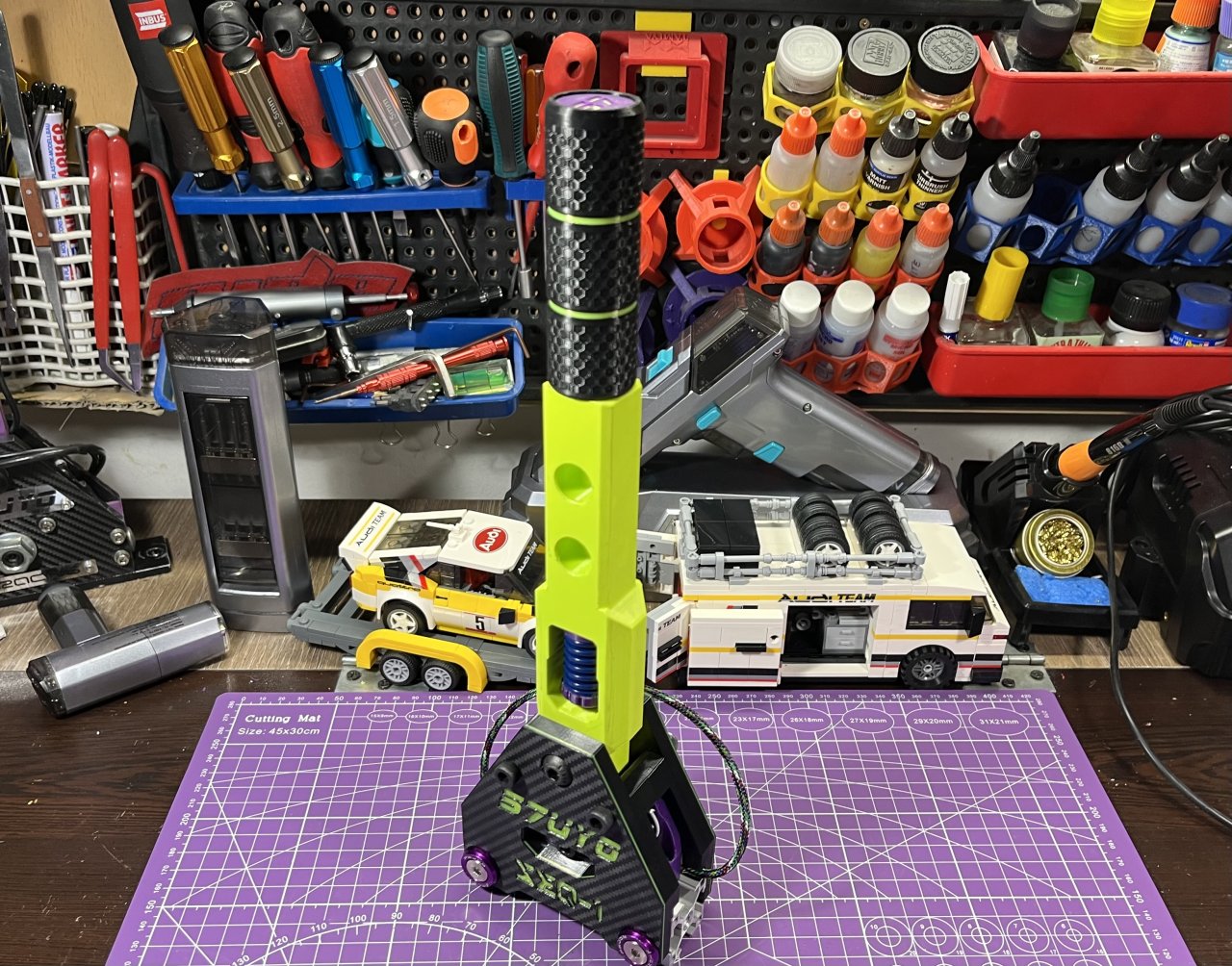

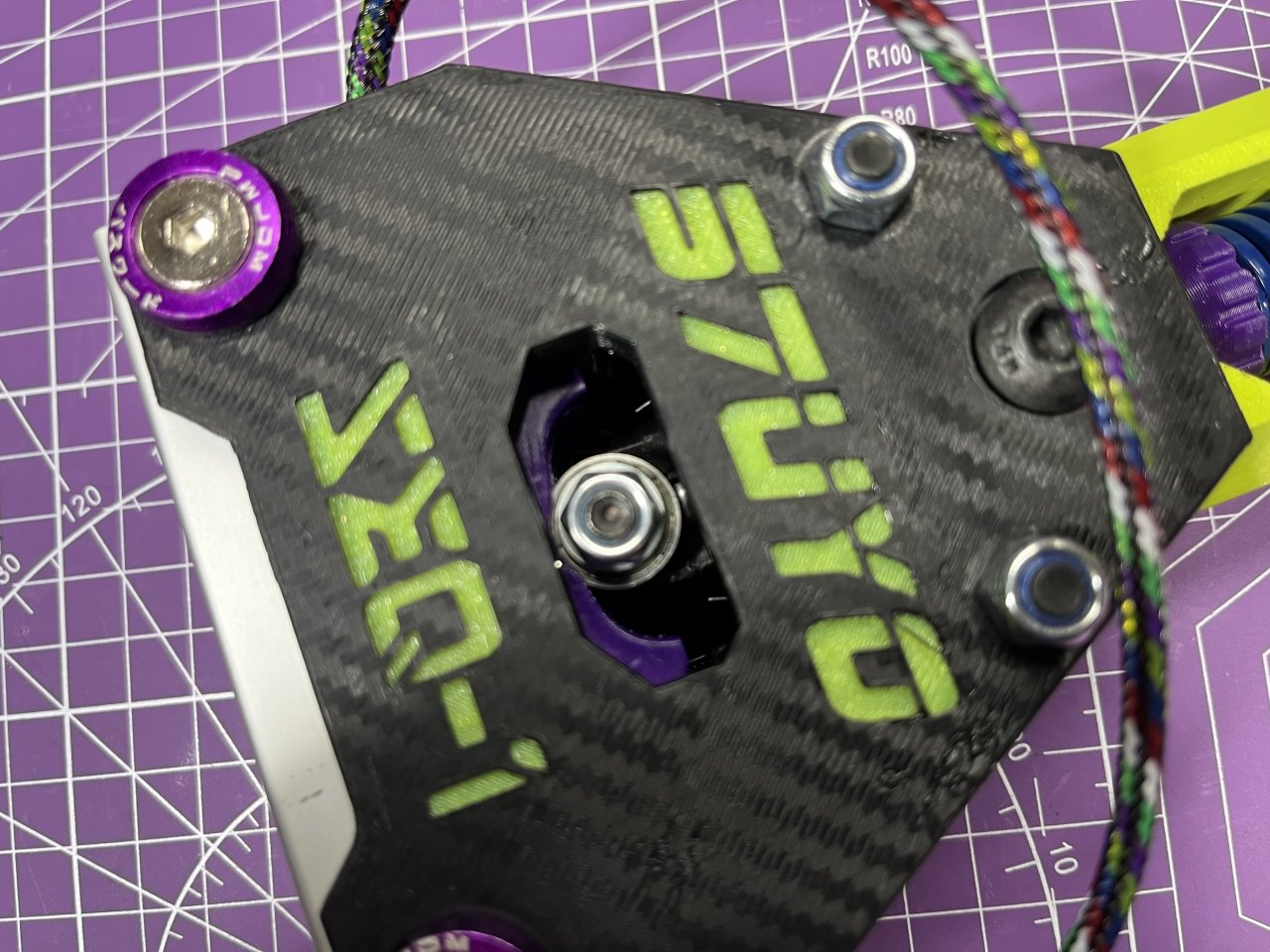

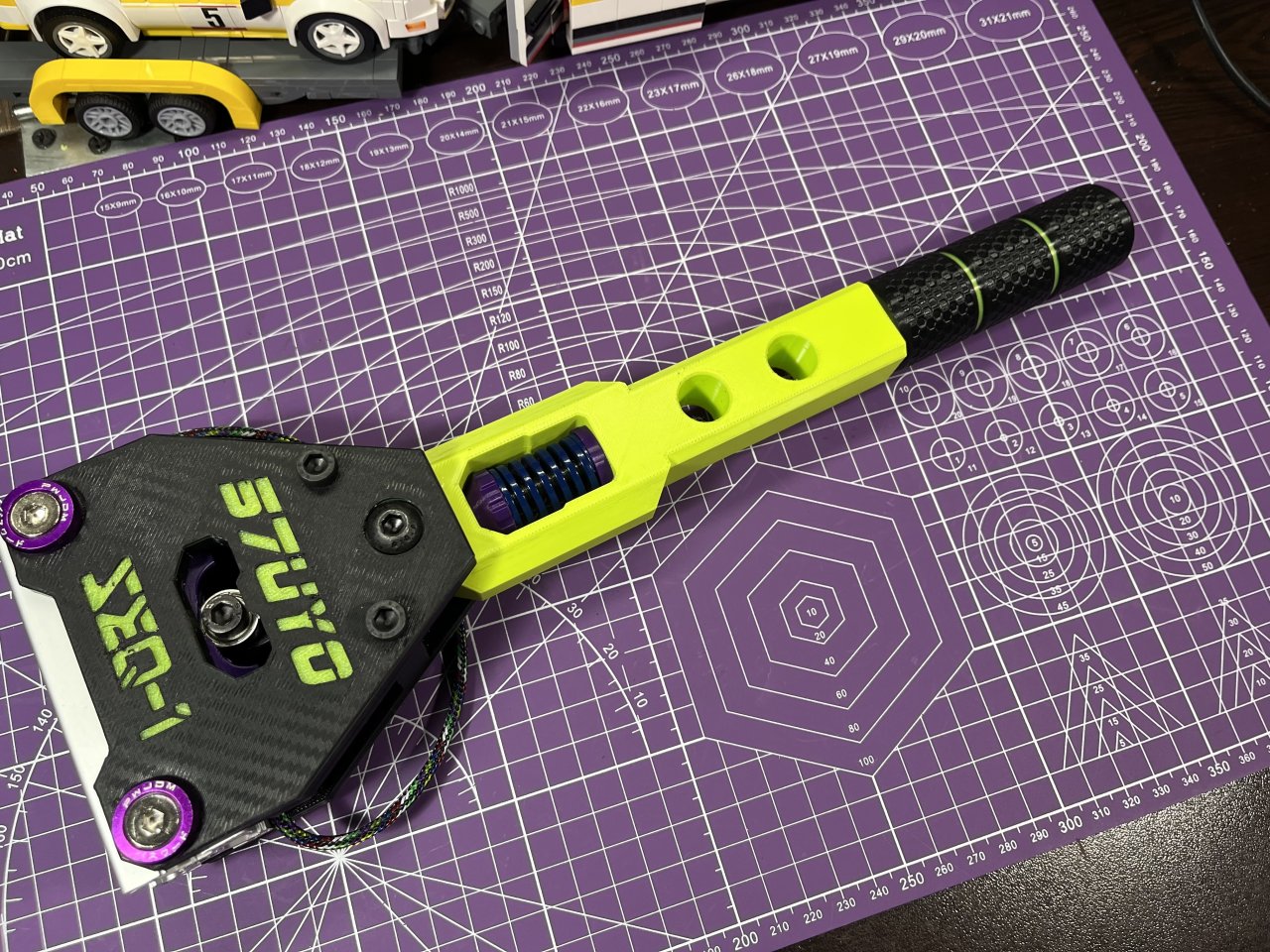

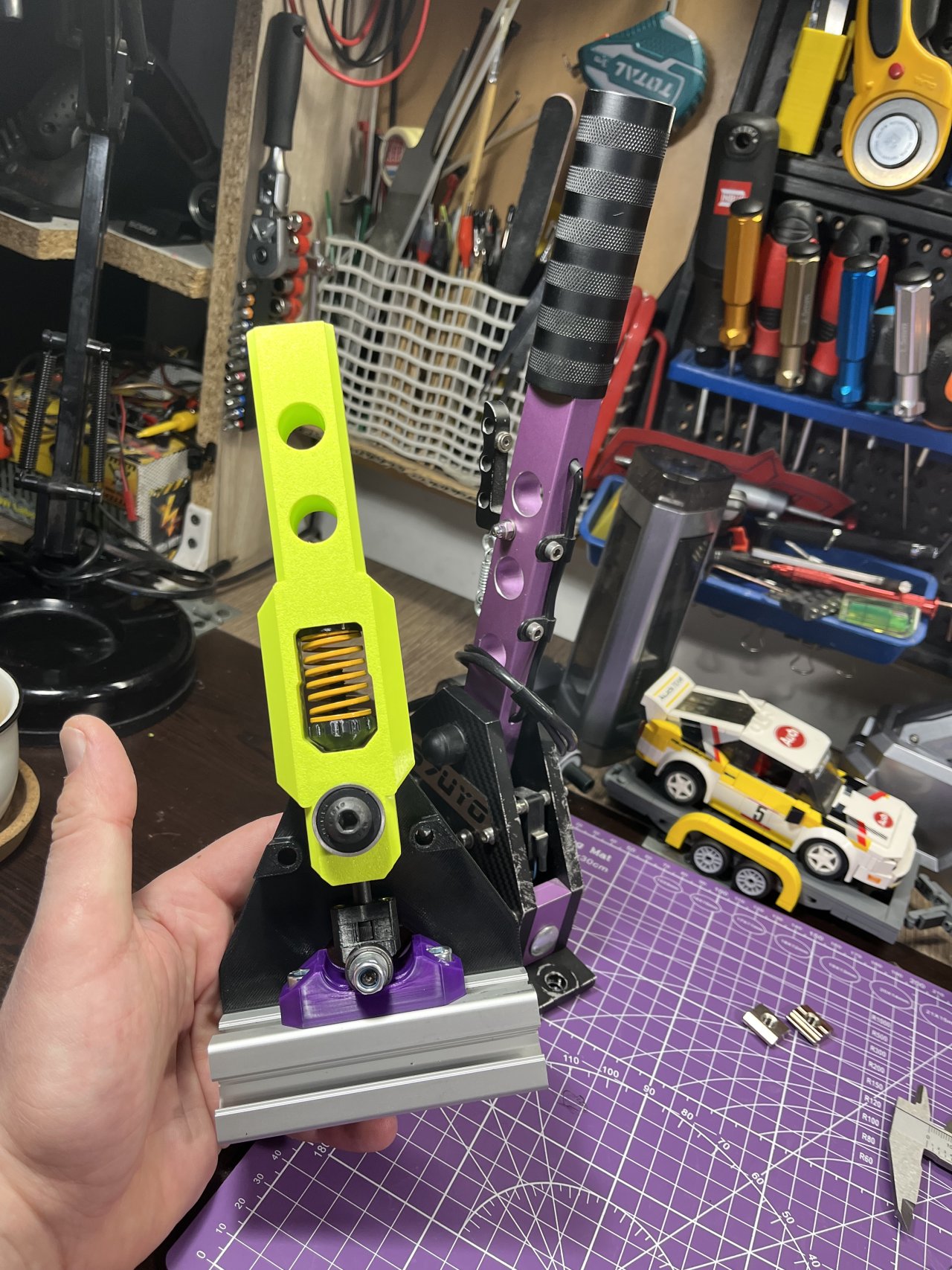

The 57SEQ MK-1 is full-sizes sequential shifter targeted at Rally/Drift sim racing enthusiasts. It has double stage engage simulated by springed roller and interchangeable cam plate. If you opt out for Pro Level Tier Support you will get access to the sources and can modify the cam plate to your liking - travel, two-stage engagement, resistance, etc...
The build is quite simple, relatively fast to print and rather cheap. It is stable, feels like much more expensive gear and quite satisfactory.
Files contain several pre-load plates for 30mm springs, also can be adjusted with the lock-nut.
Main features:
- Full size sequential shifter
- Double stage release - initial higher resistance, then sudden release till ends-stop

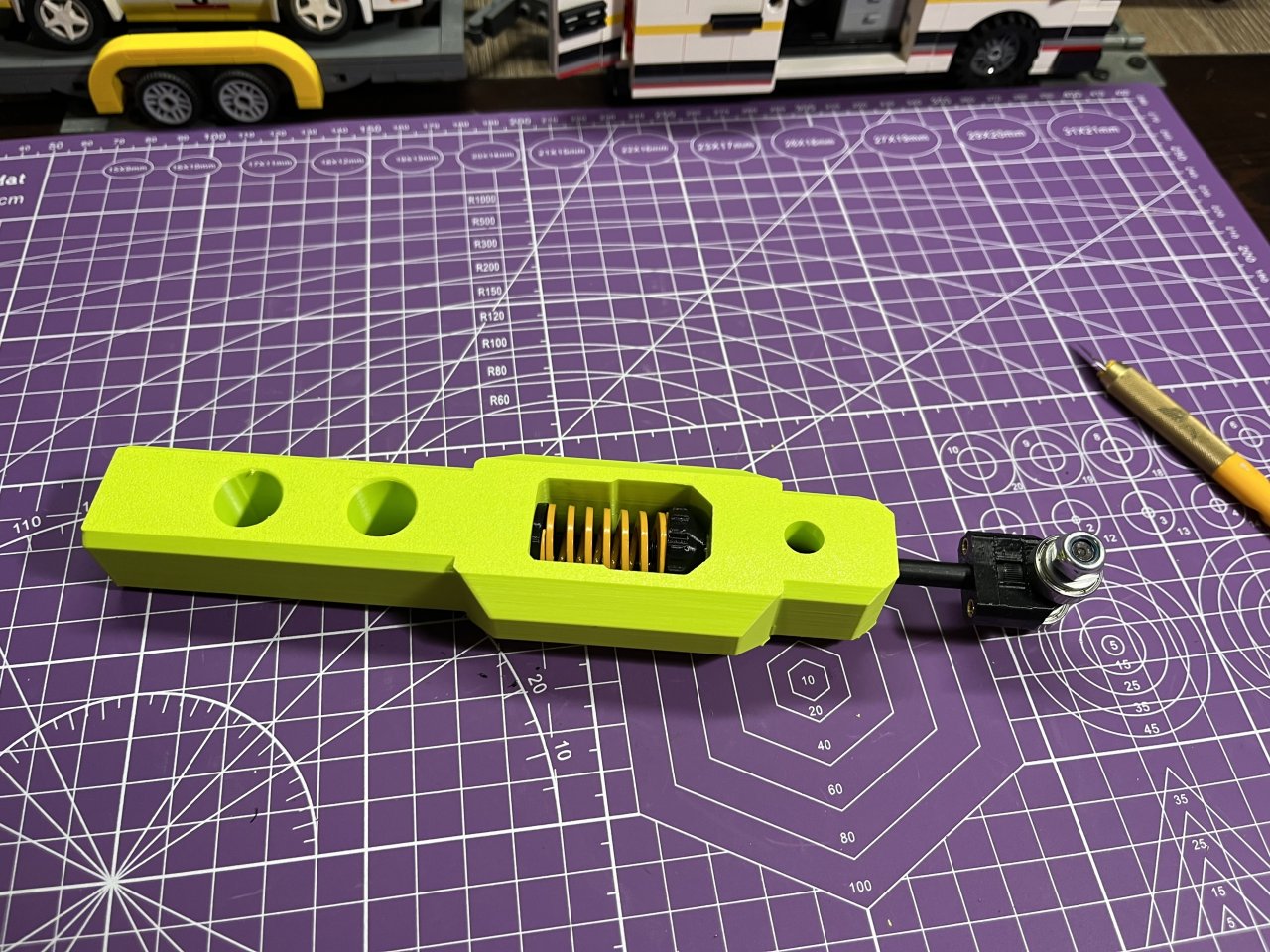

- Easily changed resistance by switching springs
- Cam plate can be modified to different travel-relase-resistance
- Quiet - being printed part is family/neighbour friendly

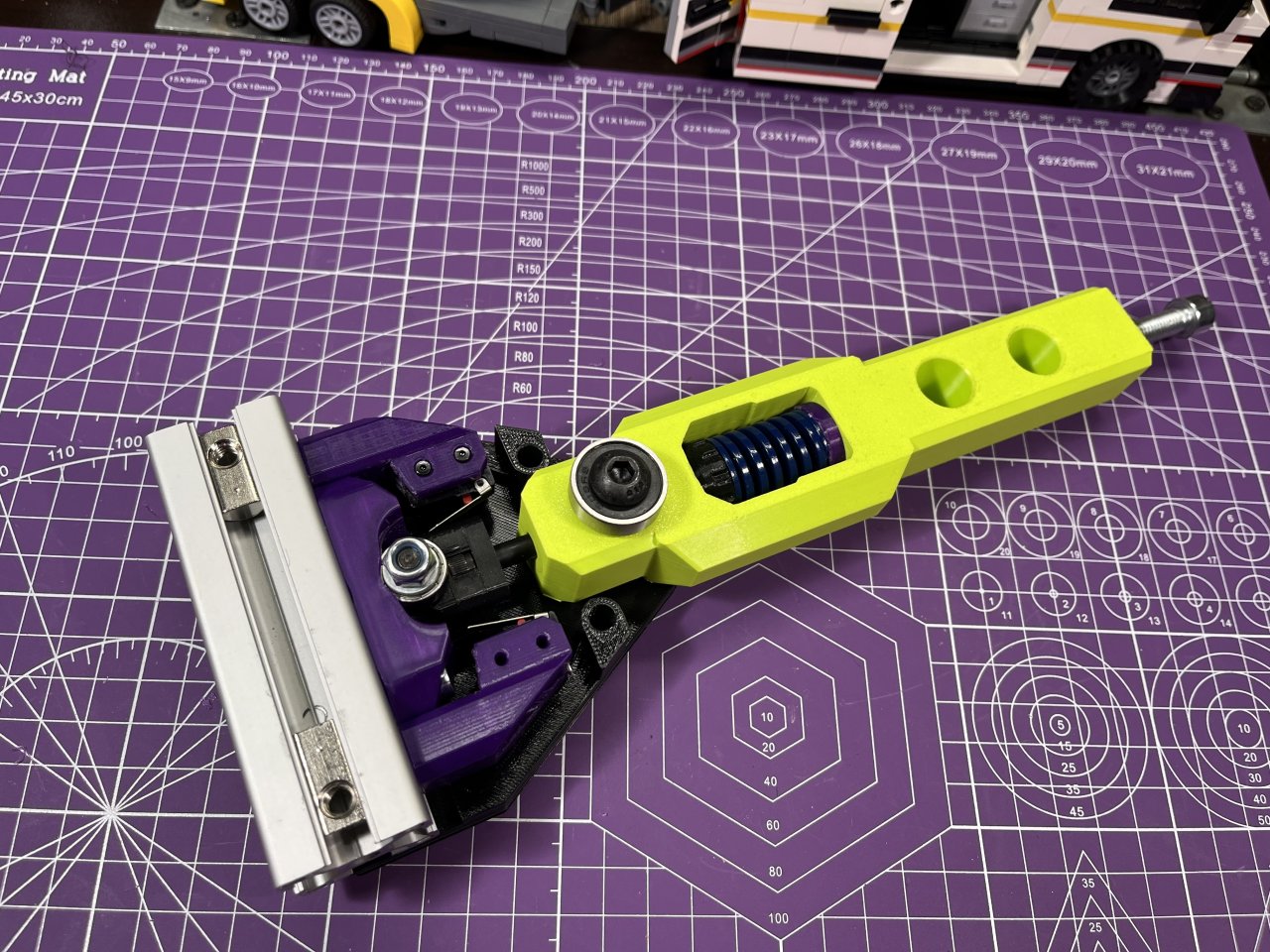

- Big flange M8 ball bearings and 3030 series profile make it very solid
- Easily mountable to all kind of rigs/deskbrackets
- Relies on cheap and easily obtainable non-printed parts

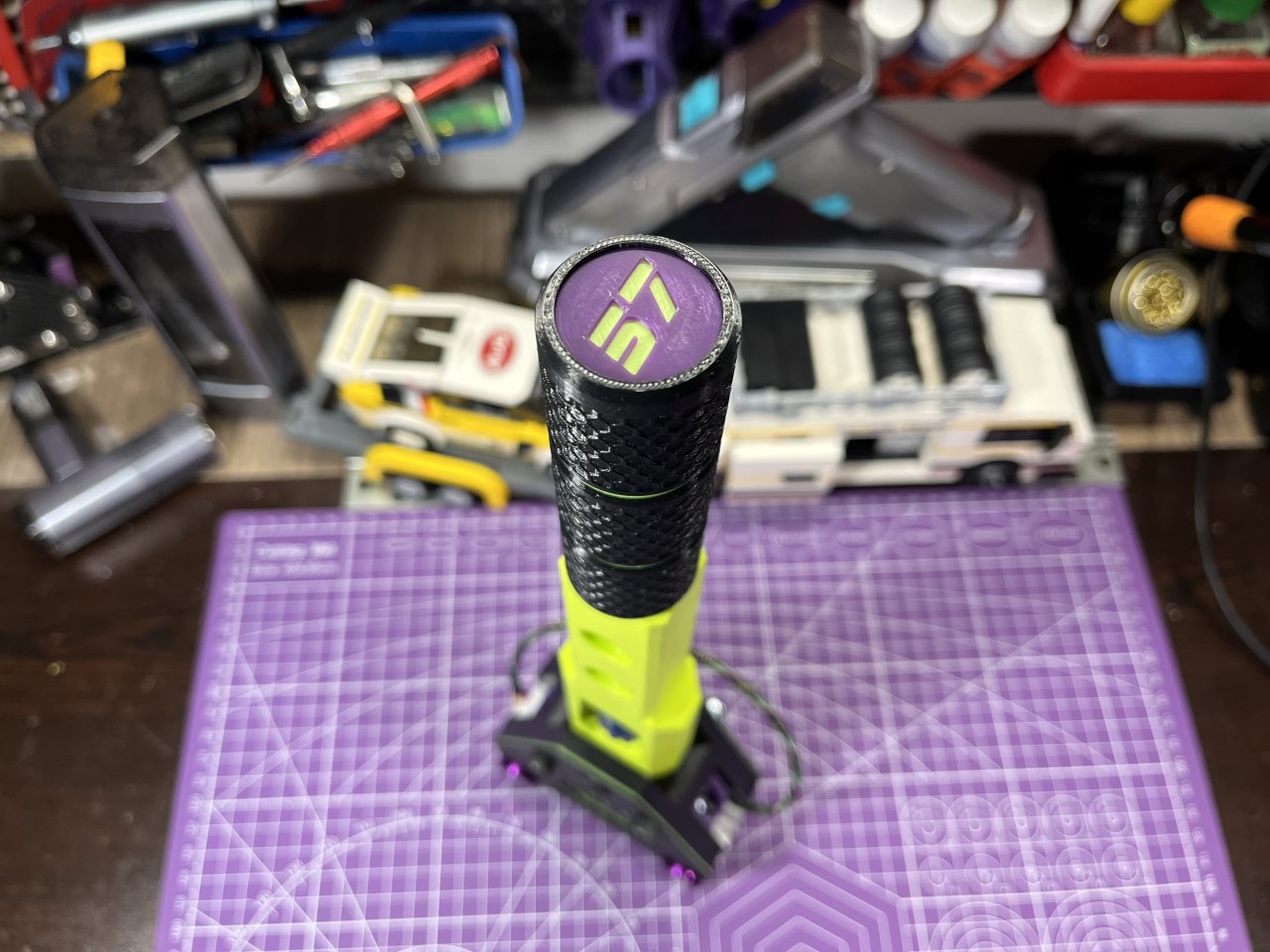

- Lever uses M8 mounting hardware compatible with most aftermarket shifter knobs
If you want high-end reasonably priced full size sequential shifter for your Rally/Drift rig look no further - start building!
-

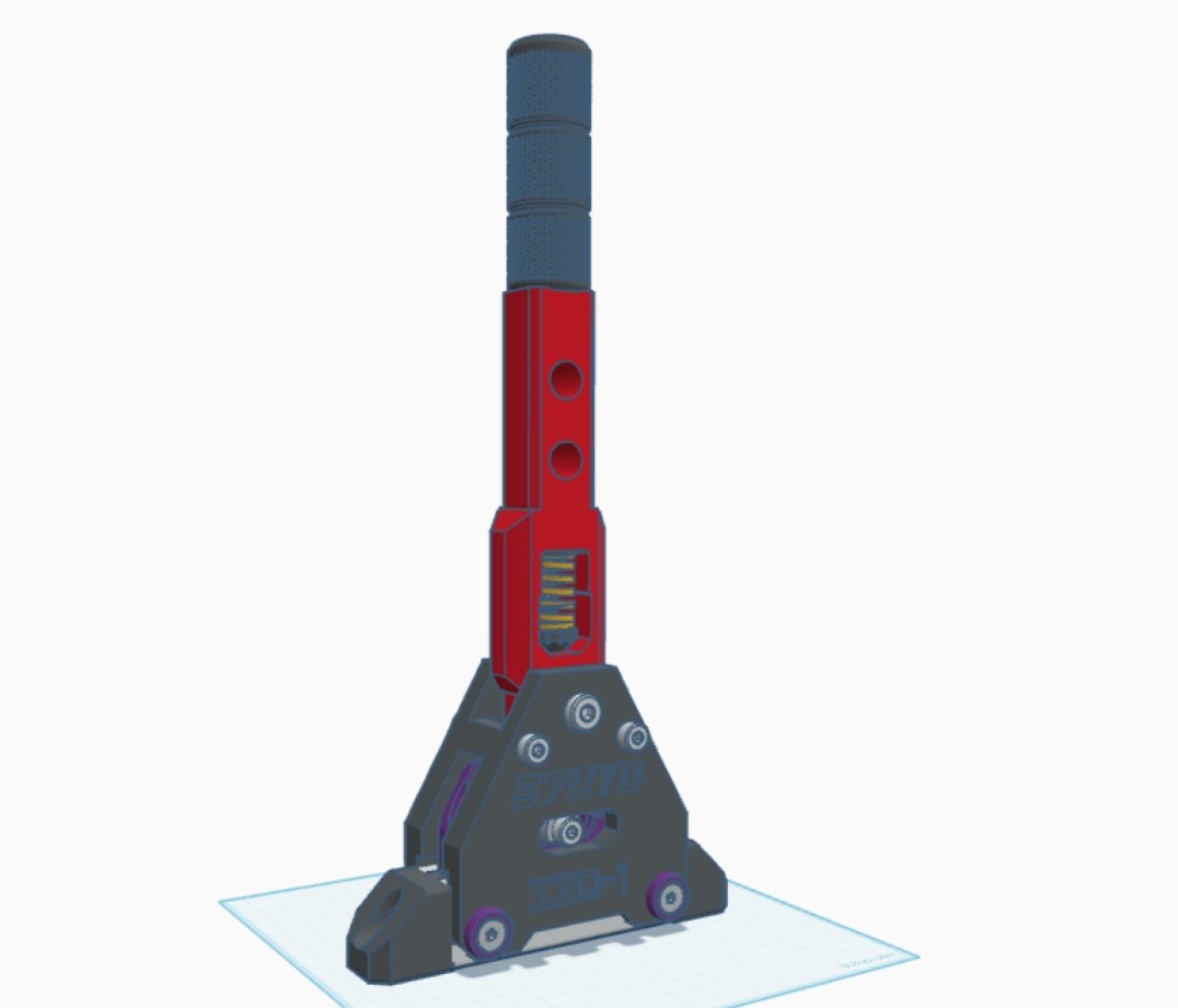

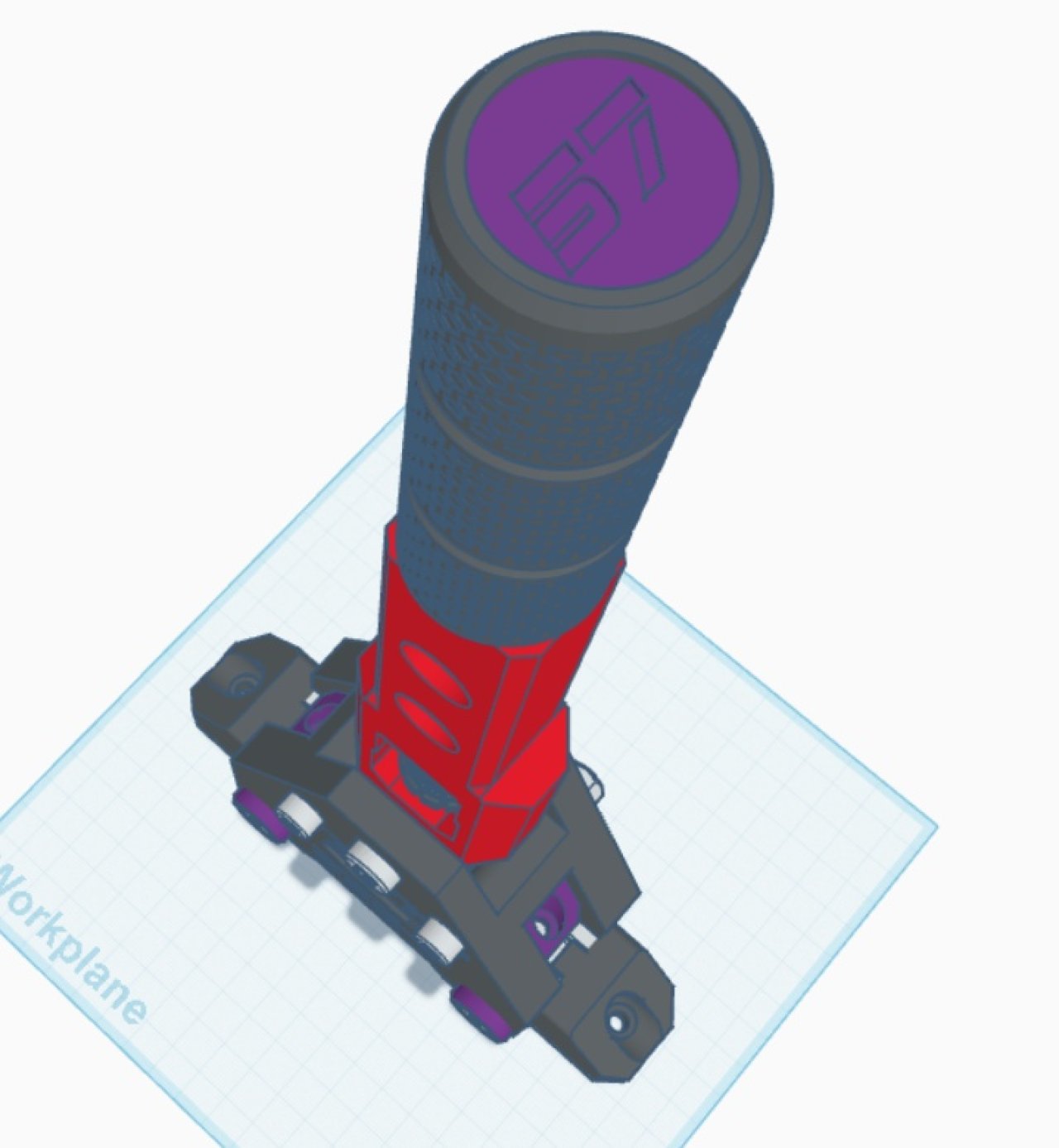

3D Model:
Pats list:
N.B. - Prices are with VAT and Shipping as I ordered at the time the project was published. Some items i bought in bulk, so % of actually needed parts was adjusted to give you idea of the final price of the non-printed parts needed for this project.
Print Settings:

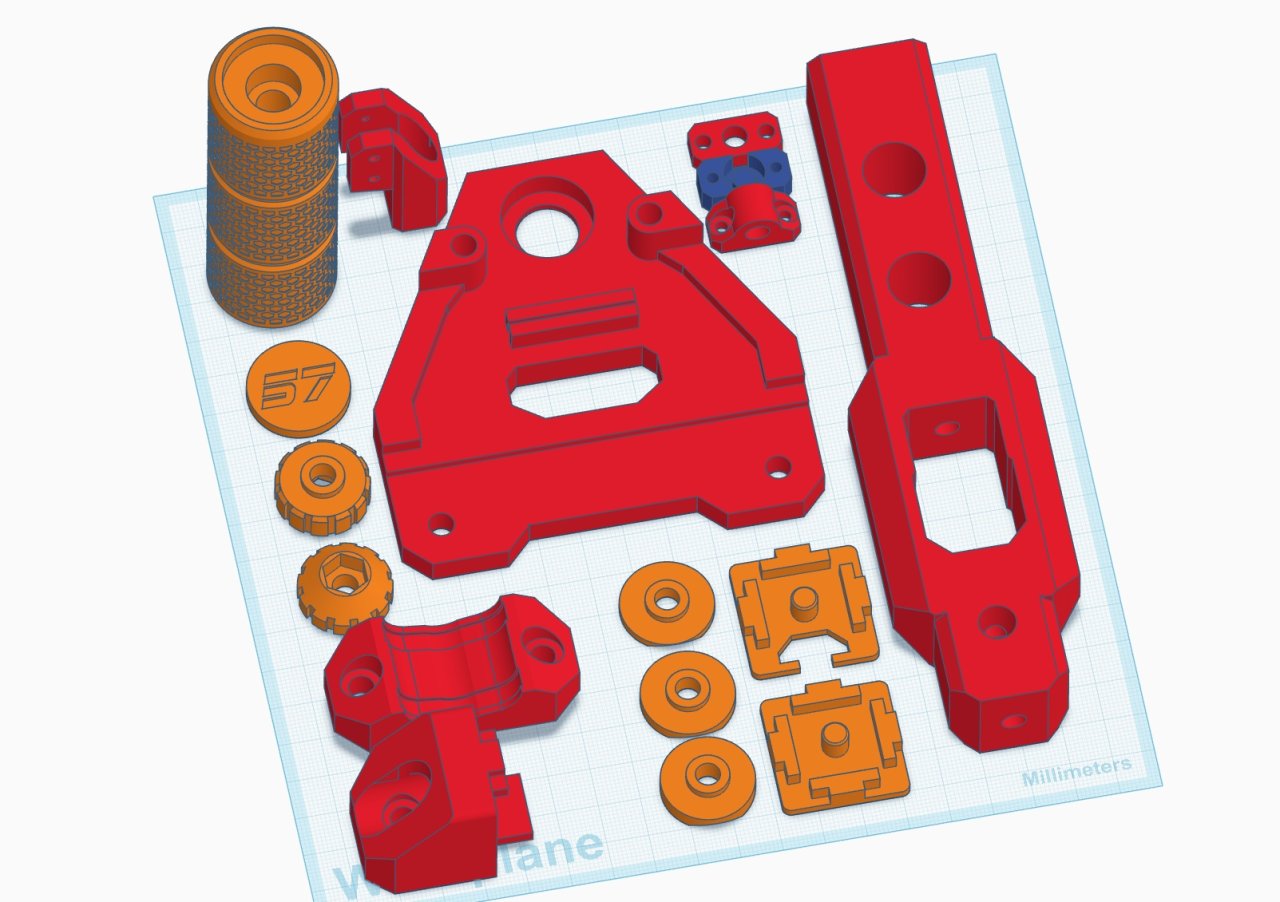

Use more than 5 walls, 25% Gyroid infill, 0.2 layer. PETG for stability, PLA will also work. Parts oriented in the way that should be printed. Only parts needing support are the side mounts and microswitch holders.
