Gauge Display - Modular Central Console Pt. 2
26 February 2023 | Hits: 4693 | Downloads: 201 | Sim Gear | Free | Digital
-

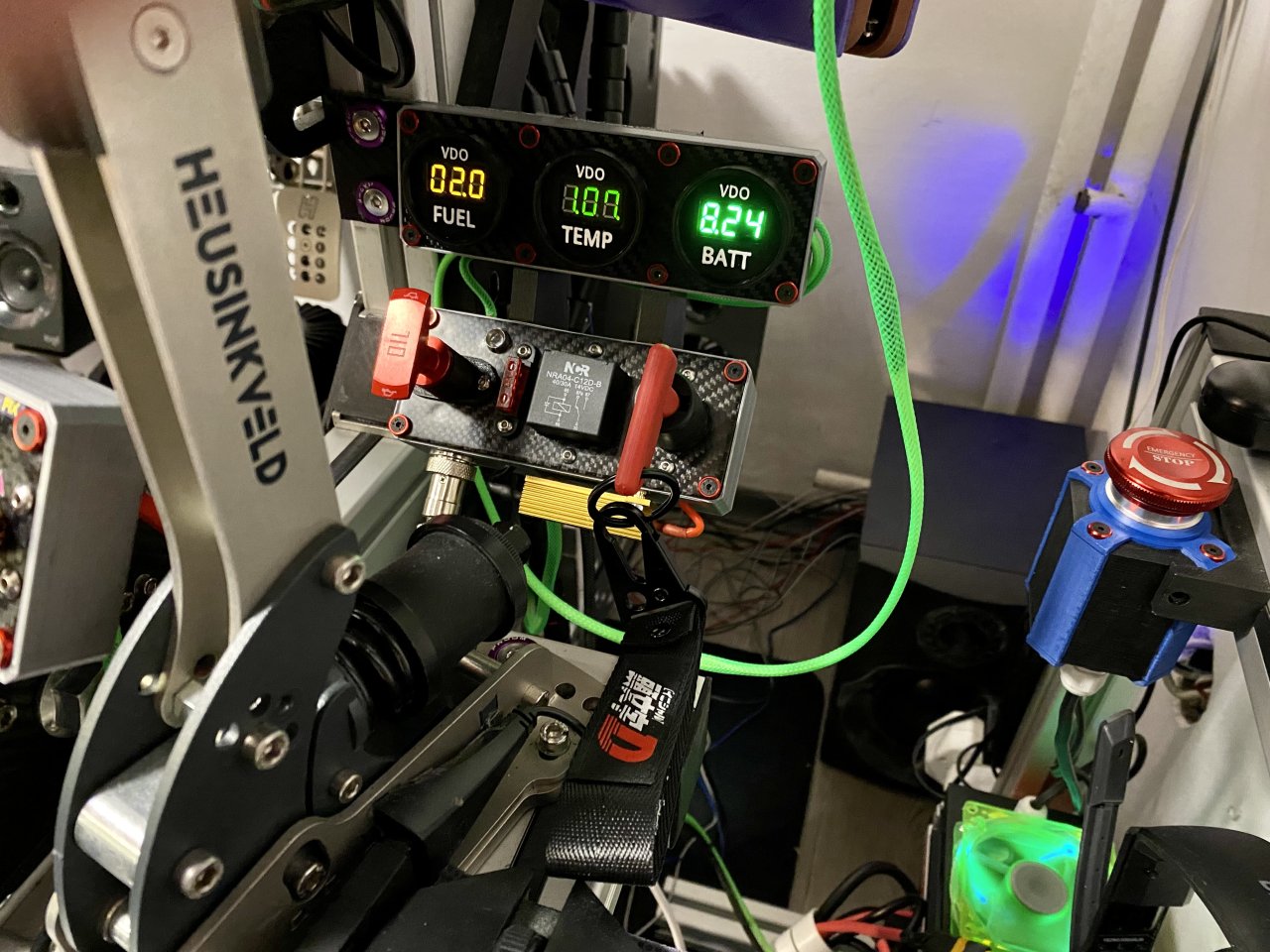

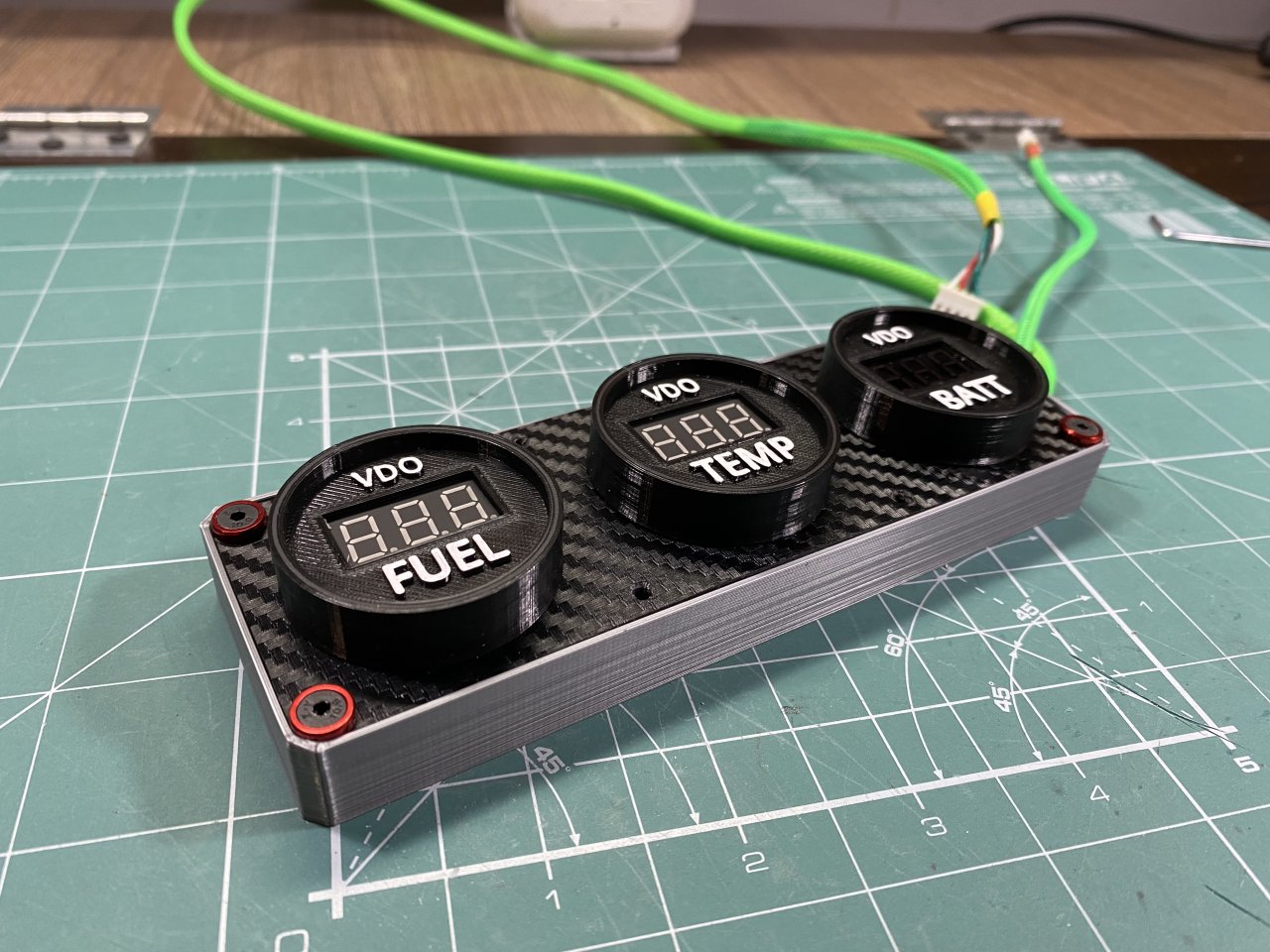

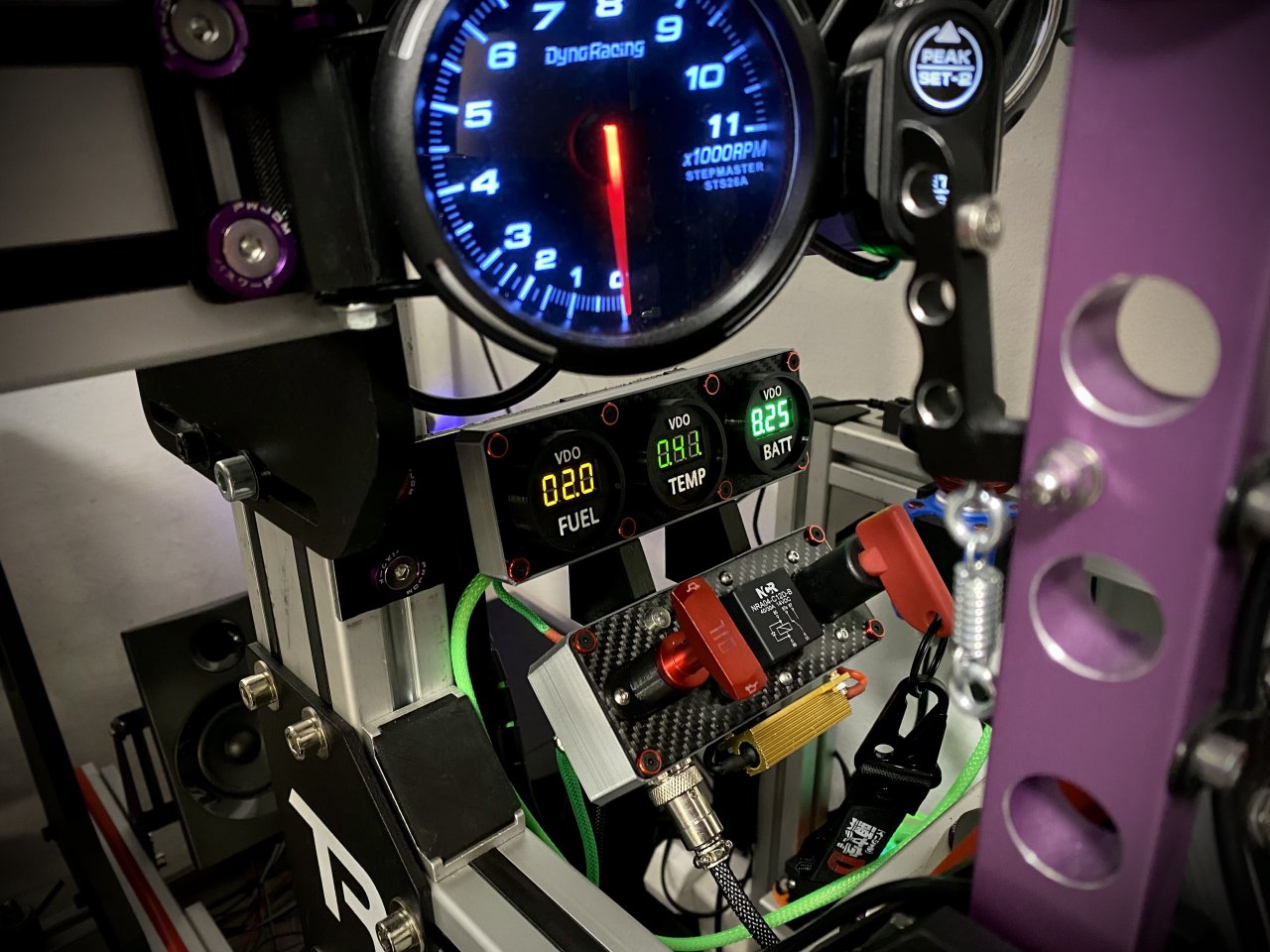

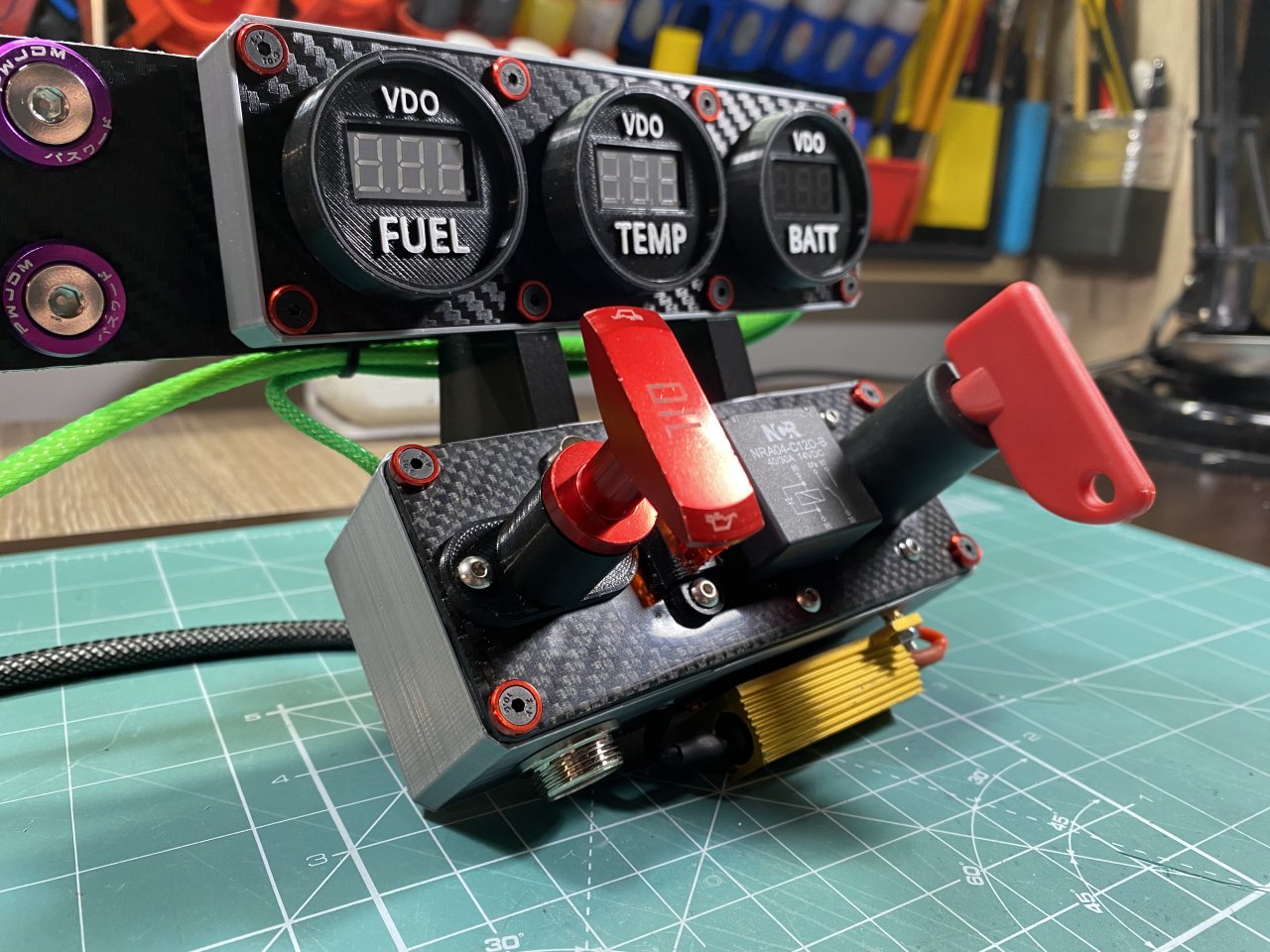

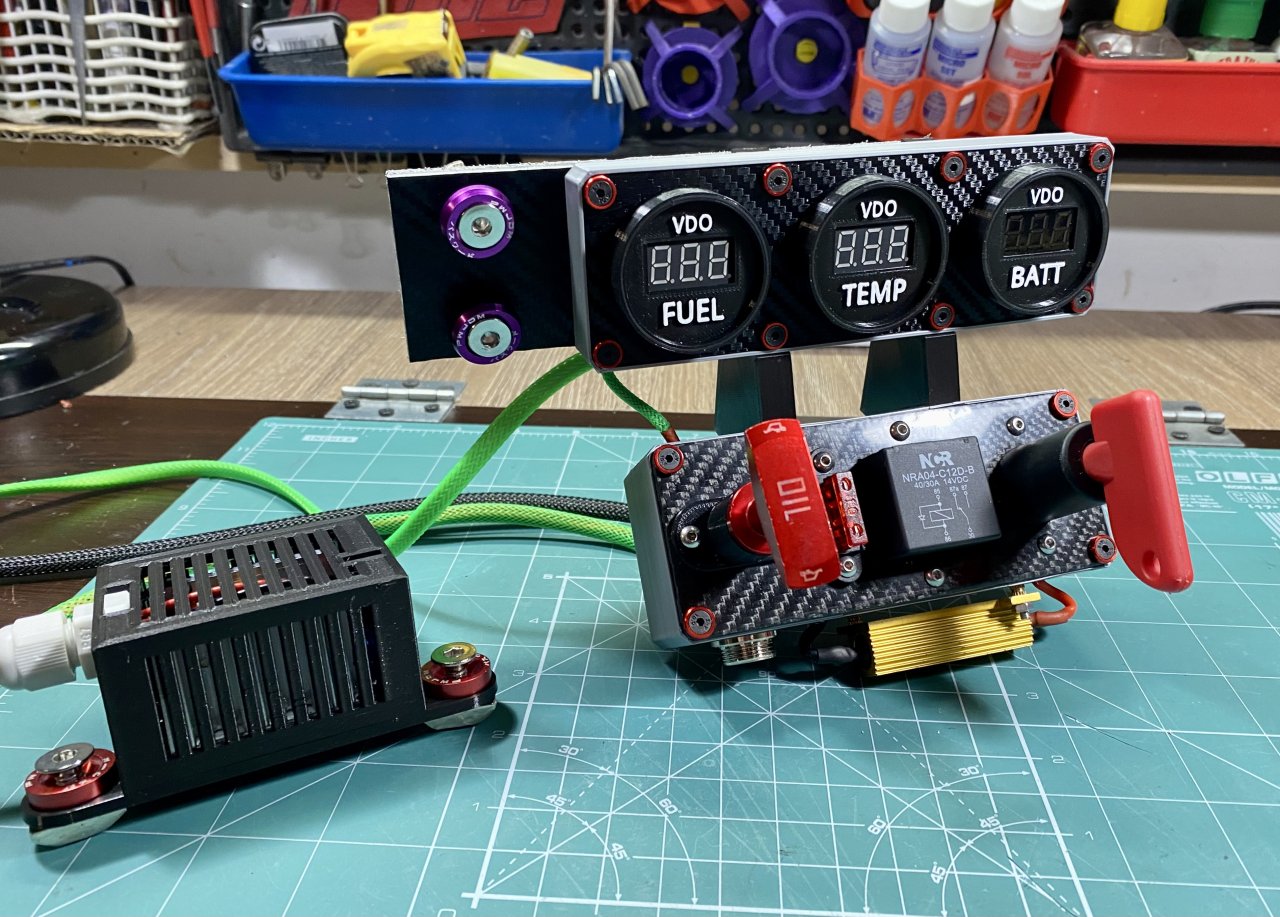

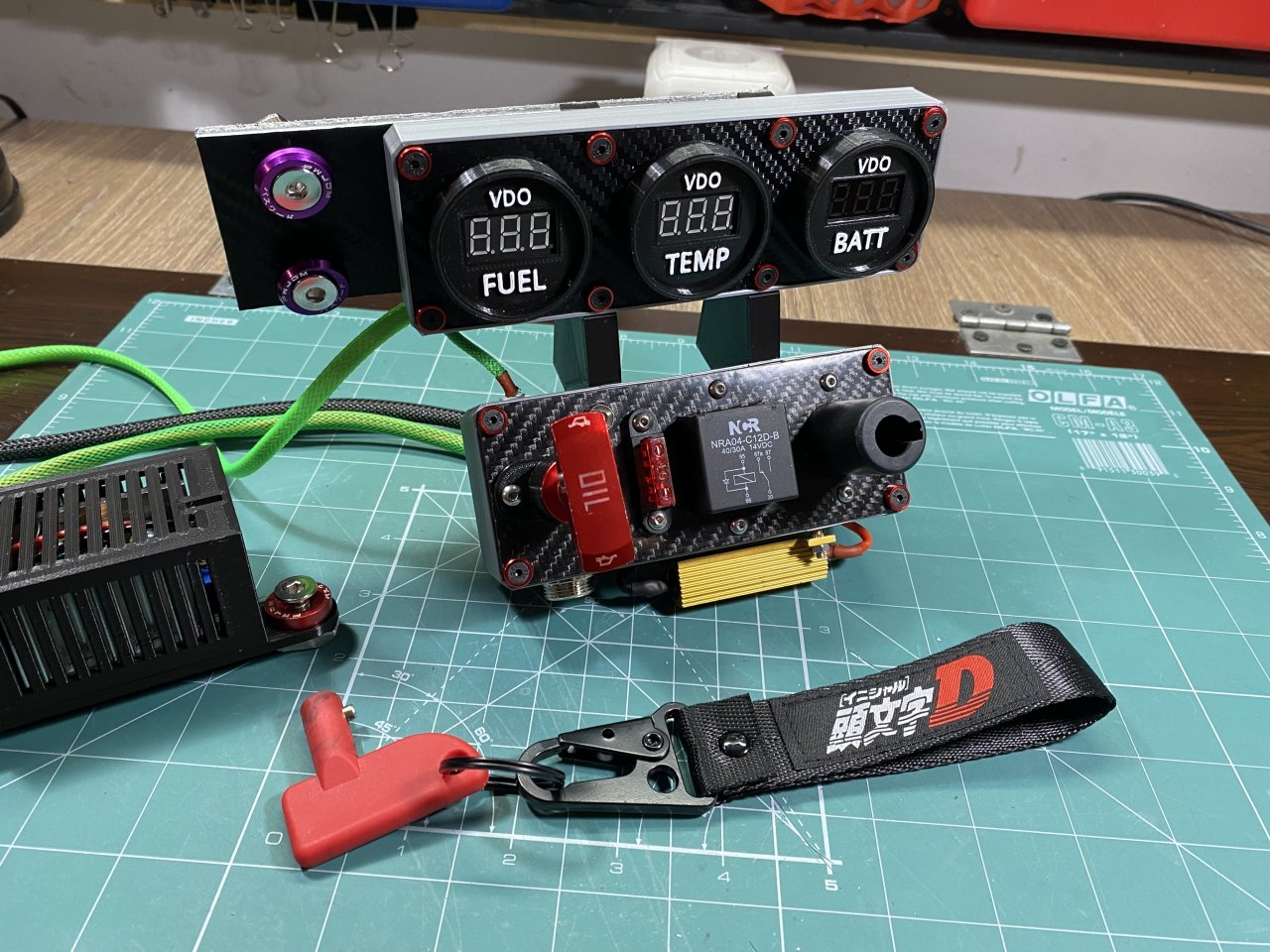

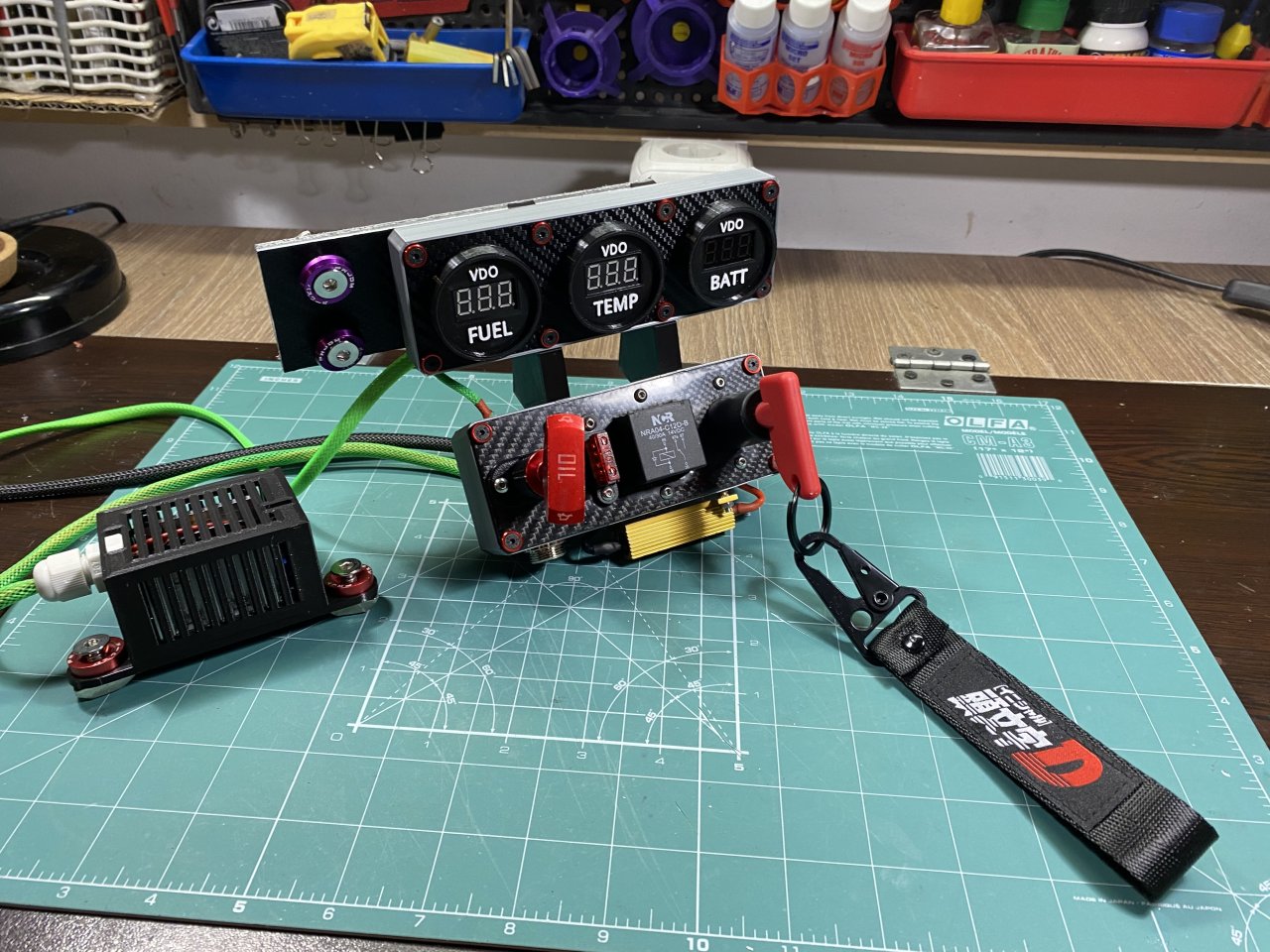

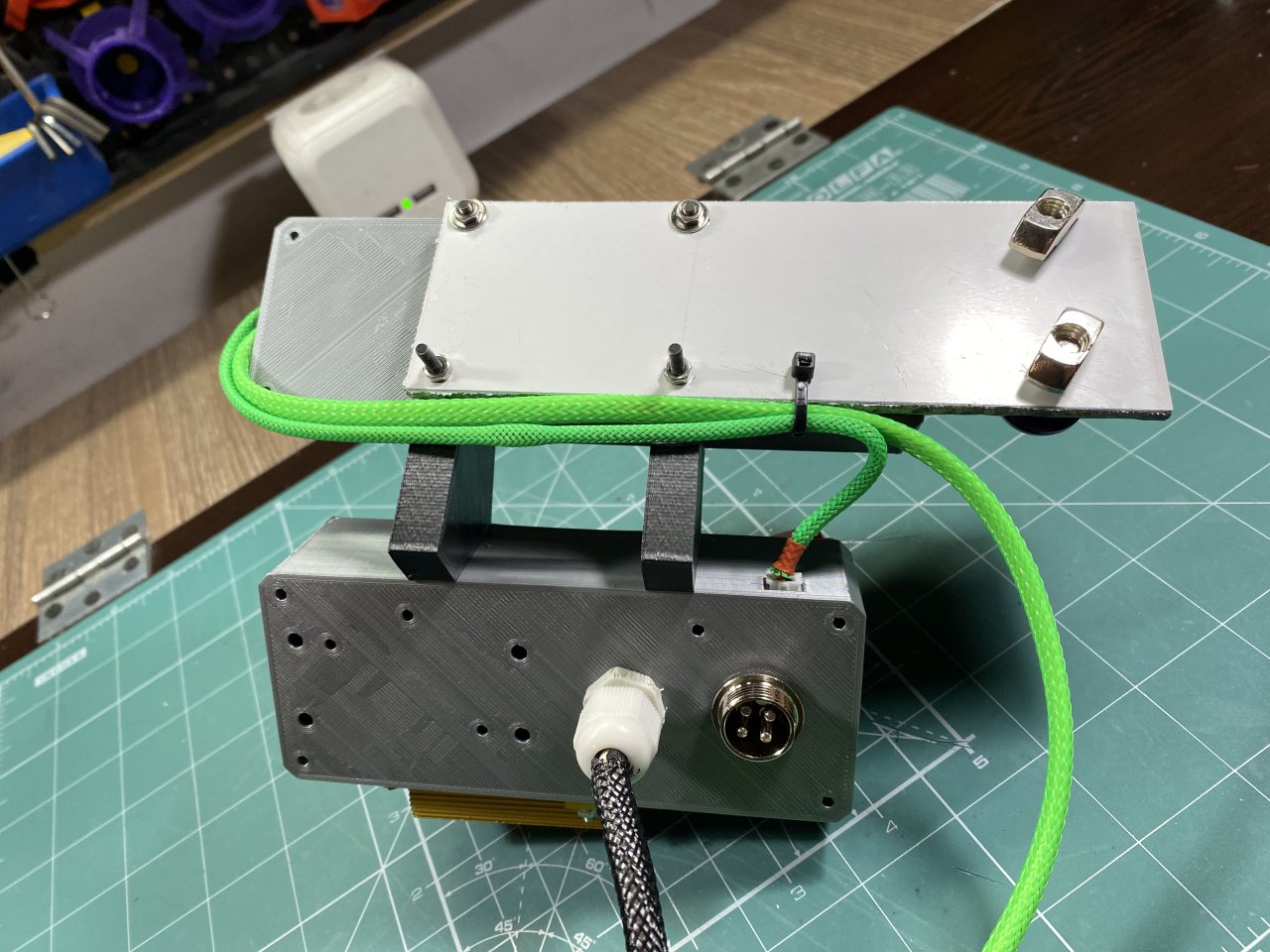

Second part of my Modular Central Console Projects. It features three gauges that can be arranged in horizontal or vertical layout. Also included in file sis the assembly bracket to put the display horizontally together with the PSU control module.

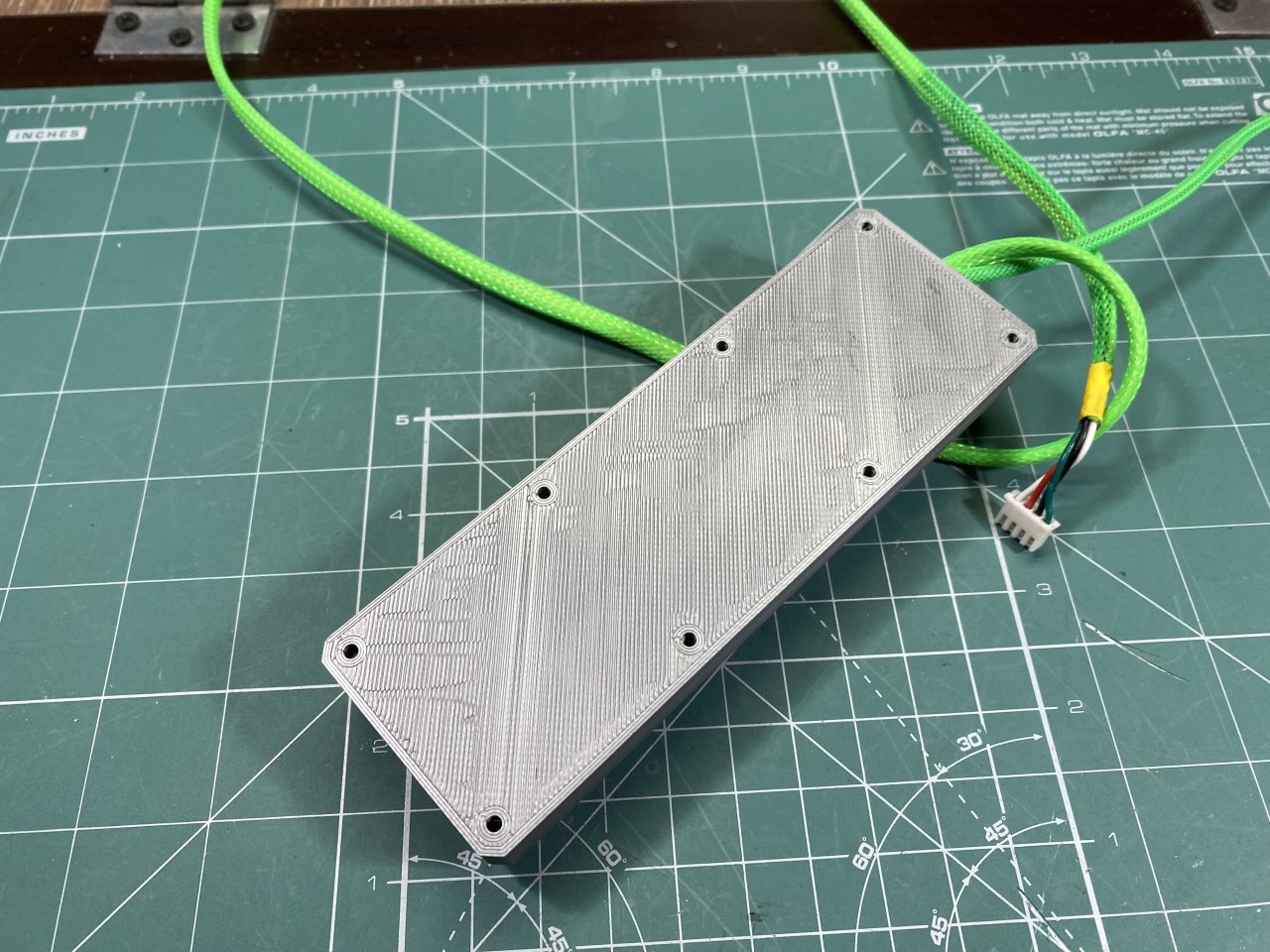

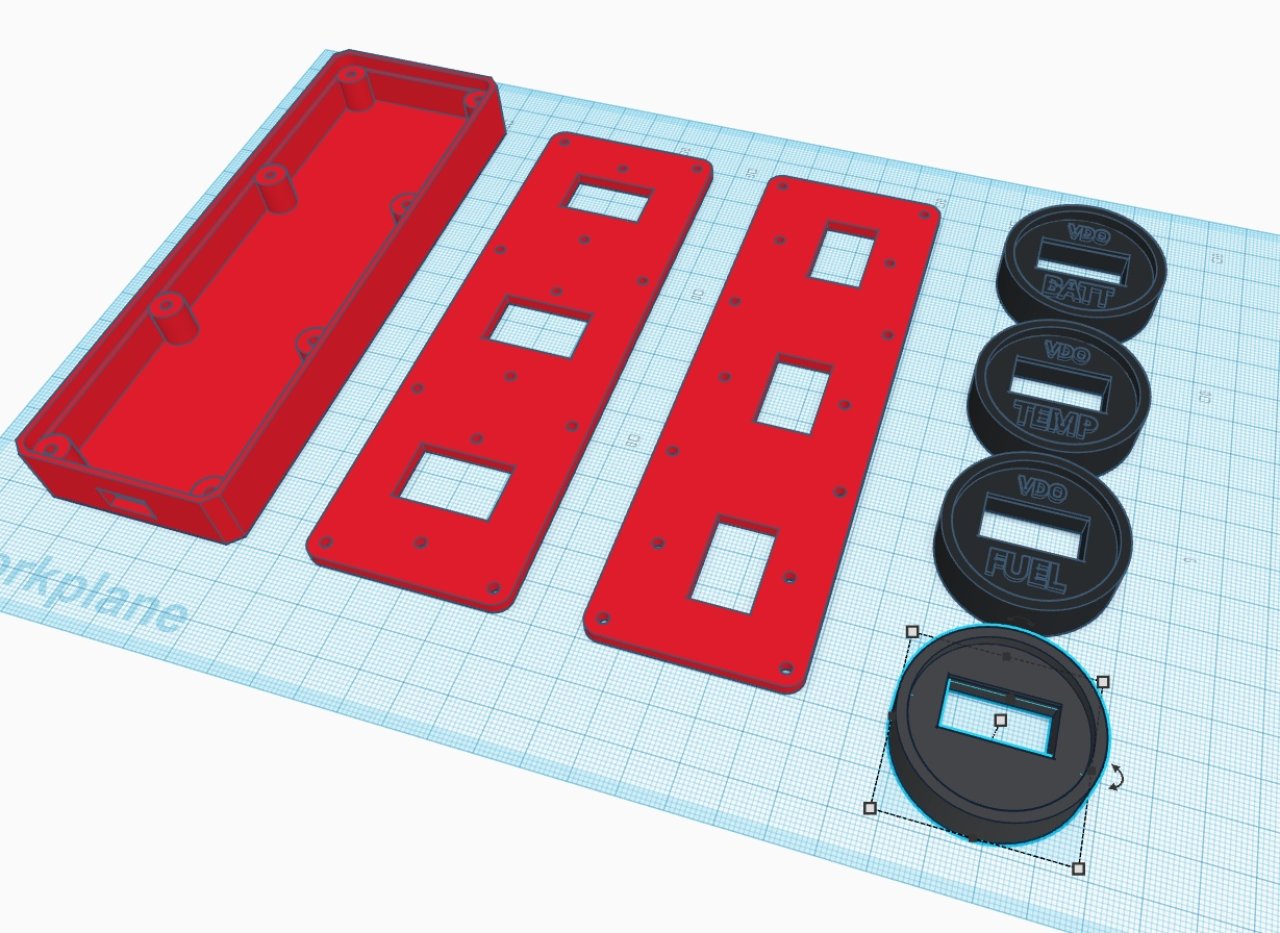

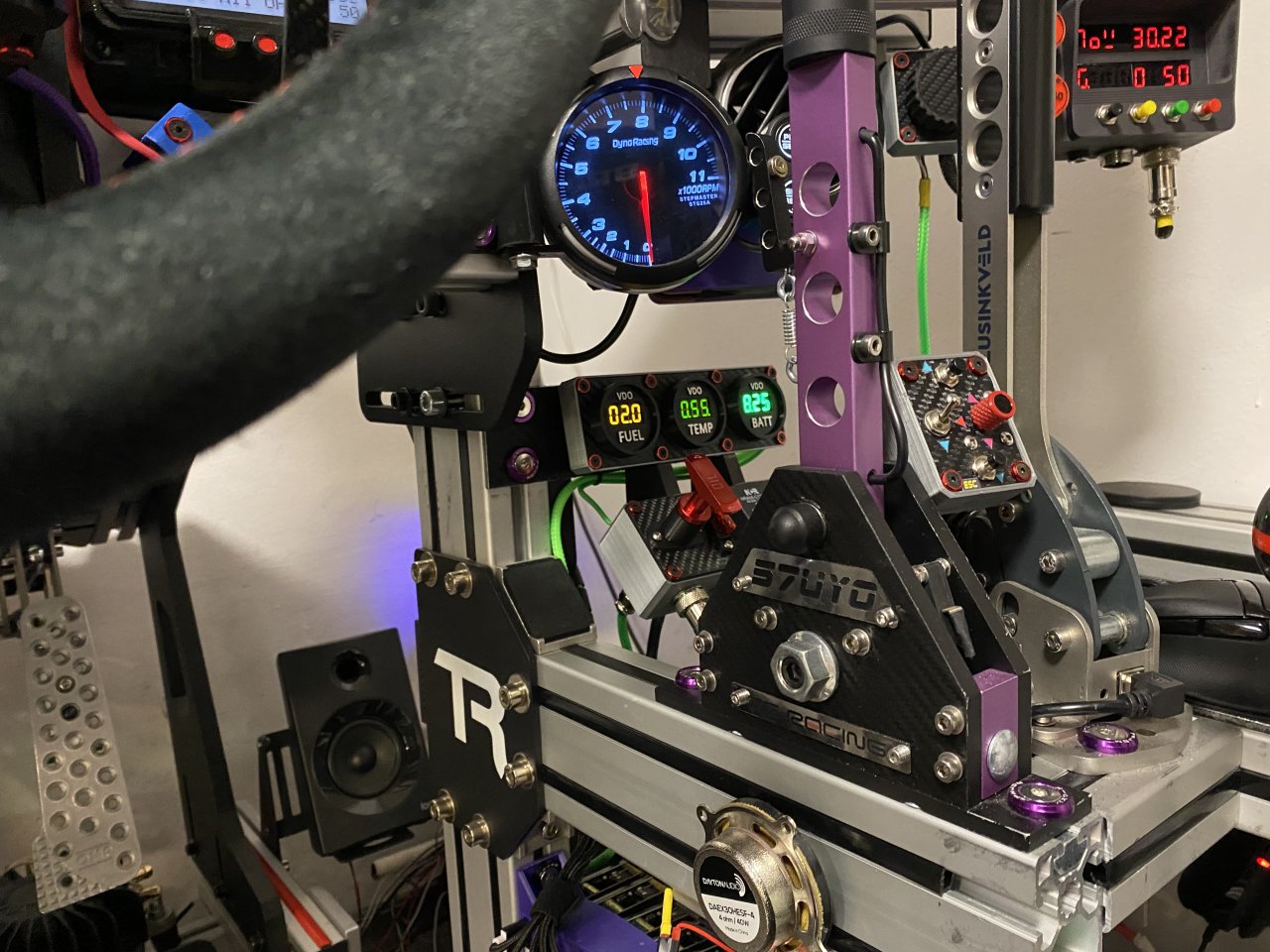

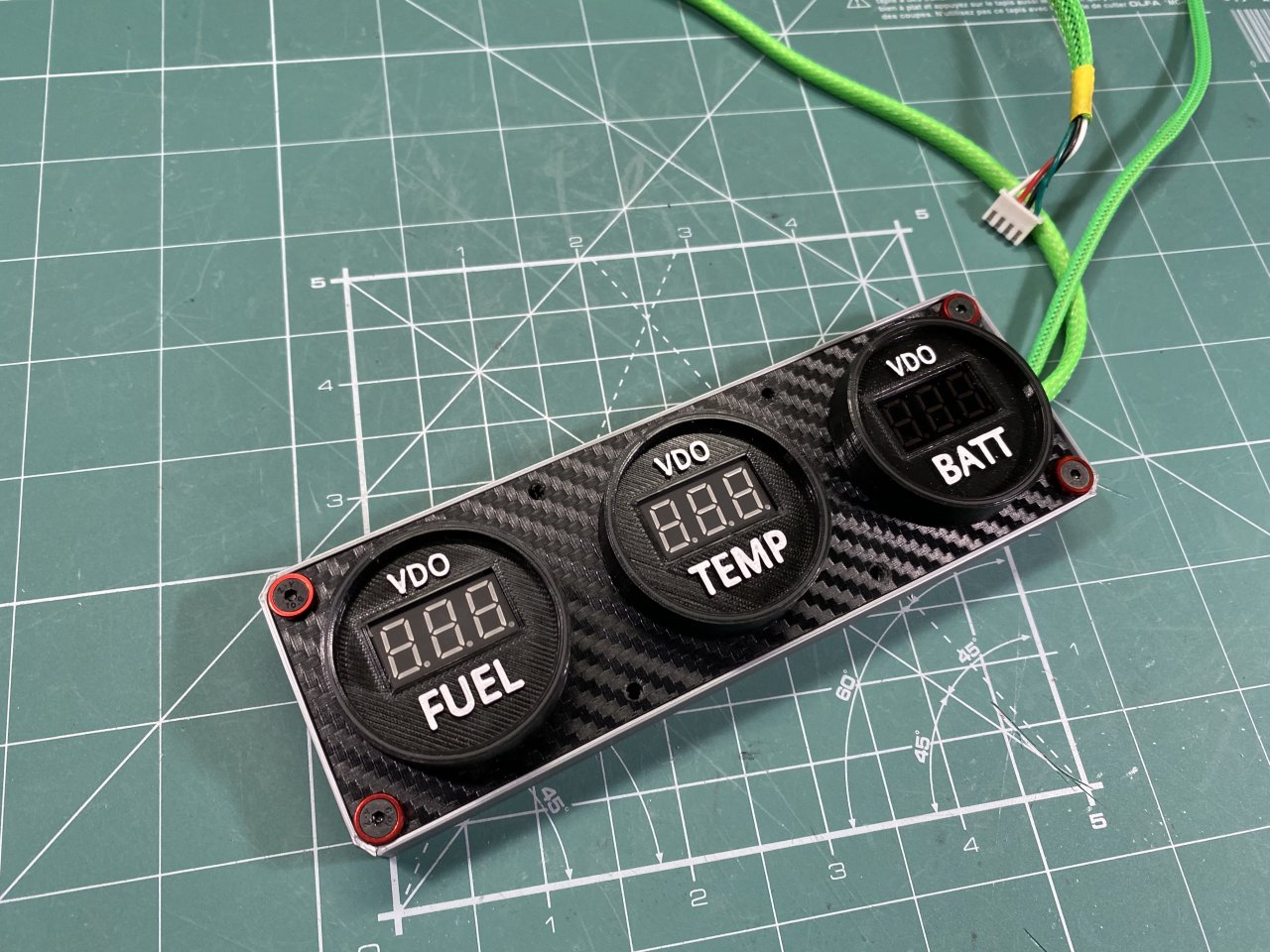

You have 4 Gauges designs in the files - TEMP, BATT, OIL and clear one that can be used to put custom sticker.
It accept 0.36" Arduino time displays and voltmeter.

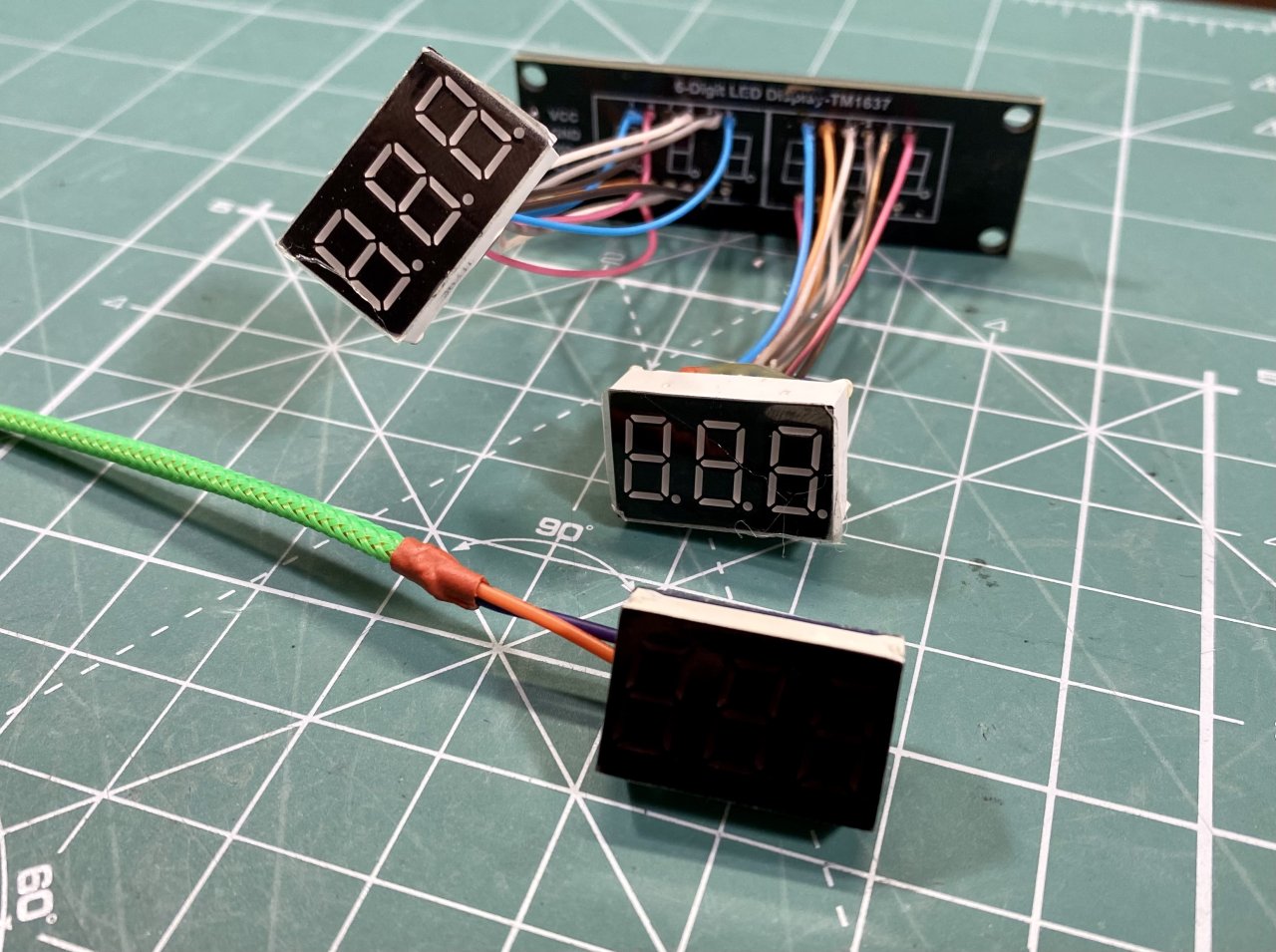

Soldering the time display is little fiddly - you have to de-solder the display elements and run wires to them. It requires some soldering skills but is doable - quite satisfied with the outcome.
Parts needed:
- 0.36 Inch 6-Digit 7 Segments Digital TM1637 LED Display Screen: https://www.aliexpress.com/item/1005001579119253.html
- 0.36 Inch Red Blue Digital LED Mini Display Module DC2.5V-32V Voltmeter: https://www.aliexpress.com/item/1005003922676564.html
- M3 mounting hardware
- Wires, connectors
Print settings:
- Resolution: 0.2mm
- Infill: 20%
- Supports are not needed if your printer can make good bridges. If not - print gauges with support.
- Walls, top/bottom layers: 5
-
