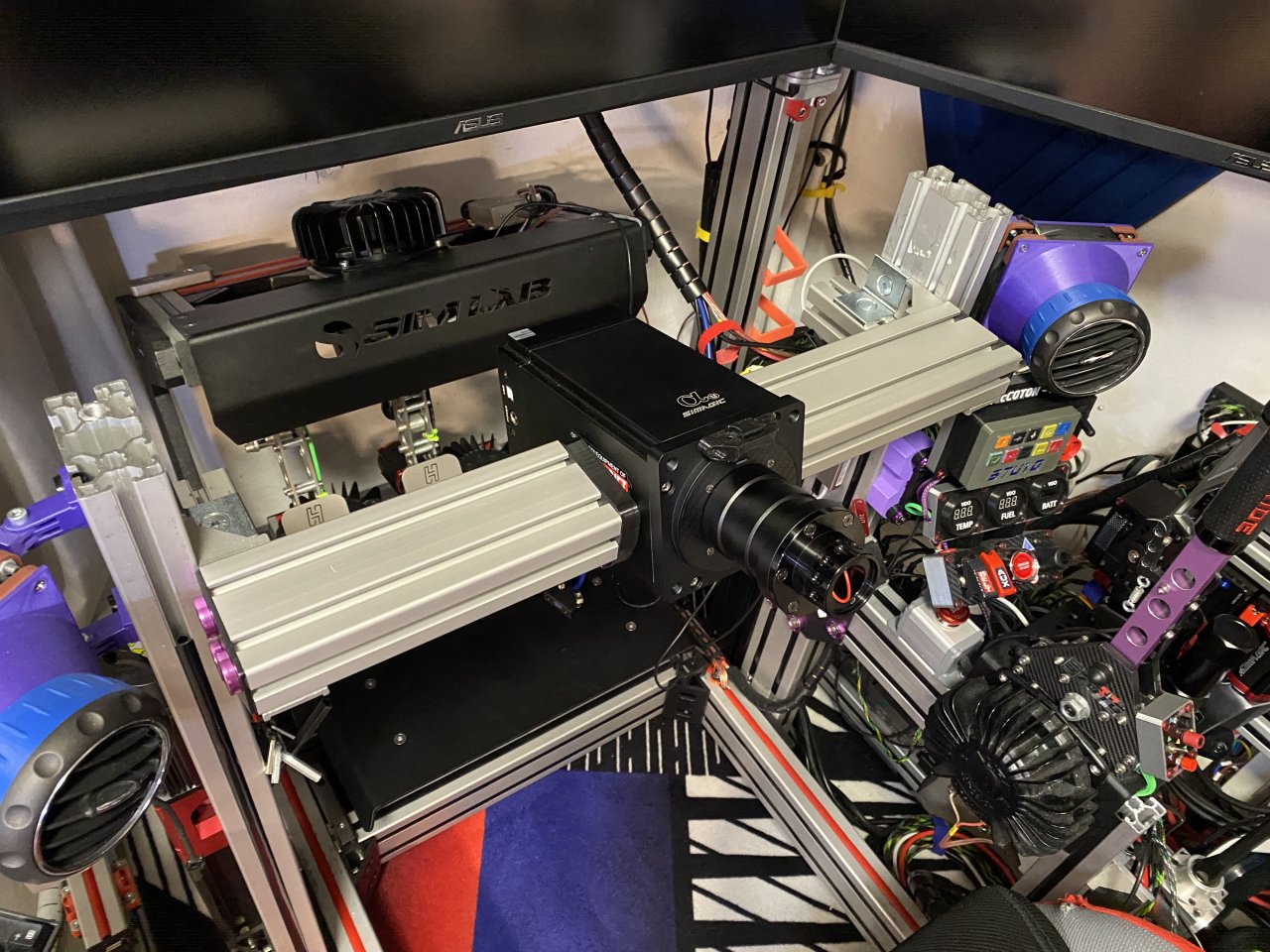

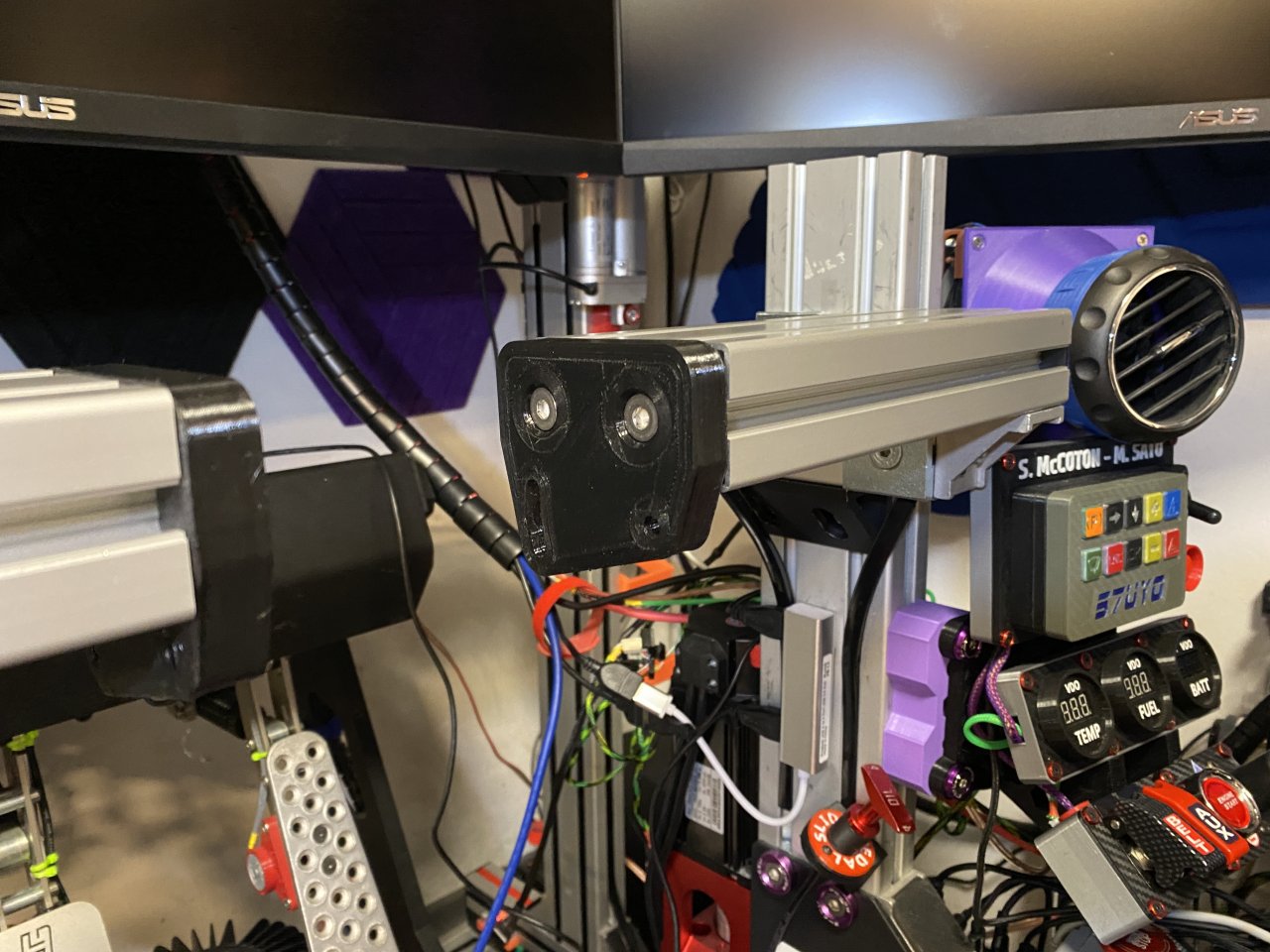

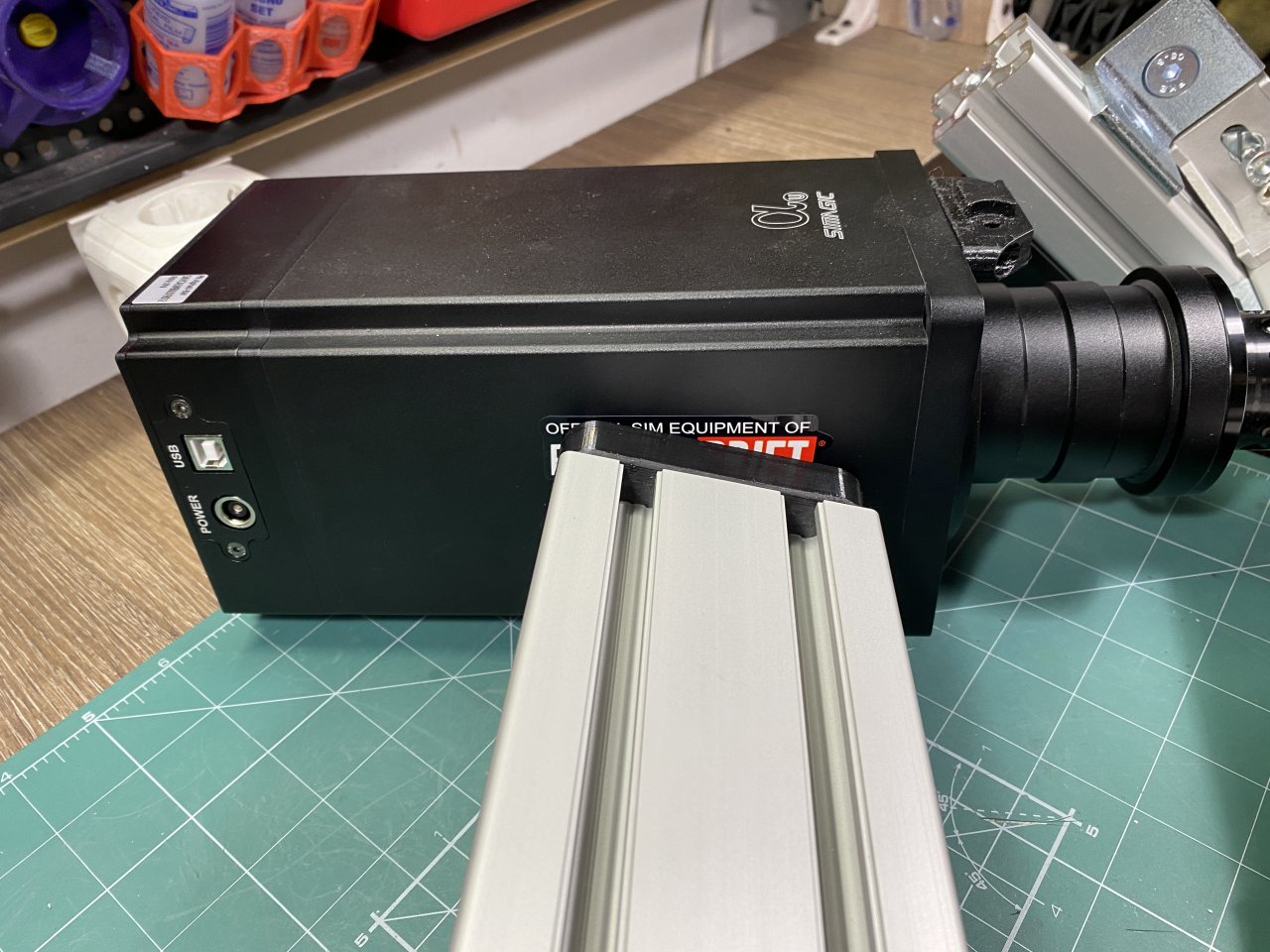

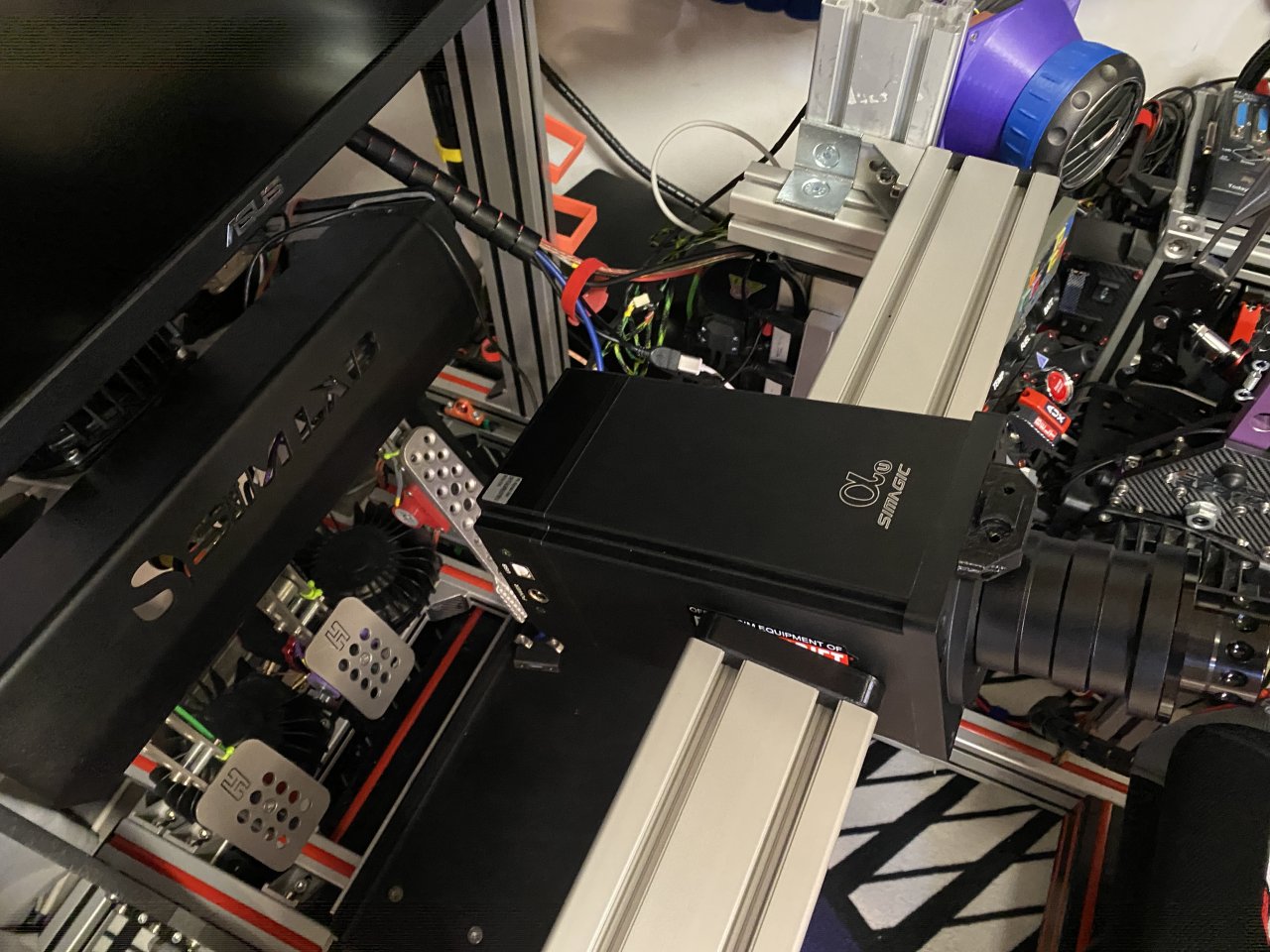

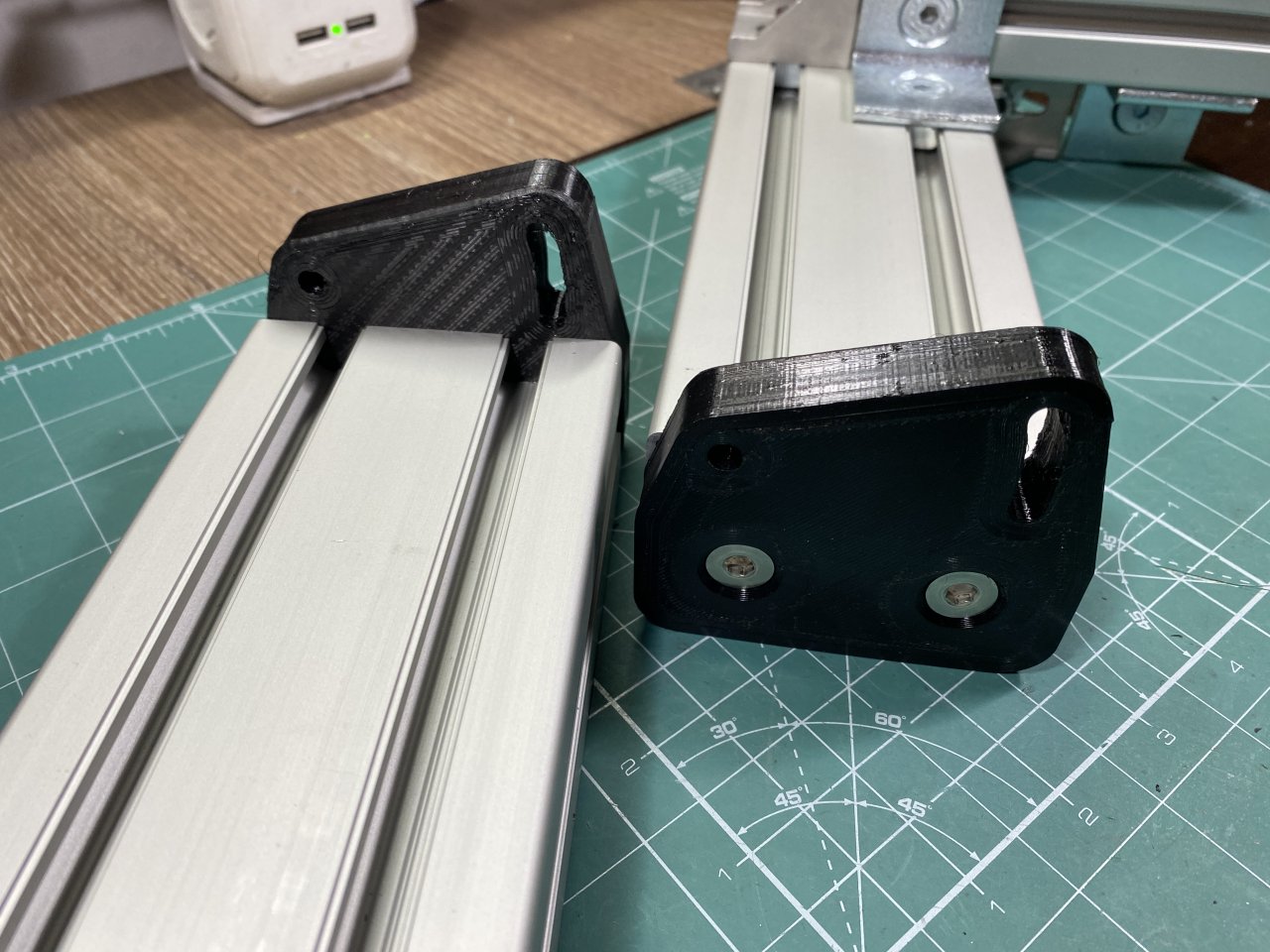

Simagic Alpha Wheelbase plate to work with my Universal Side Mount Wheeldeck. Should fit all Simagic Alphas as they share the same mounting options.
Was surprised how stable it is compared with the Fanatec one I had before, but this is much smaller plate so I was hoping for such outcome.

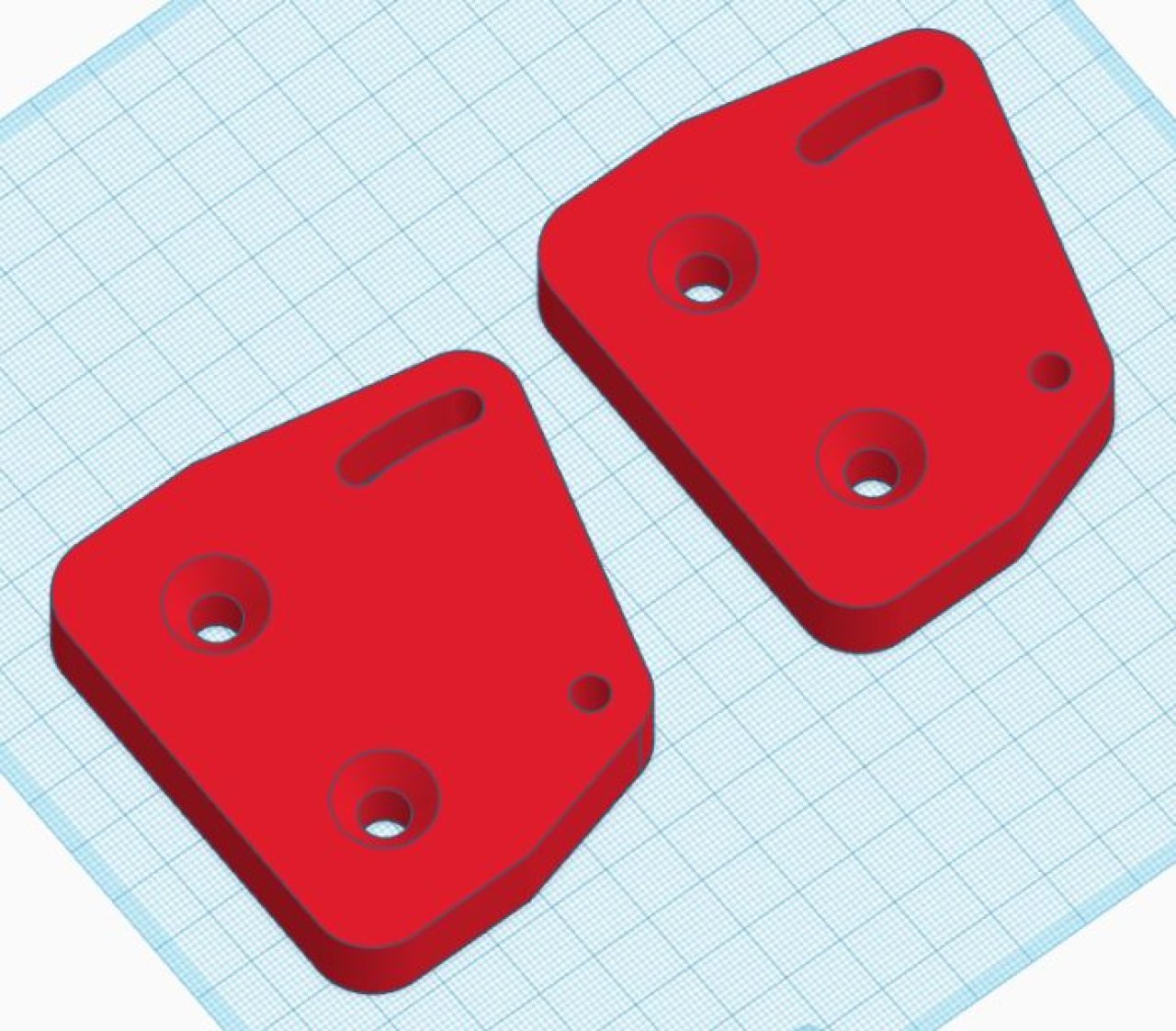

Package has two version - Longer and Shorter. Longer one provides full range of rotation (about 22 degrees) with the M6 ALU washer. Shorter one will not allow you to tilt the base down if you use the Alu washers, but is much smaller so ultimately leads to faster print and less flex.
Angle adjustment is between -5 to +17 degrees.
-

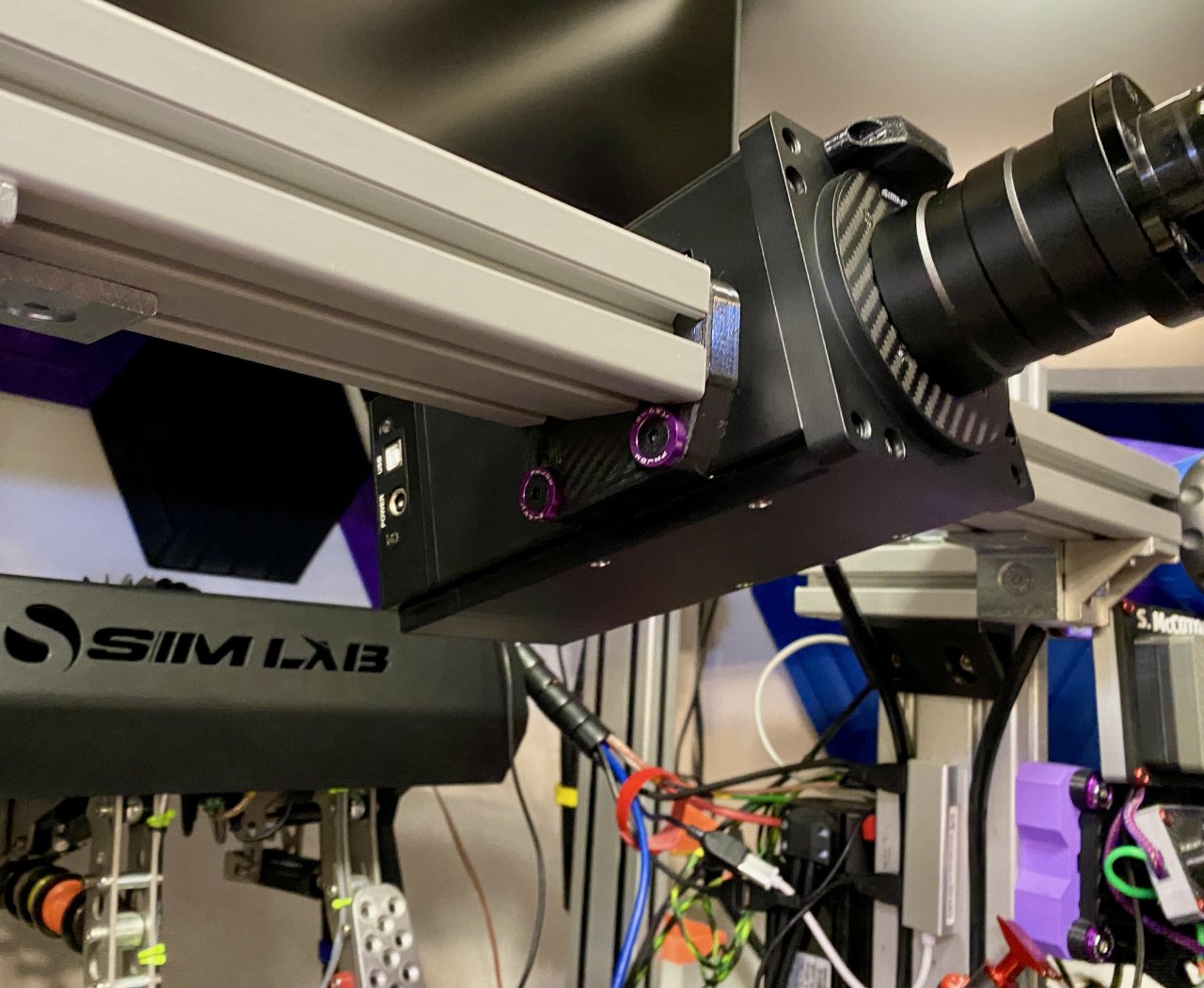

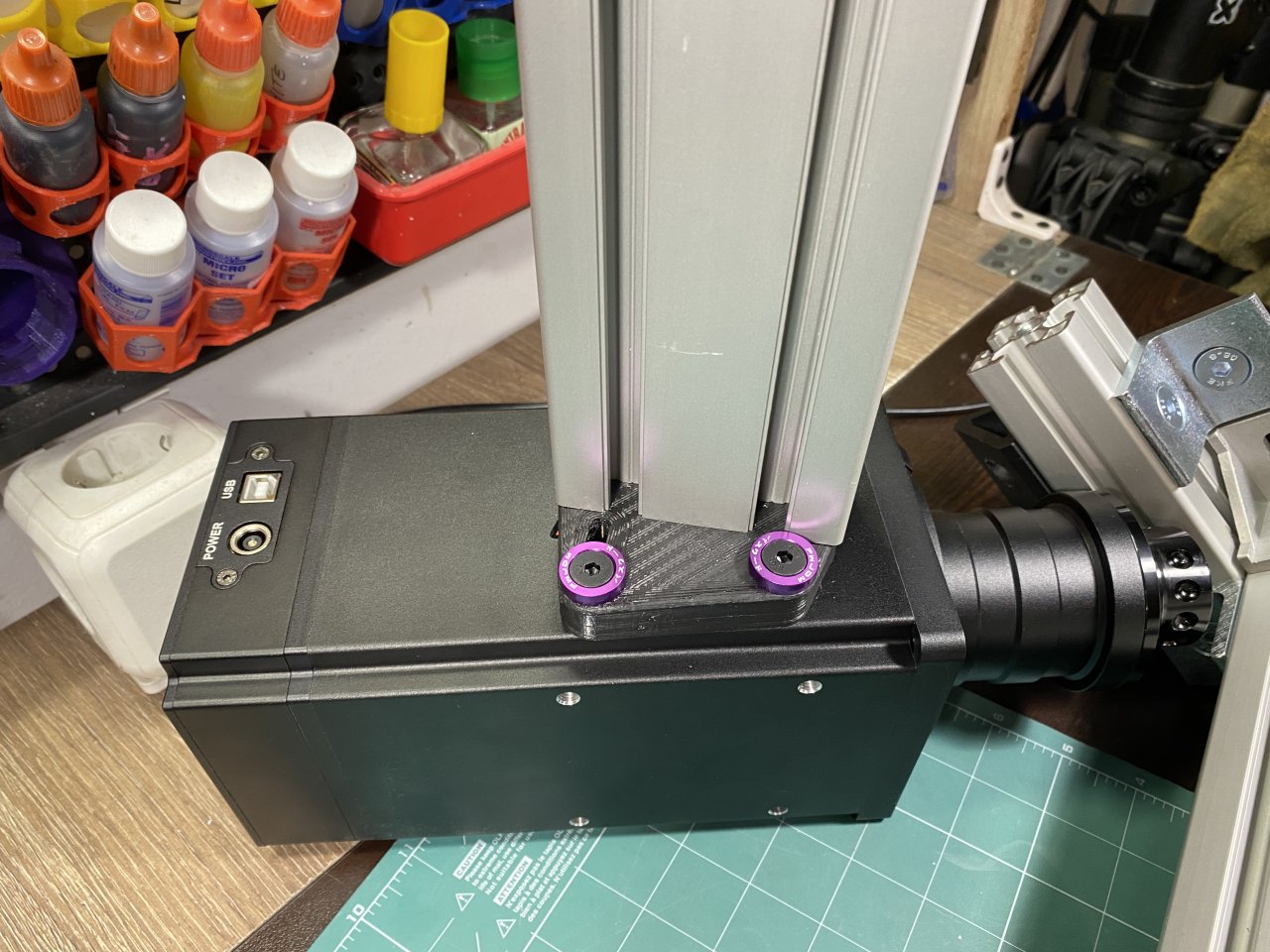

Designed to accommodate M6 JDM Alu Bumper Washer/Screws, of course it will need longer screws though. Will work with regular M6 bolt and washer, but I prefer the cool look and wide contact area of the JDM one.

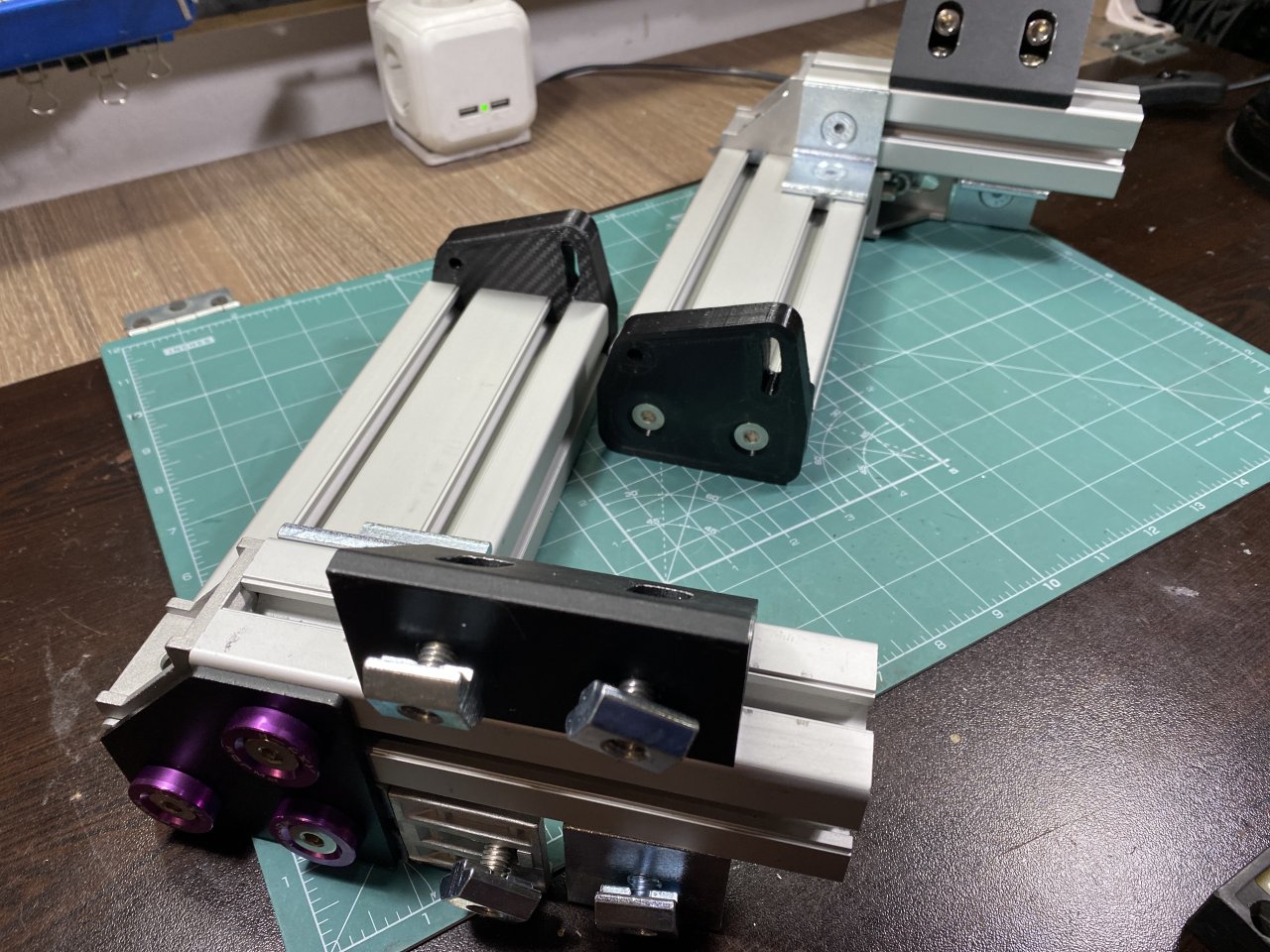

Printed in PETG, 12 sides, layers top and bottom, 50% infill for extra support.
Would be much better with stiffer filament or ideally cut from Alu plate. Was considering Carbon Skinning it for extra stiffness just to see how it works, but was to lazy to do so.
