Push-Pull Rally Paddle Shifter V1
25 February 2023 | Hits: 4299 | Downloads: 217 | Sim Gear | Free | Digital
-

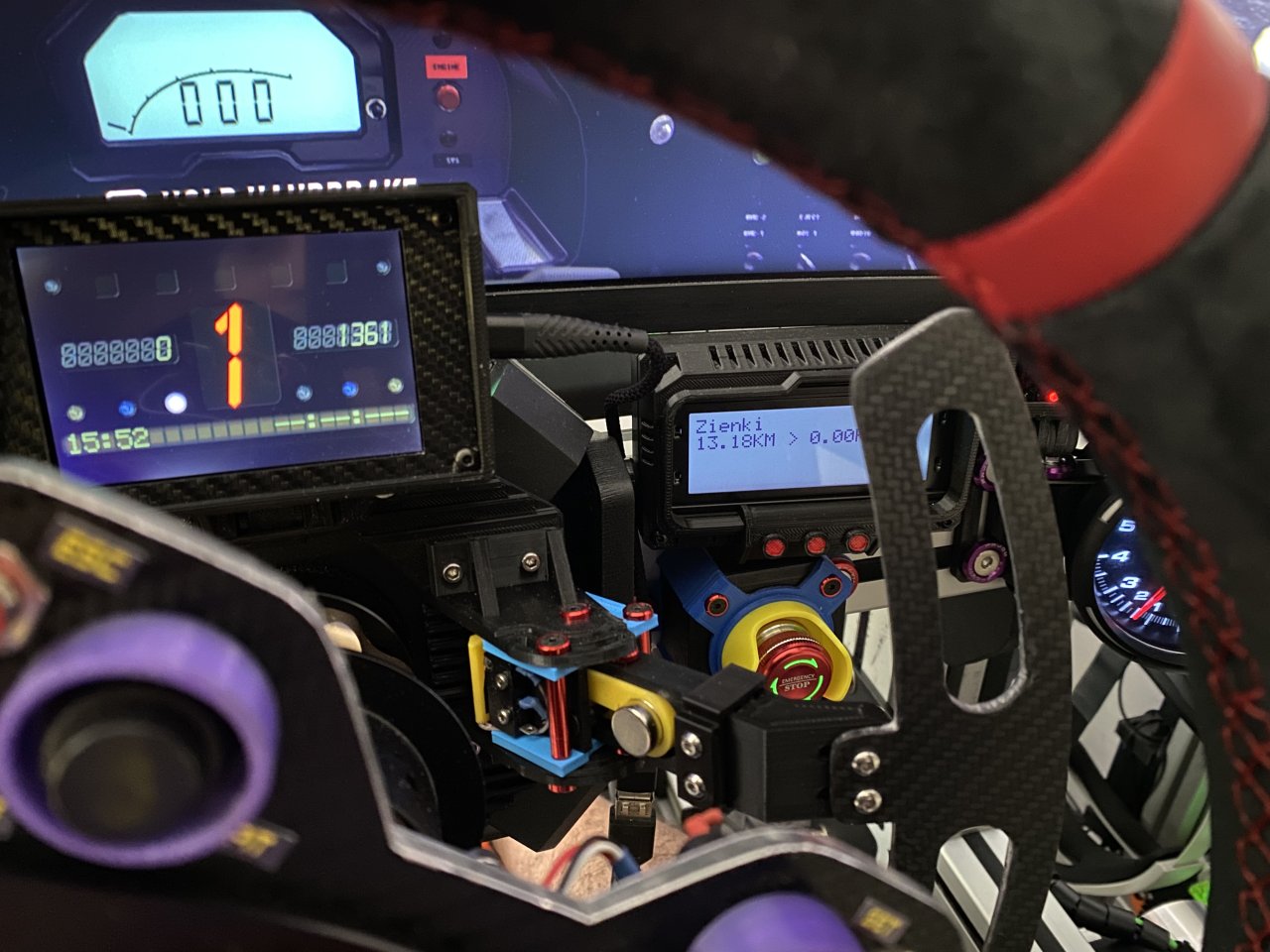

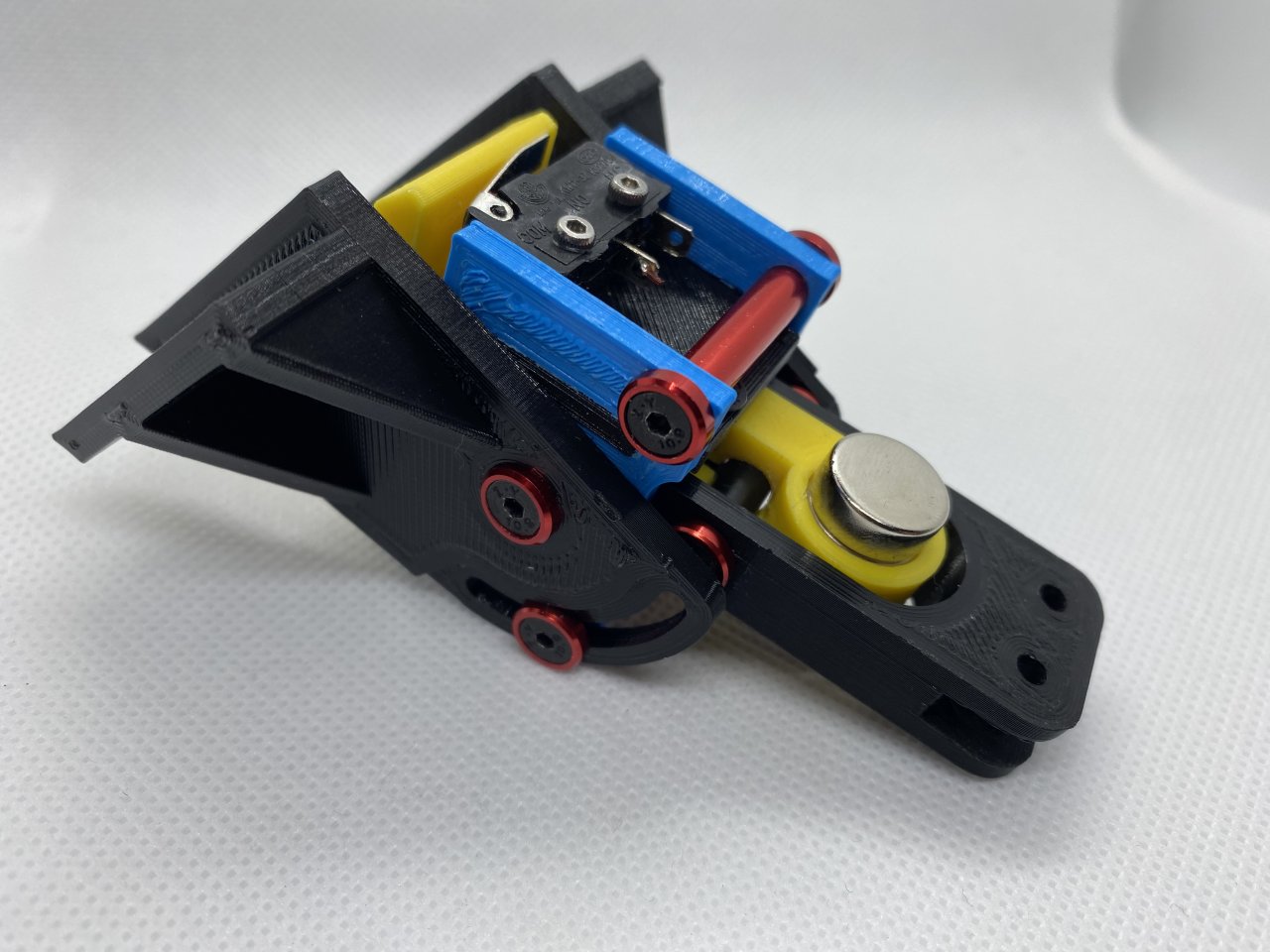

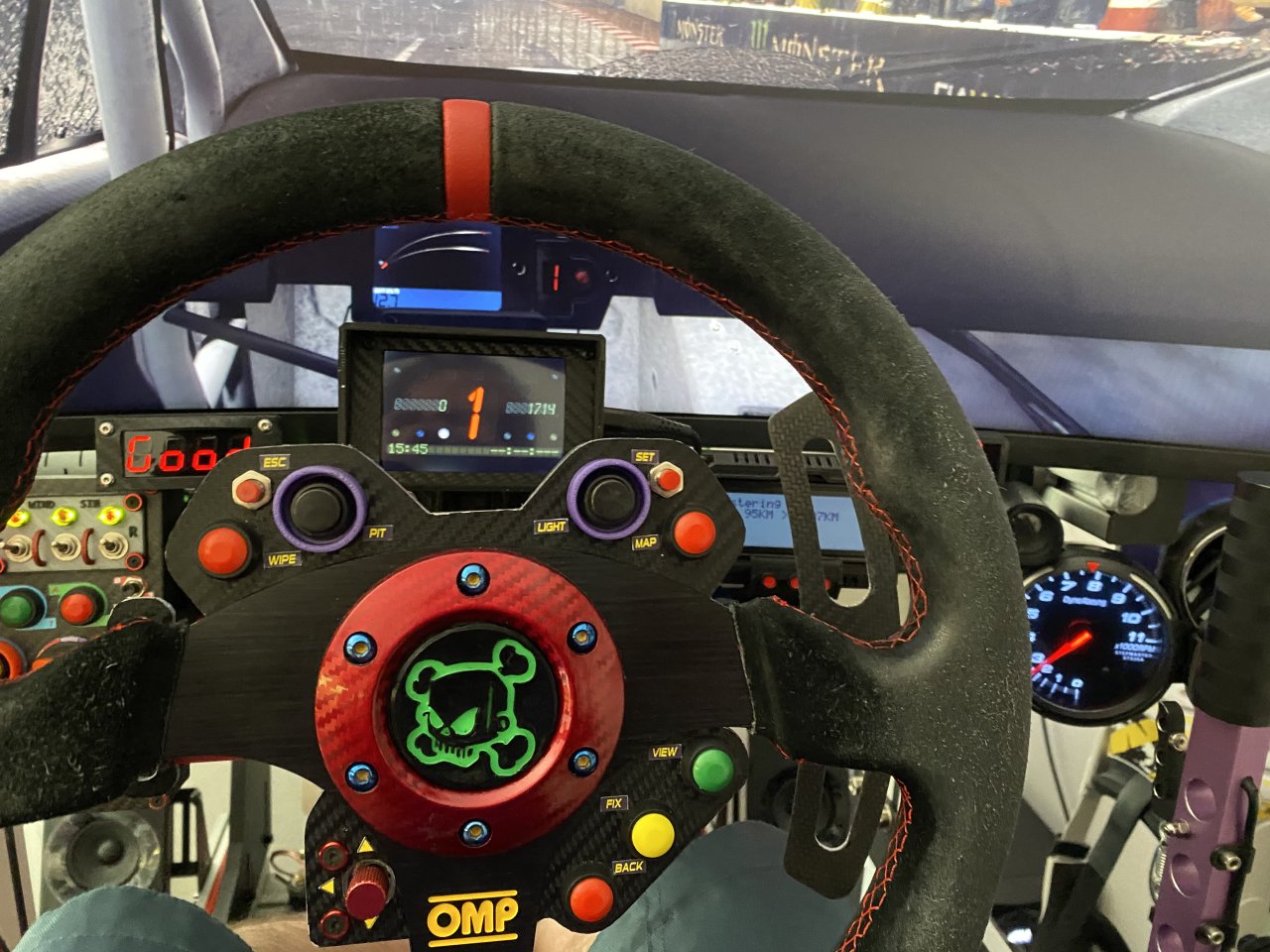

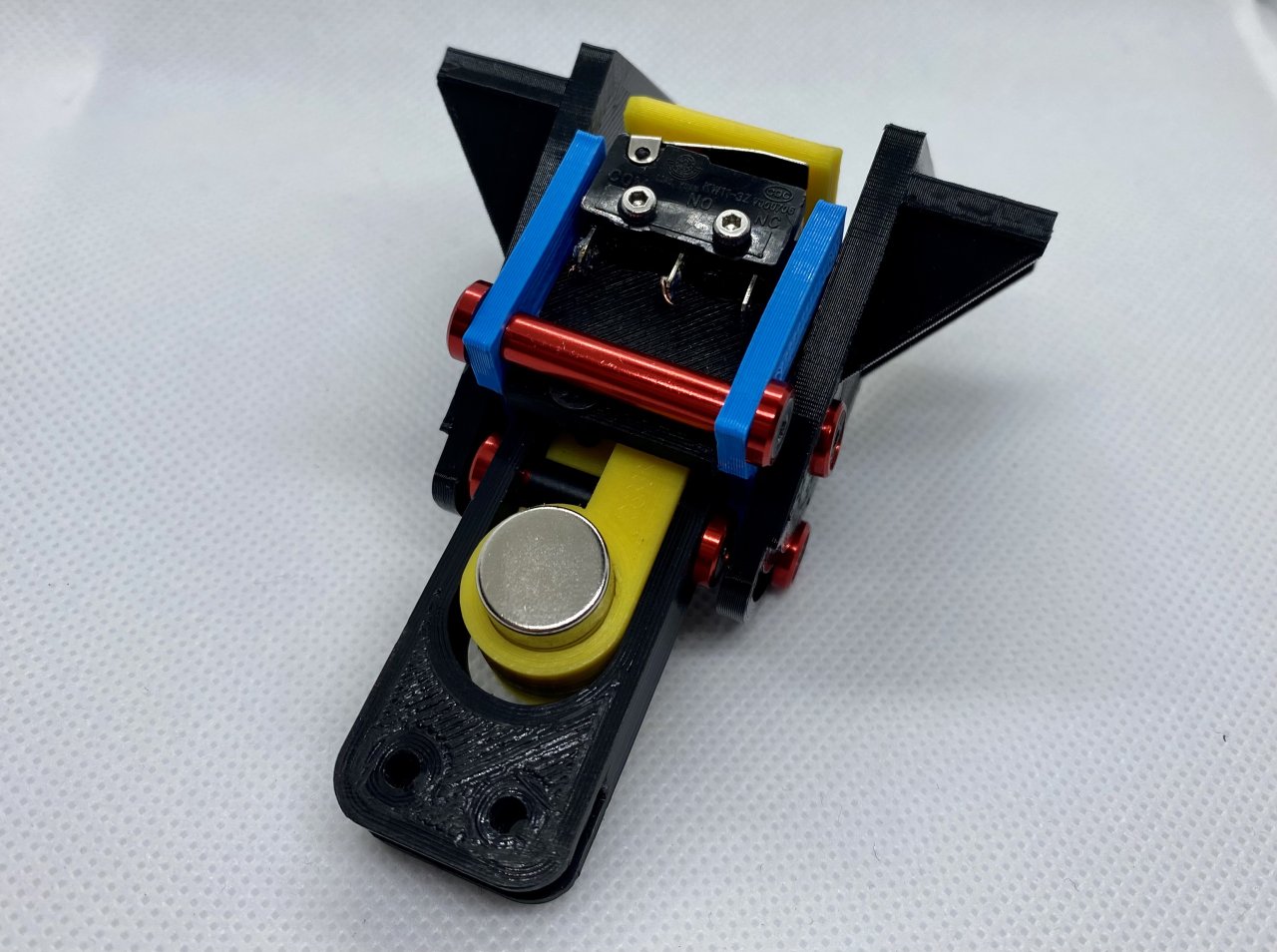

Push-Pull Rally style paddle shifter. Features QR for easy paddle removal.

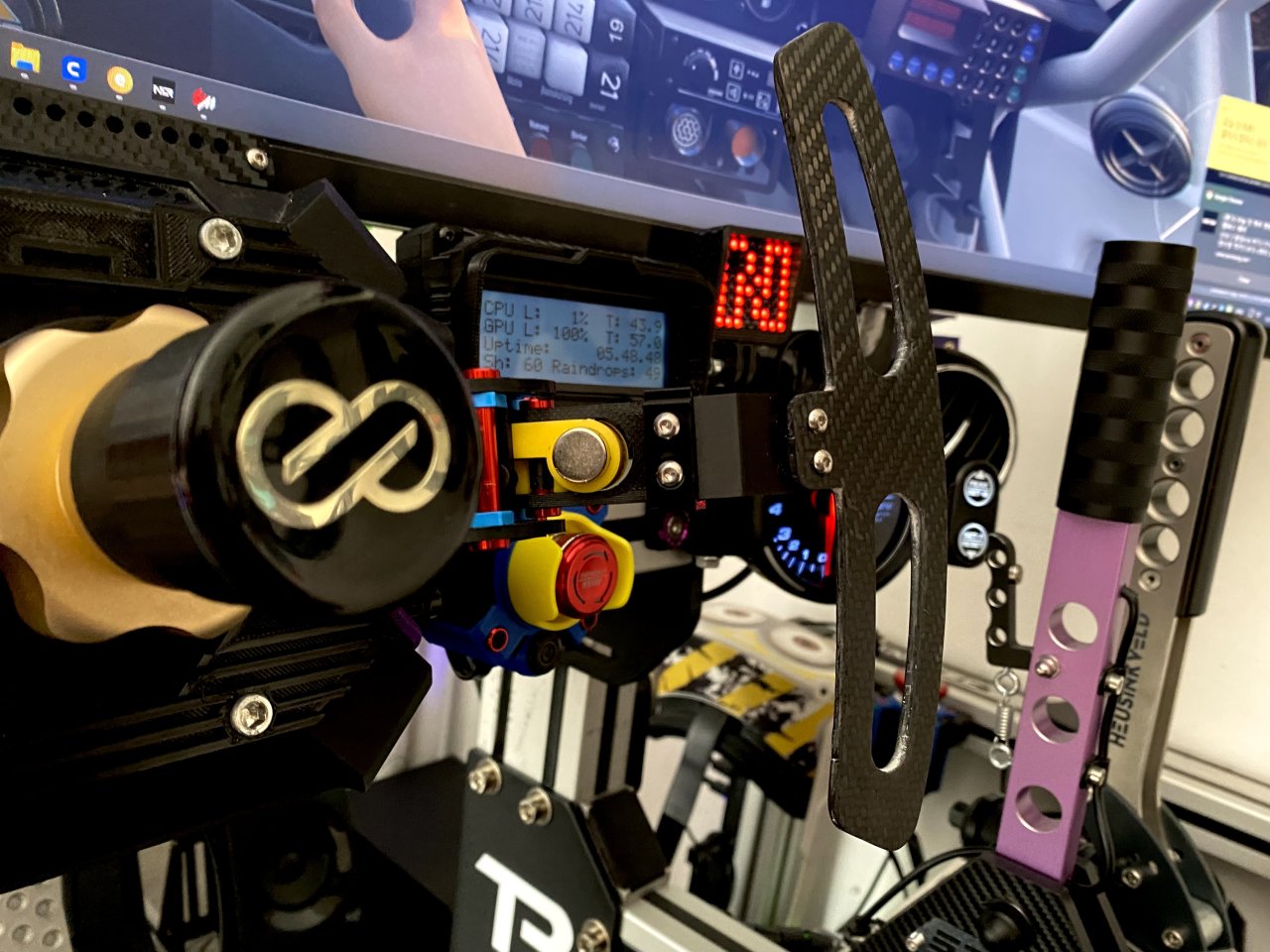

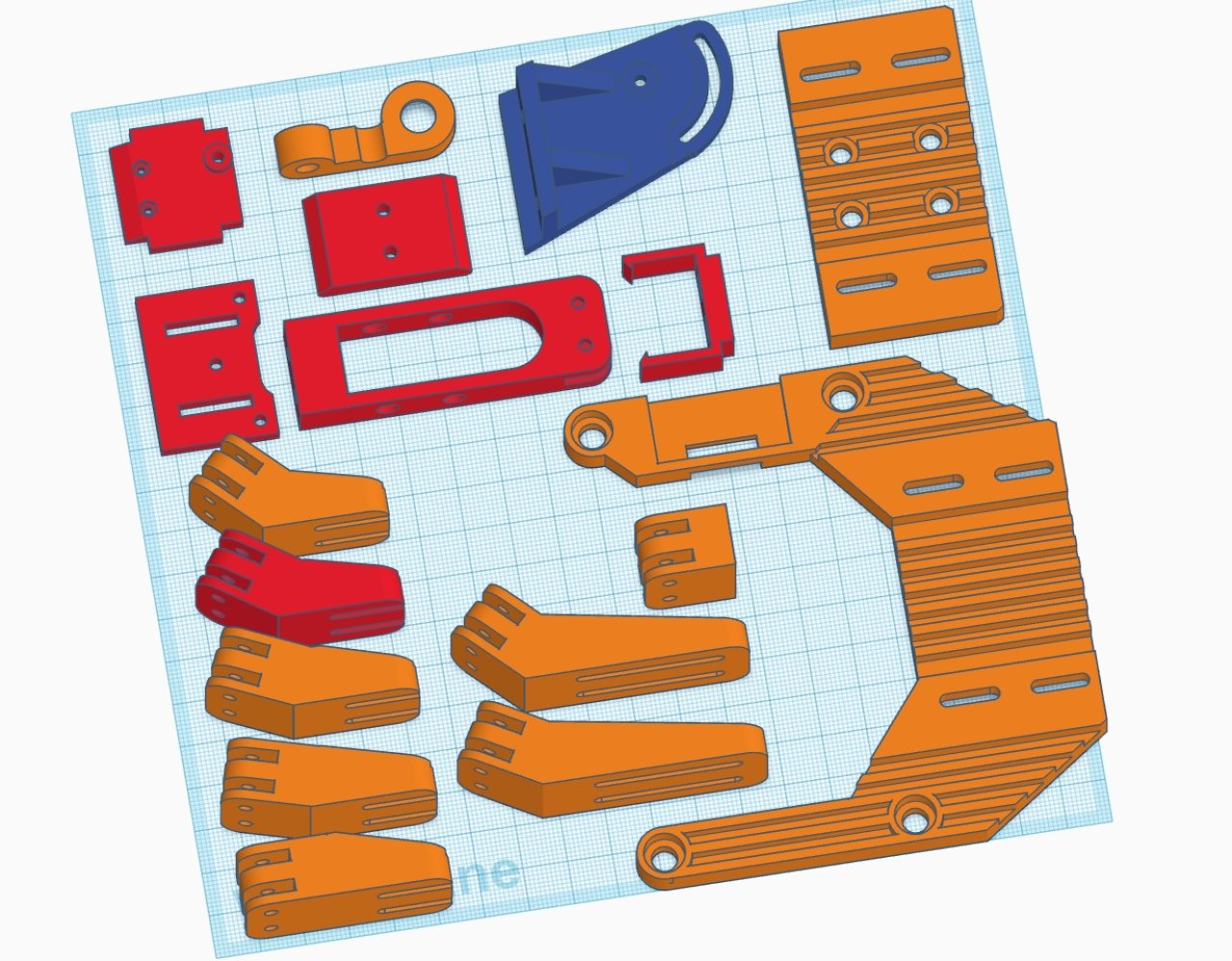

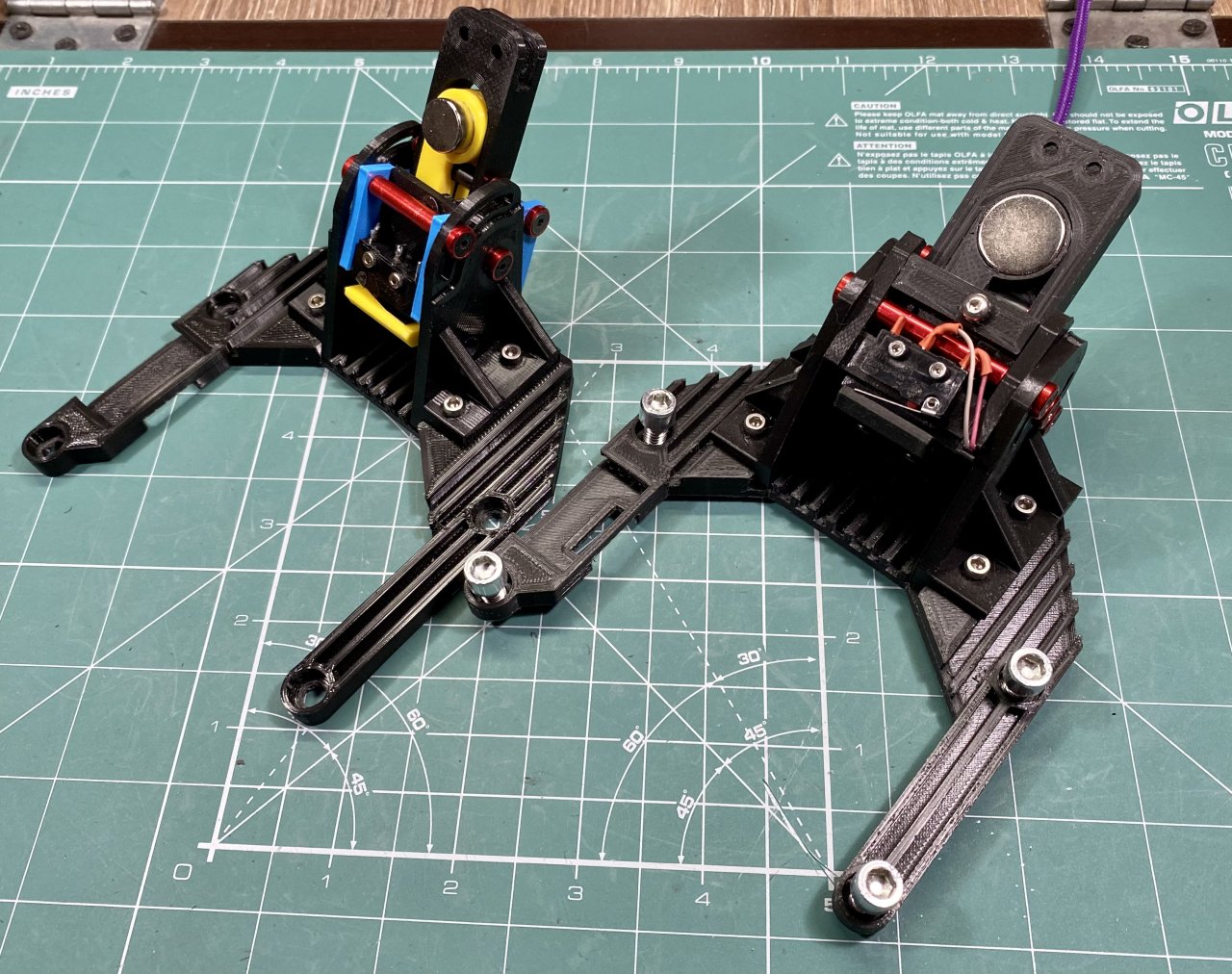

Added in package are Fanatec wheelbase mount plate and universal M5 bolt pattern. Has two long and 5 short QR arms with various angle. Has alro QR only part that you can extend yourself to whatever shape you need.

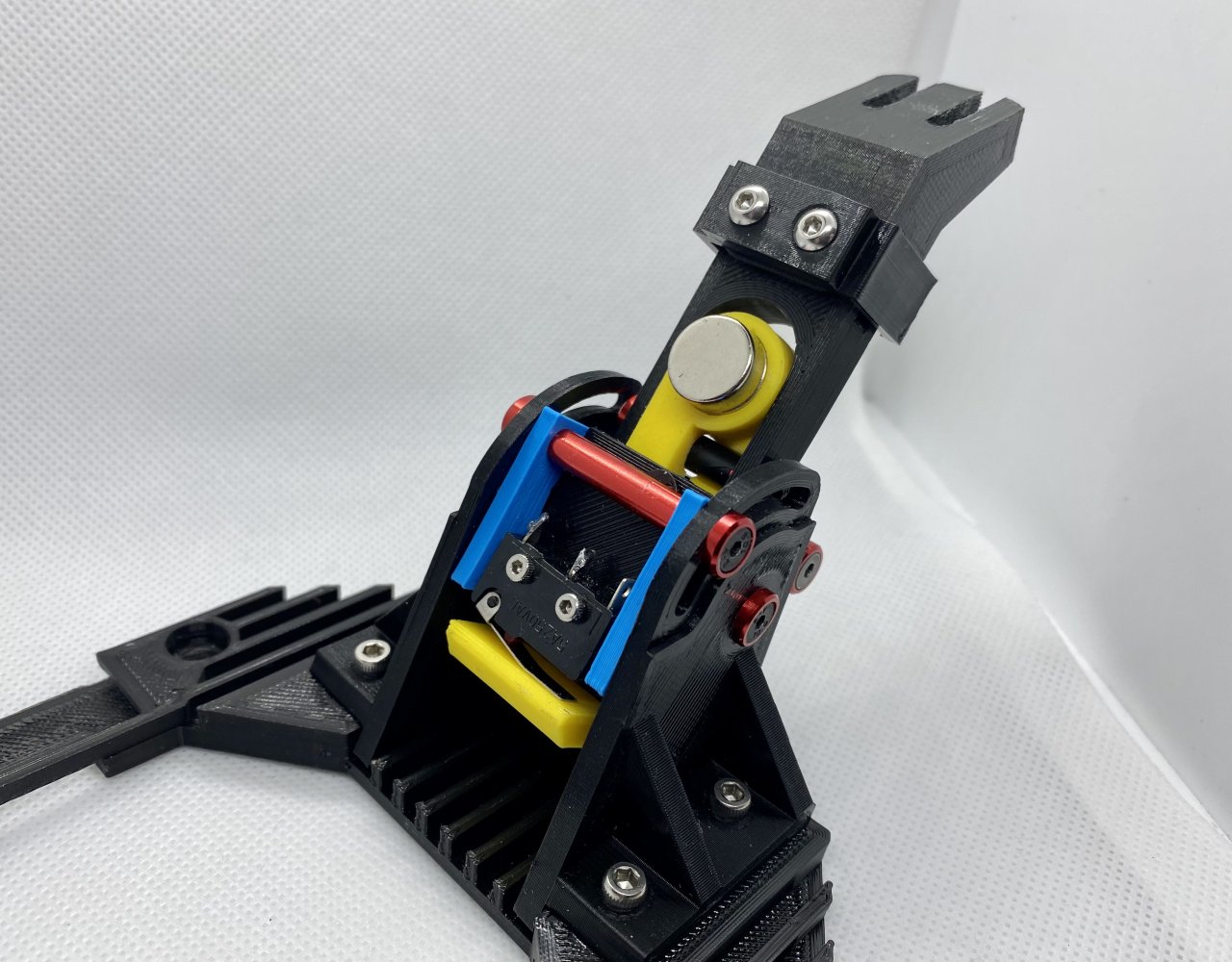

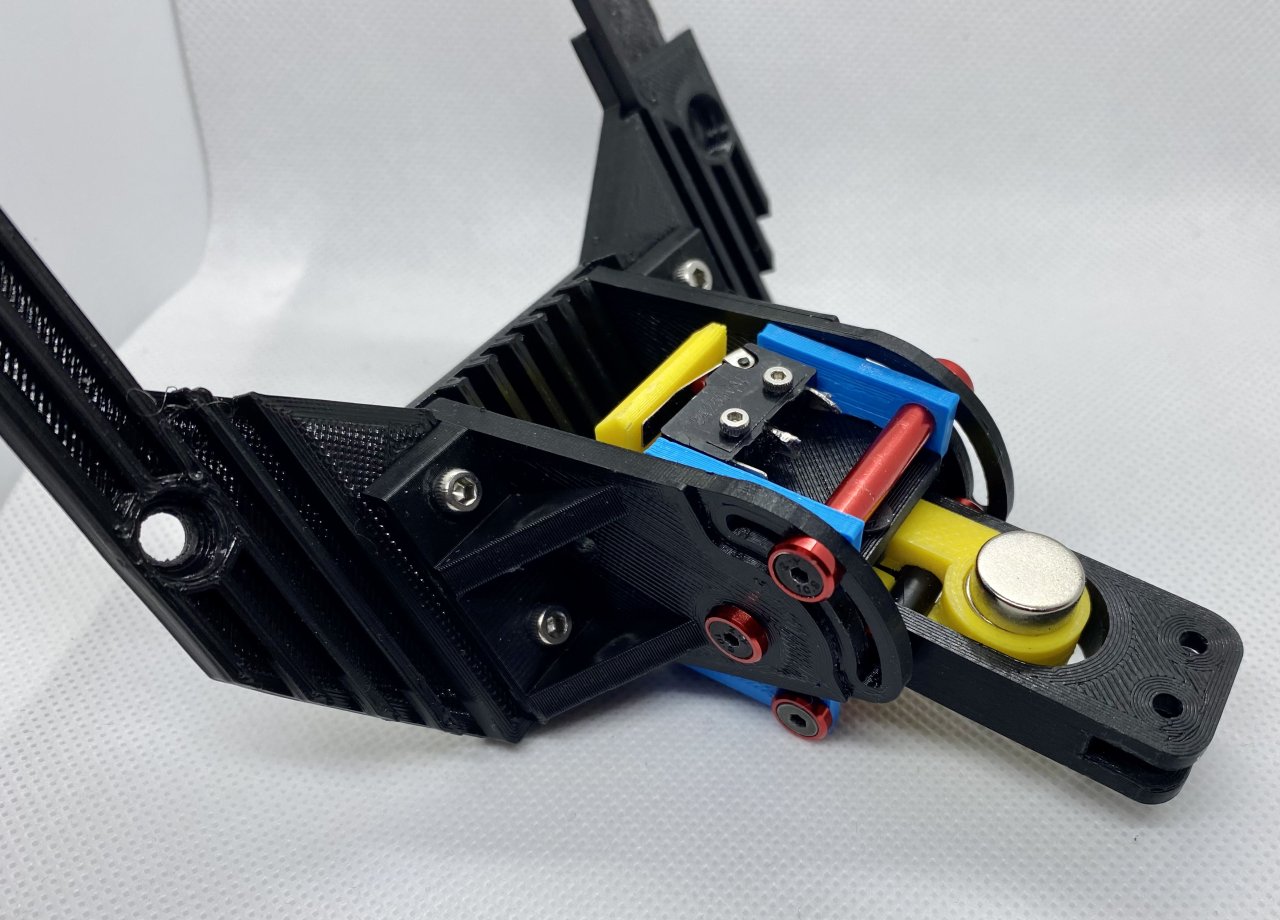

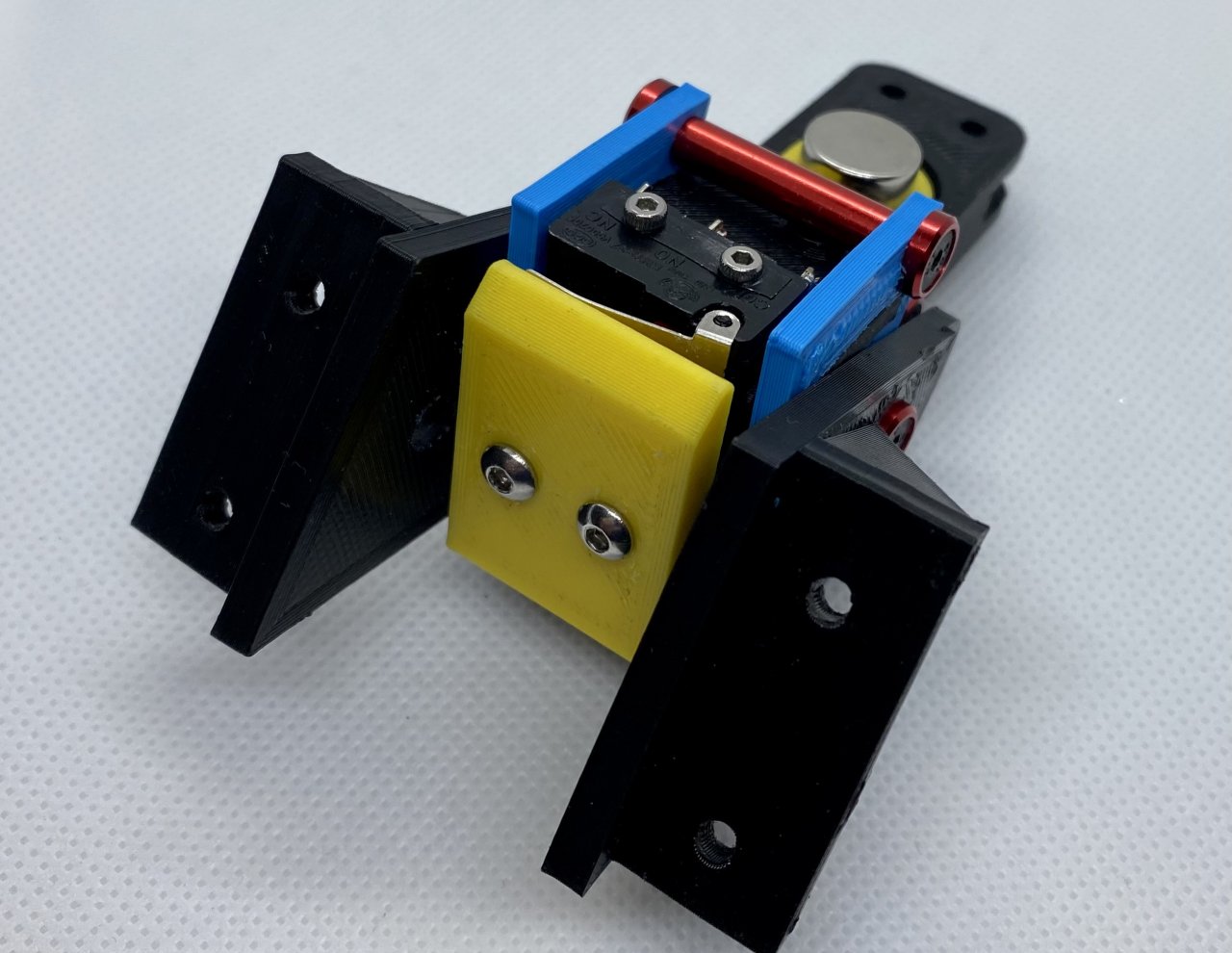

Side bracket allow angle adjustability, mount base has 10mm offset adjustment.

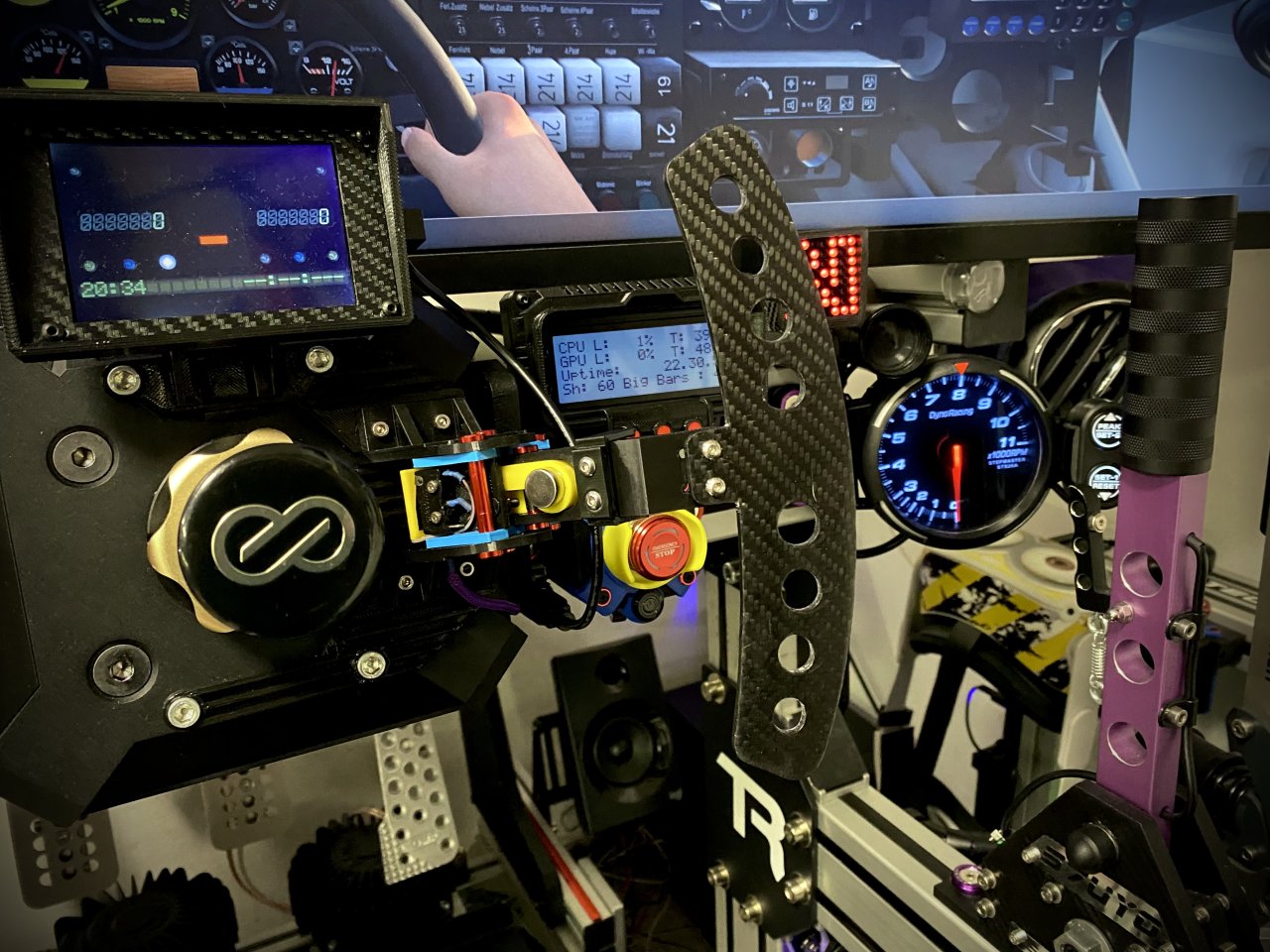

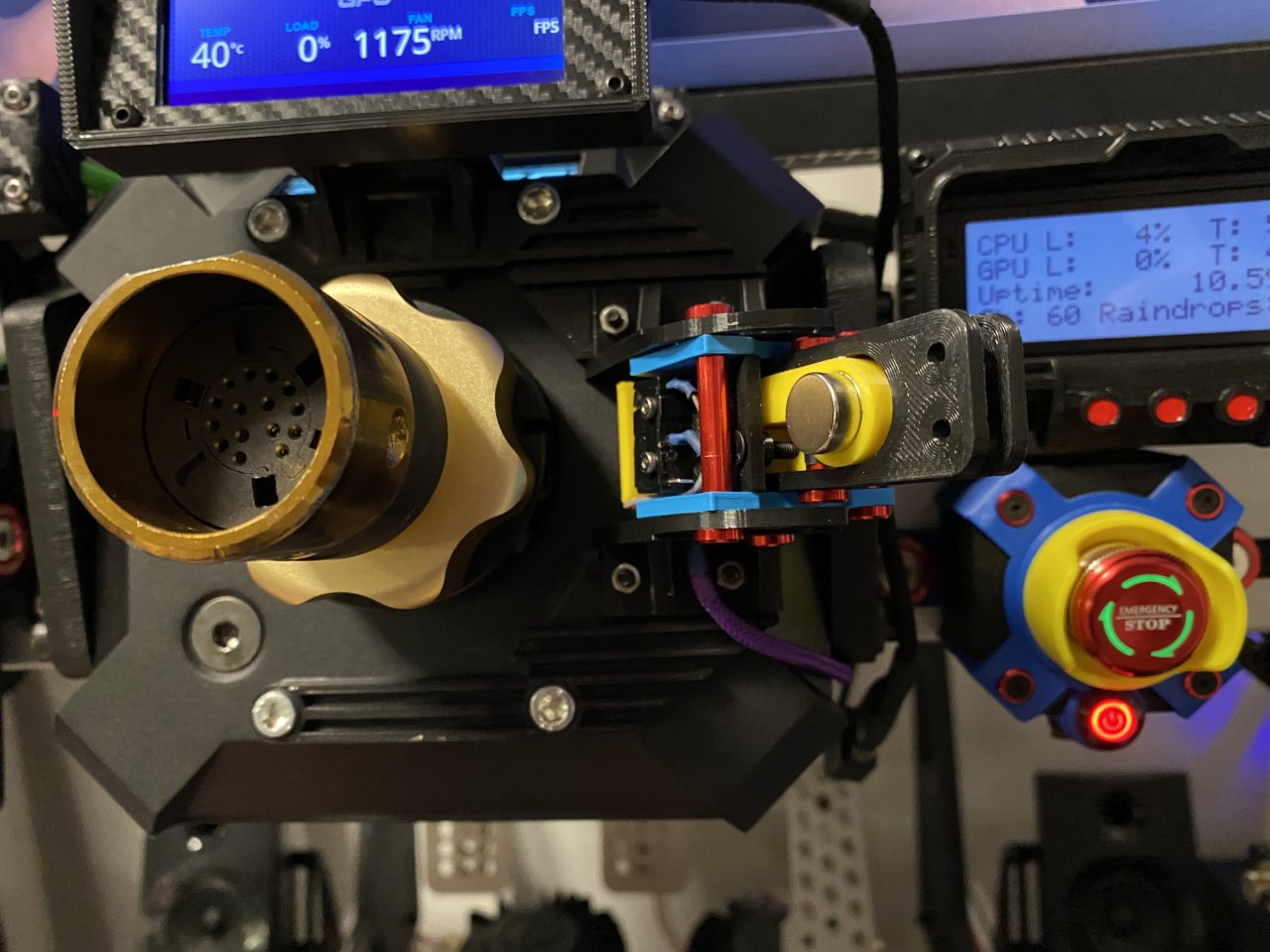

Connected directly to Fanatec DD1 Wheelbase on Shifter2 (sequential) port - check Fanashifter project how to do this custom cable.
-
Parts needed:

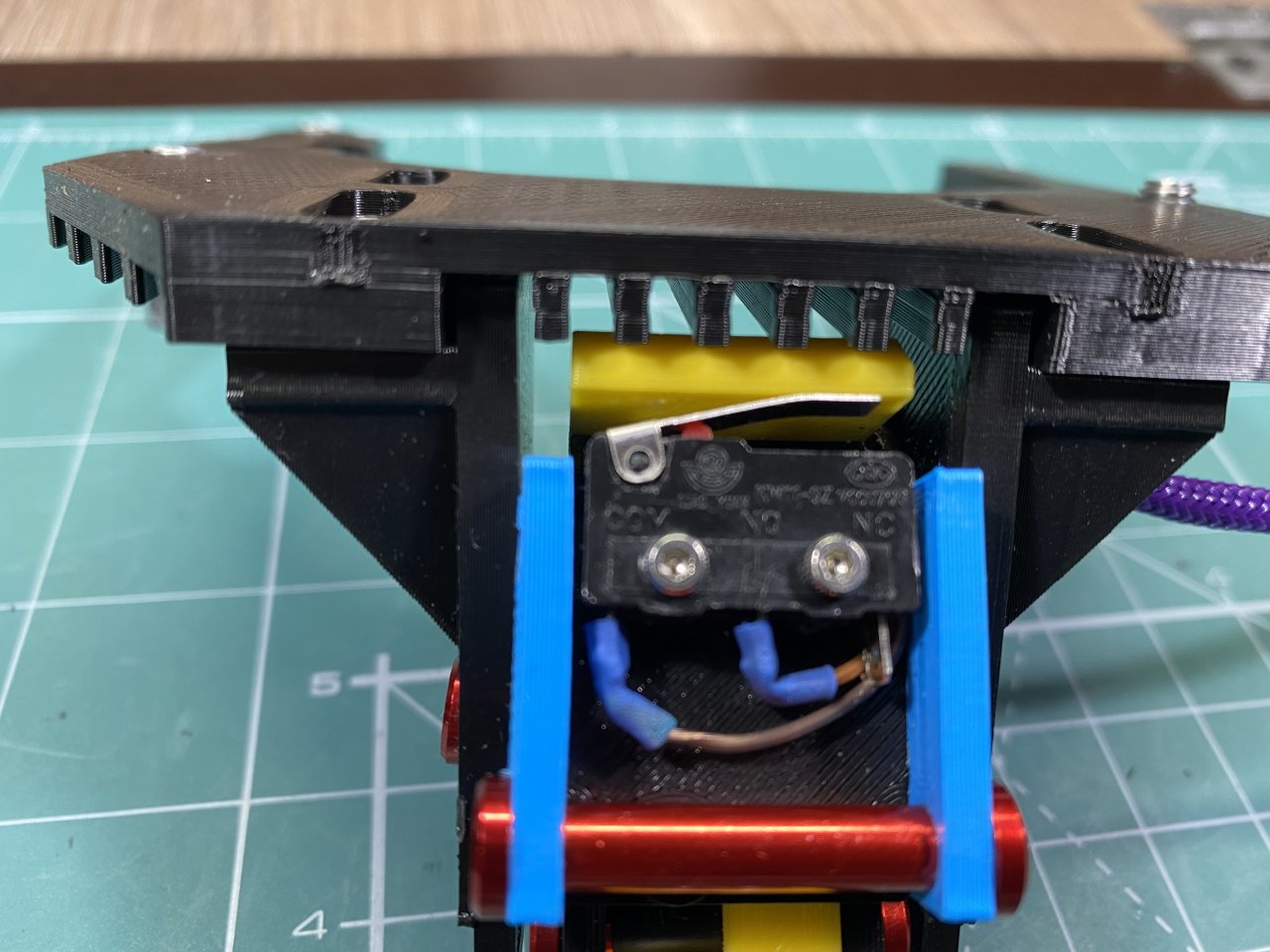

- Omron micro switch or clone (Important! arm must be bend with pliers, see below): https://www.aliexpress.com/item/32273125391.html
- Struts are 22mm, M3 bore, 5mm OD x3: https://www.aliexpress.com/item/32964326790.html
- M3 Alu washers for slick look, not so needed: https://www.aliexpress.com/item/32968161596.html
- M3 countersunk screws, I used 16mm ones.
- Screws for the switches - 2mm
- Neodym magnets x4 - 12x5mm
- M3 mounting hardware for paddles and base
- M3x16mm x2 limiter screws
Print settings:
- Infill 60% for better shifter feel
- Bottom/top layers and walls se to 5
- Supports are needed for arm, magnet arm, QRs and Fanatec mounting plate
