Round Wheel Button Plates
Uploaded 25 July 2024 | Hits: 1164 | Downloads: 144 | Steering Wheels | Free | Digital
-

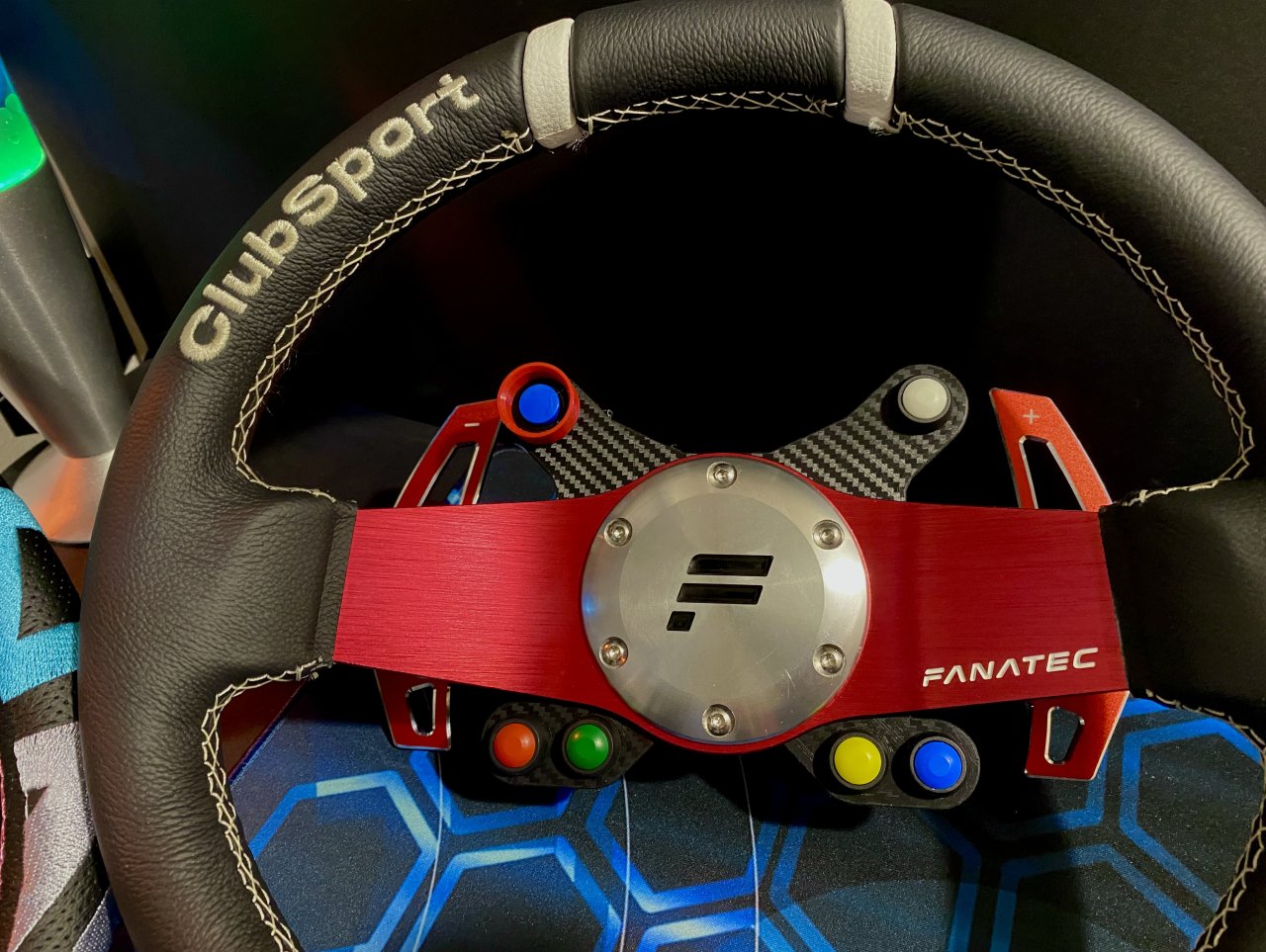

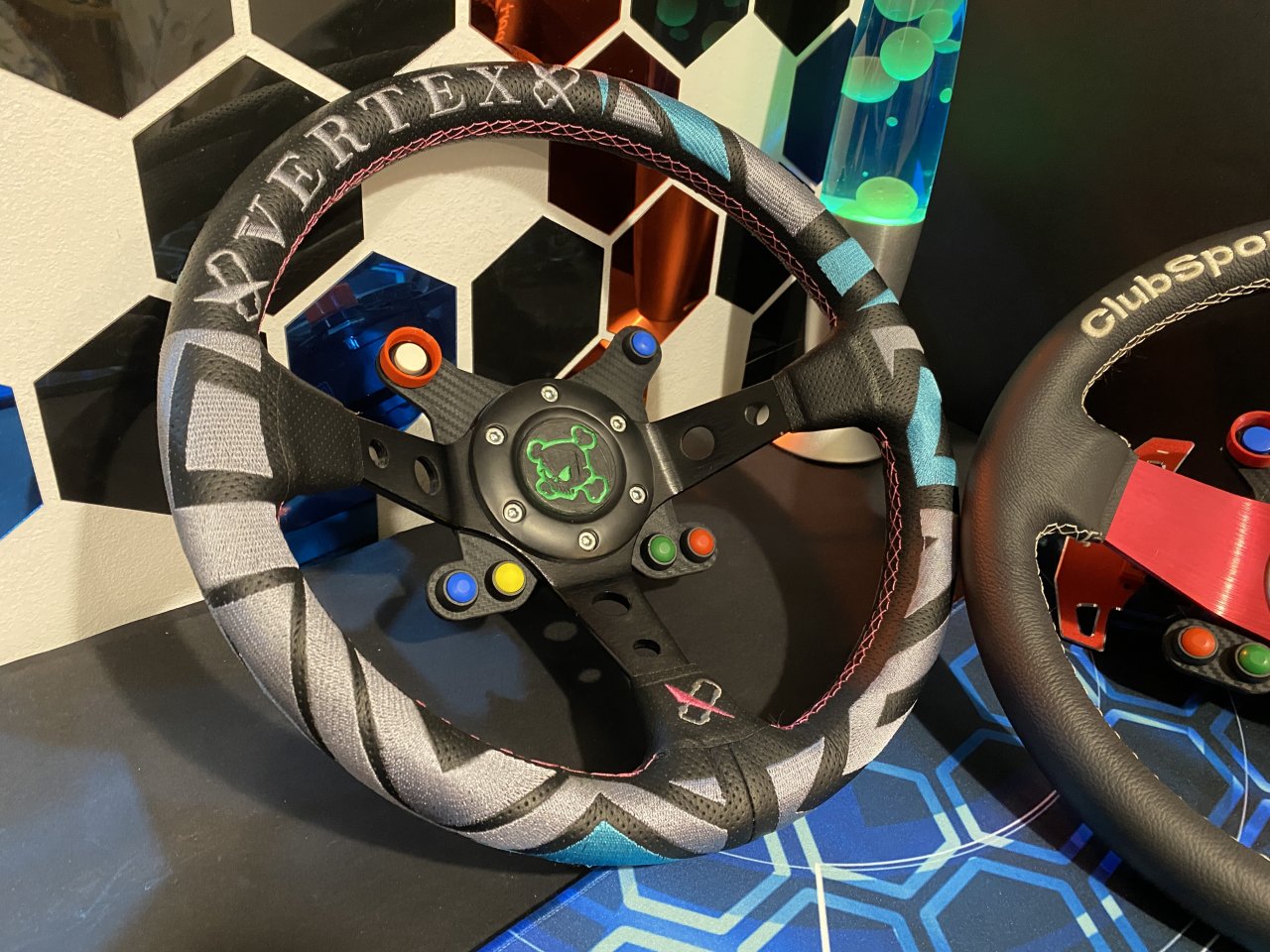

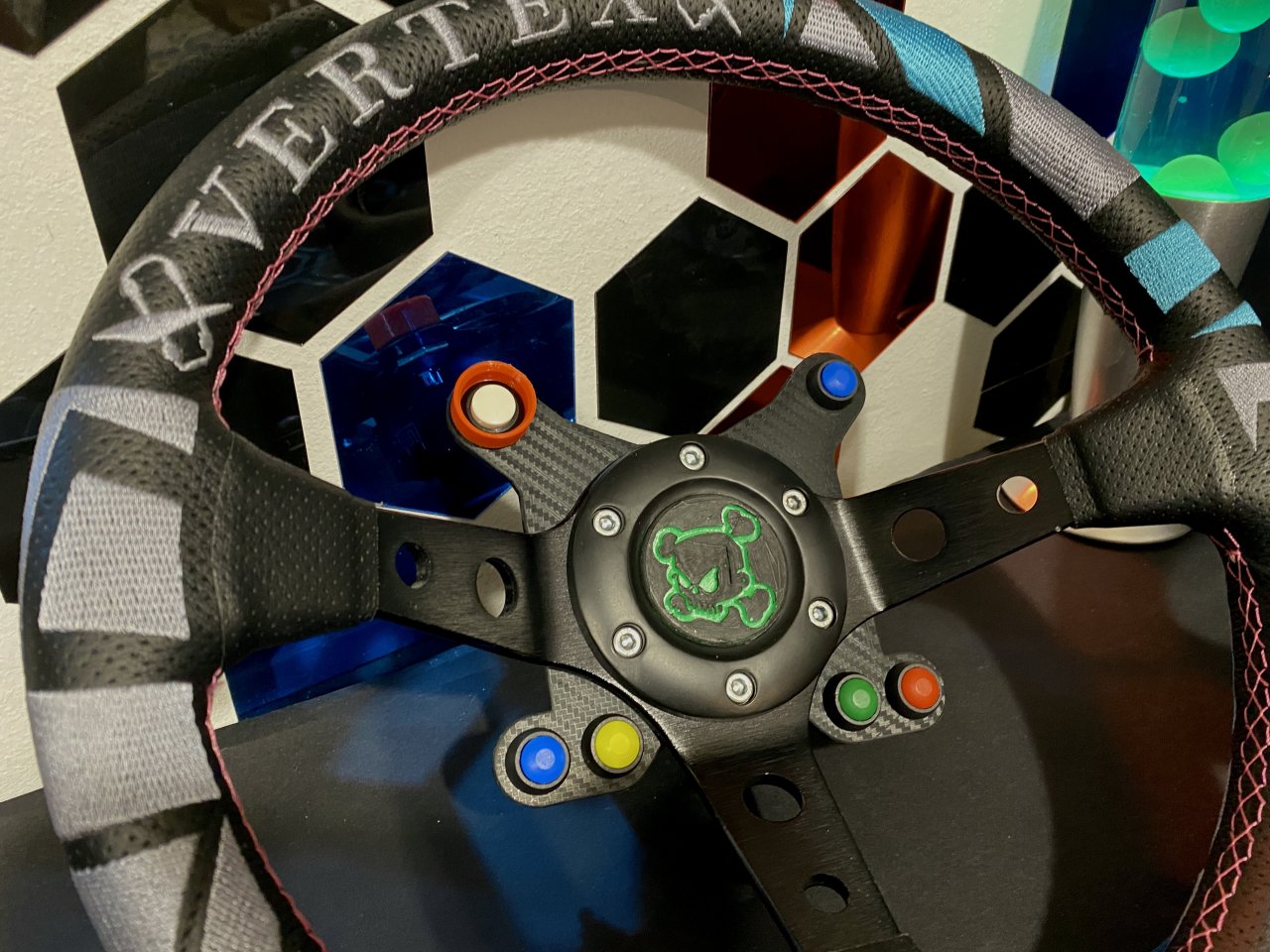

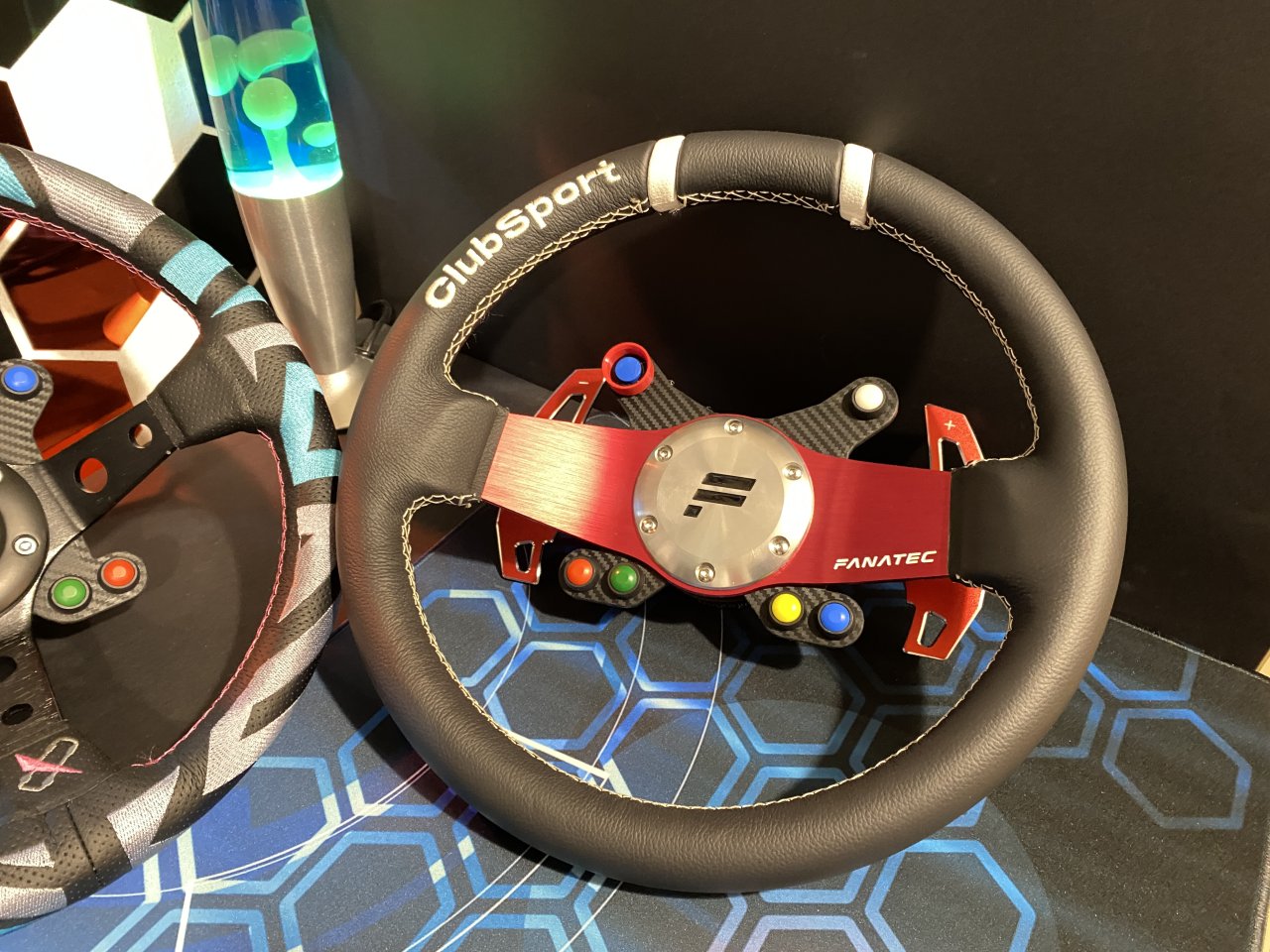

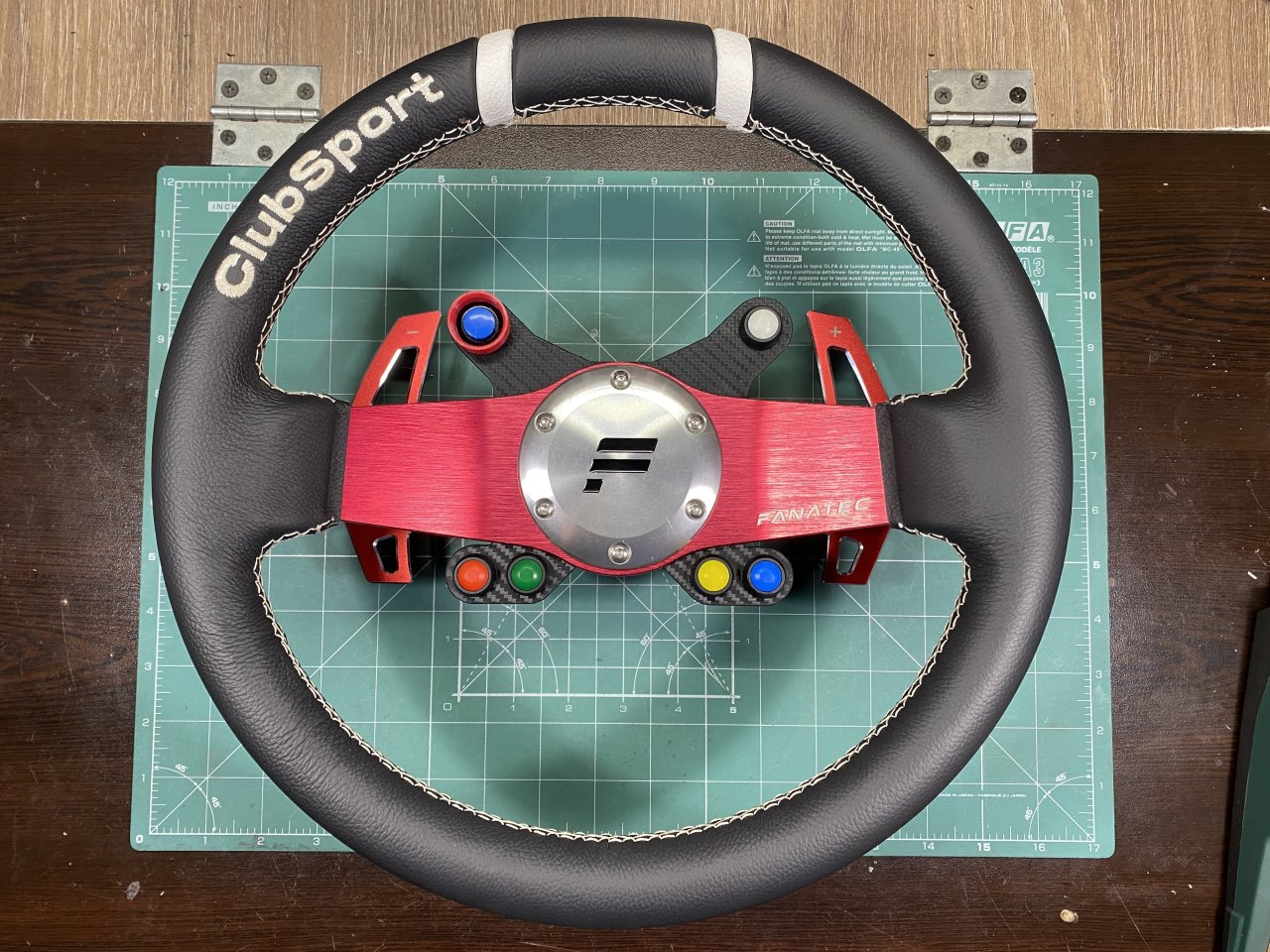

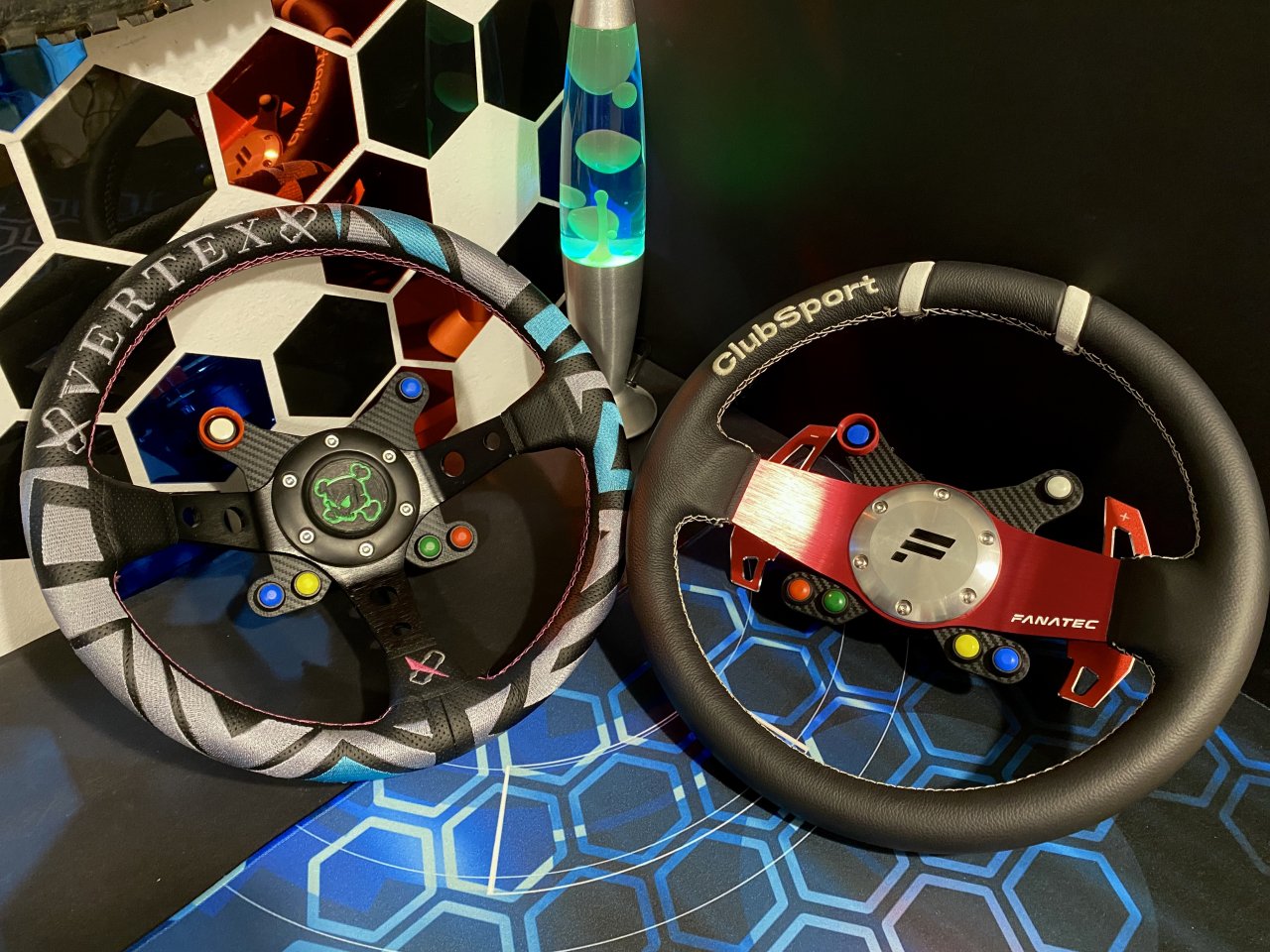

Extension to the dual PTT button plate. Suitable for Drift / Rally Cross round wheels, still easy to print and assemble.

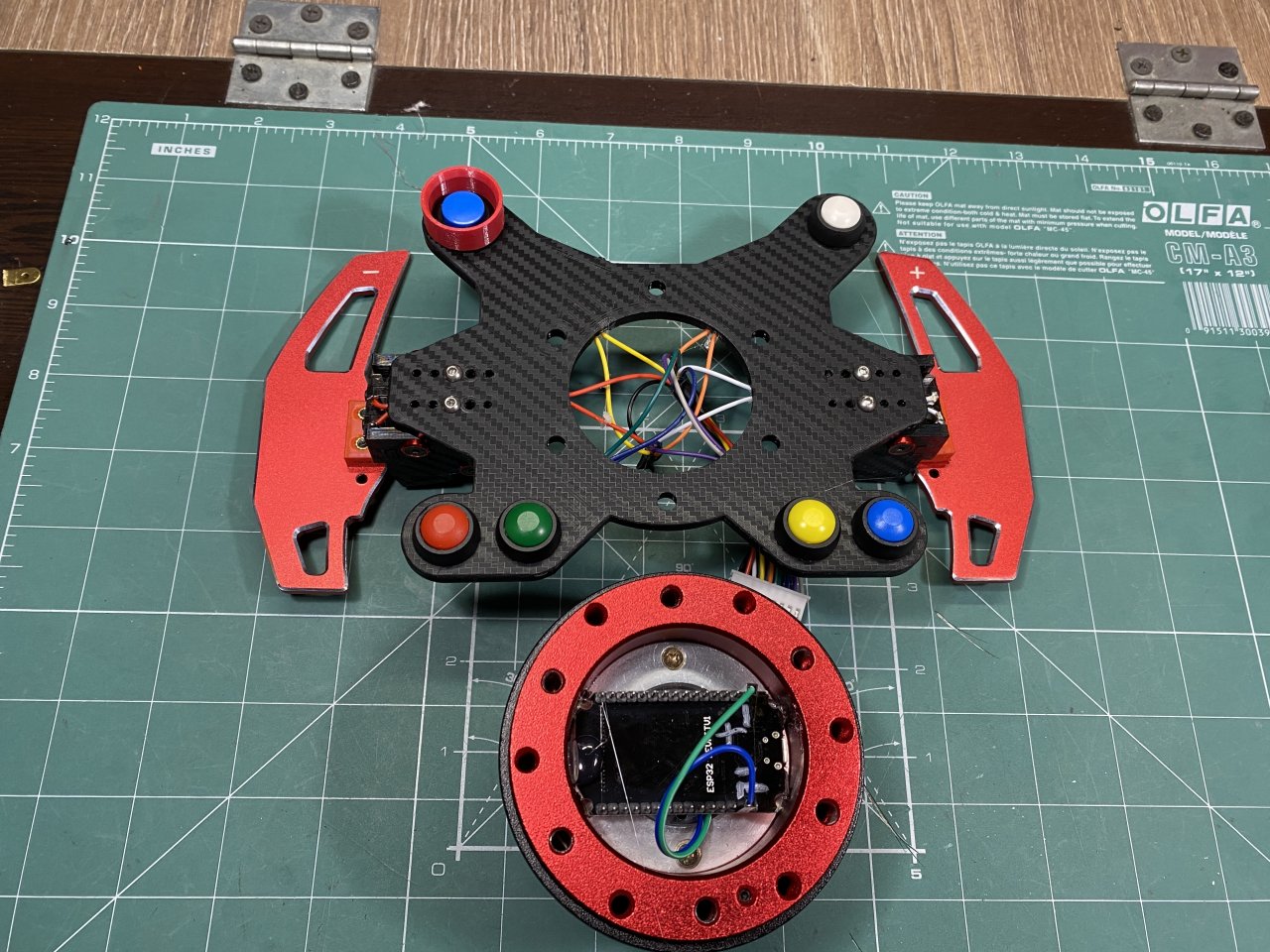

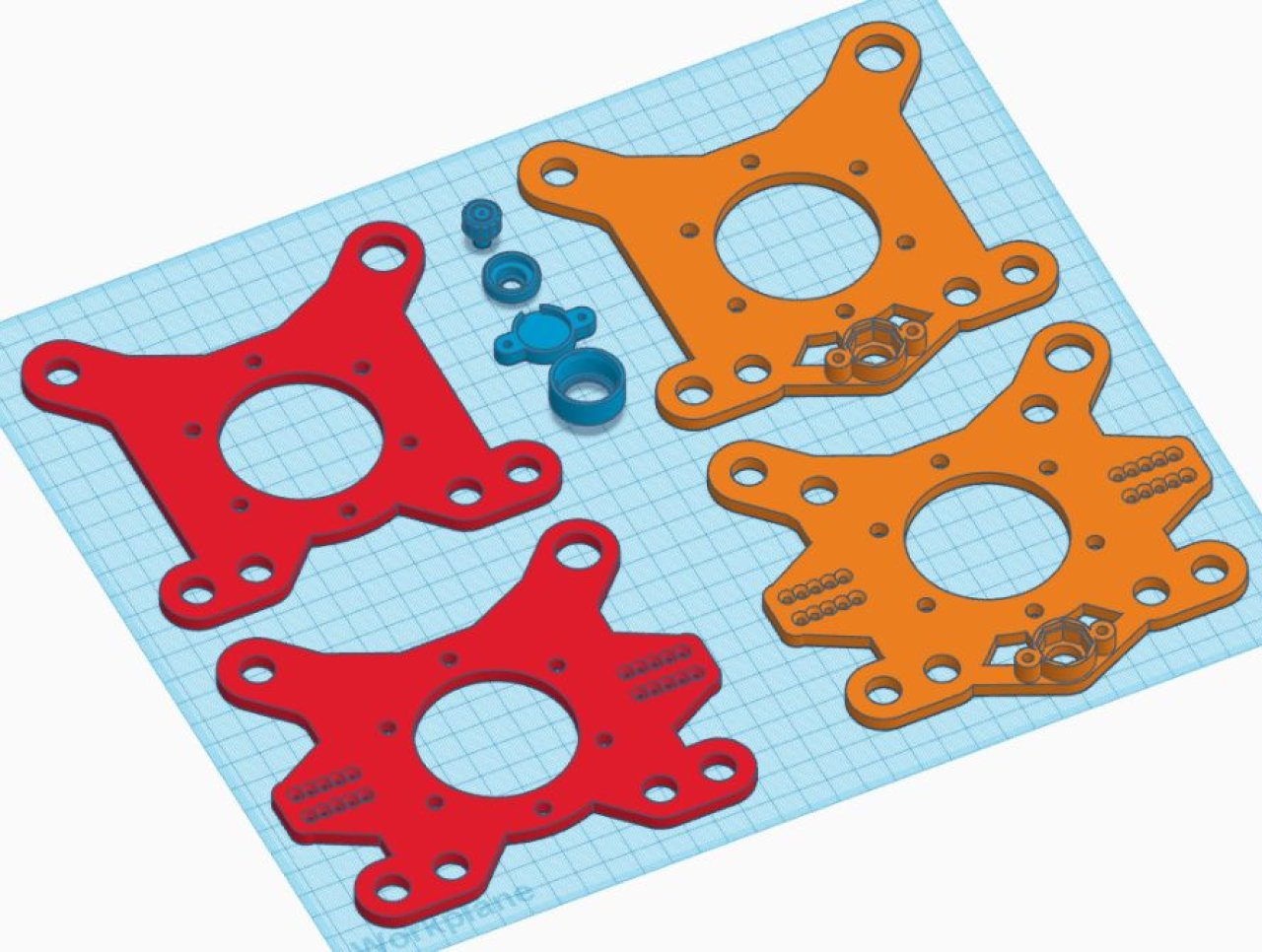

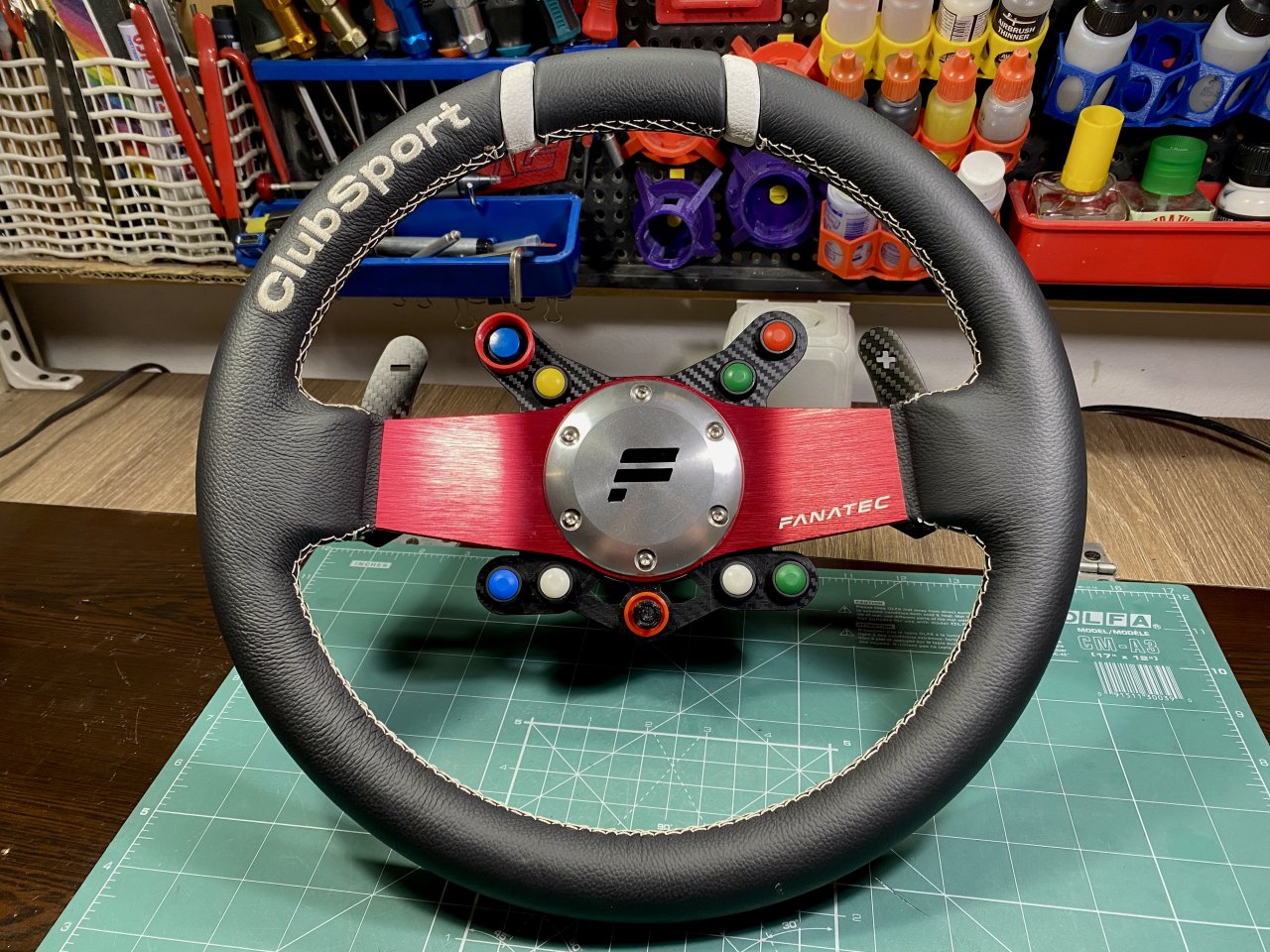

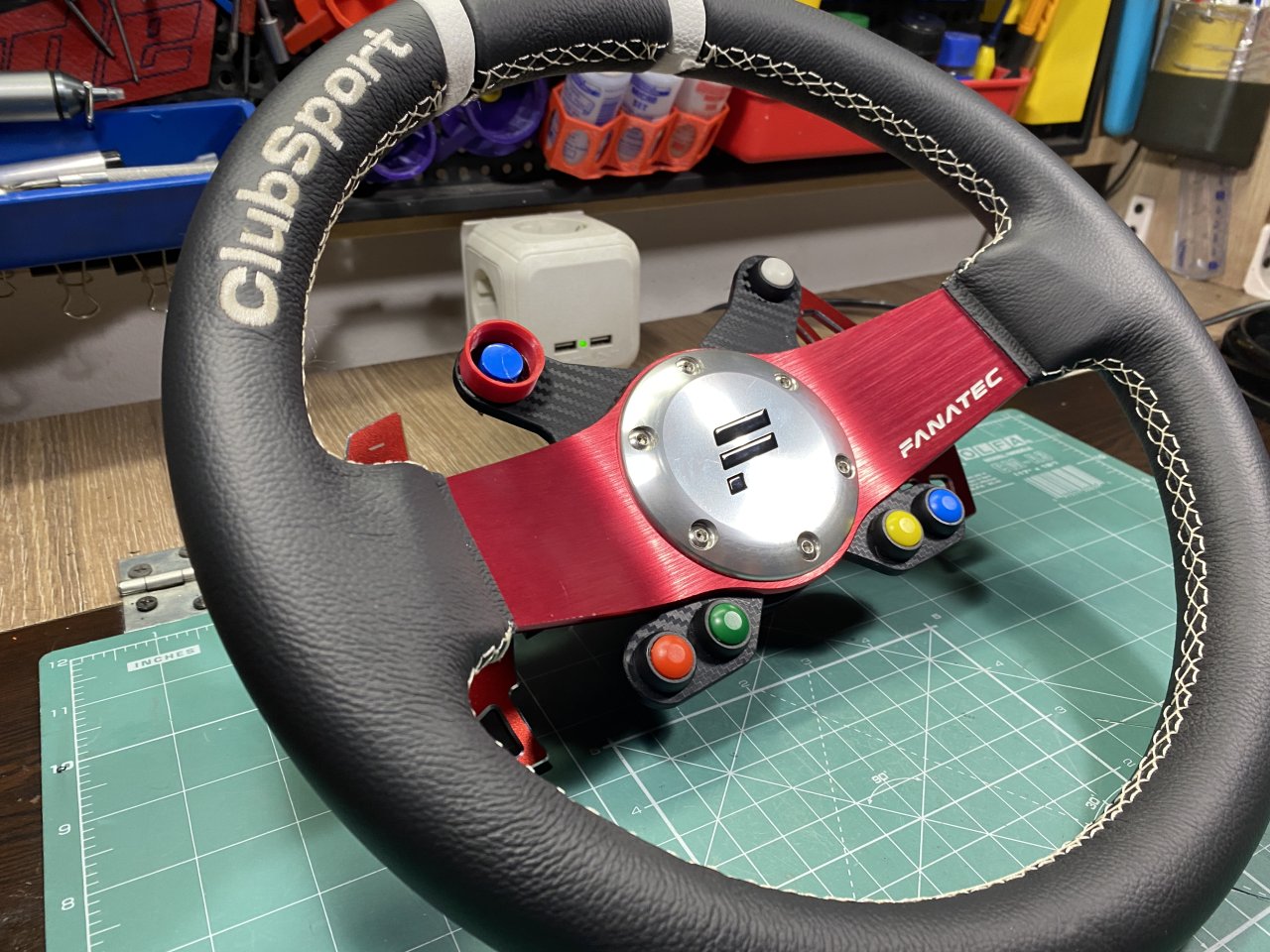

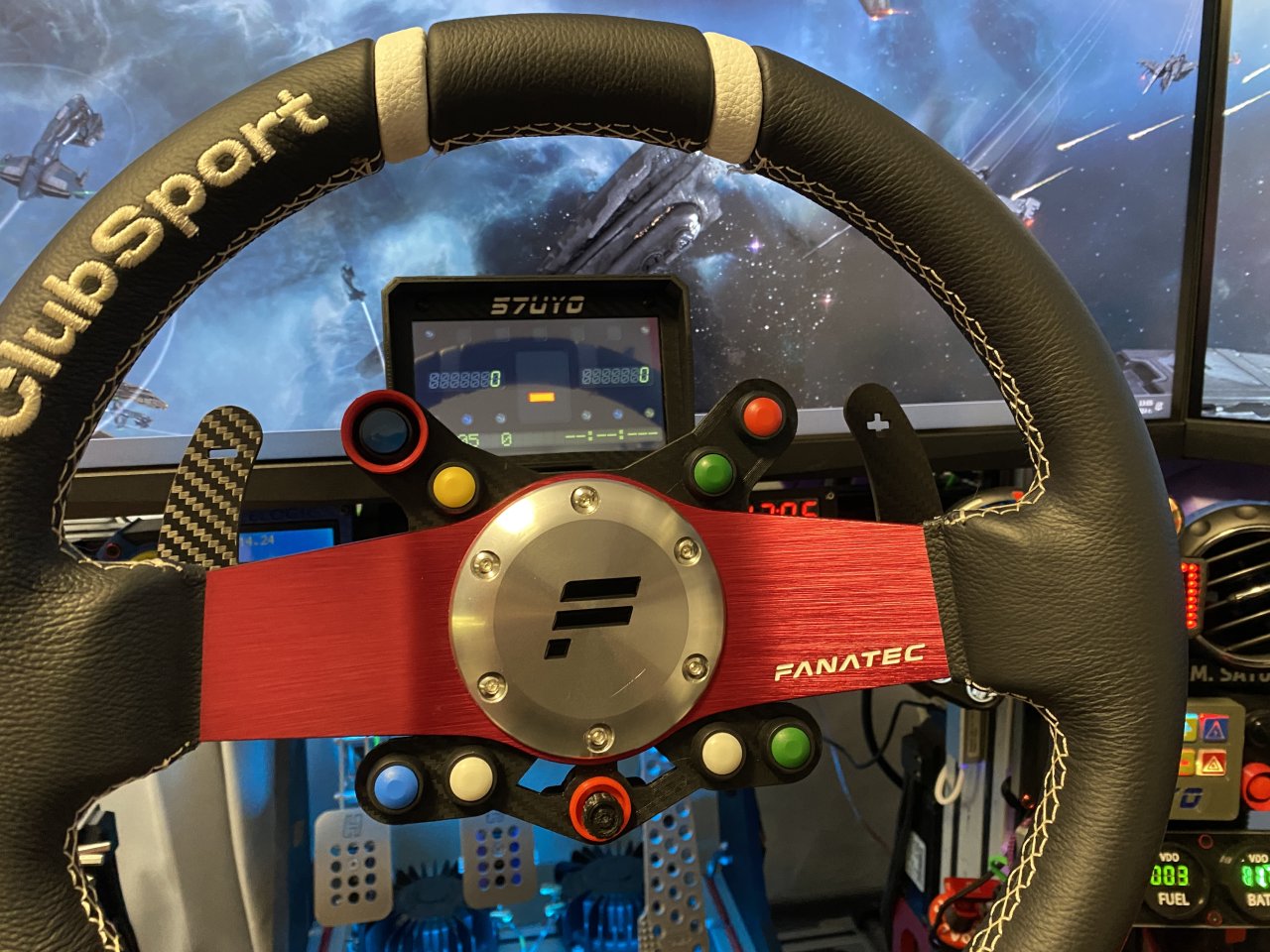

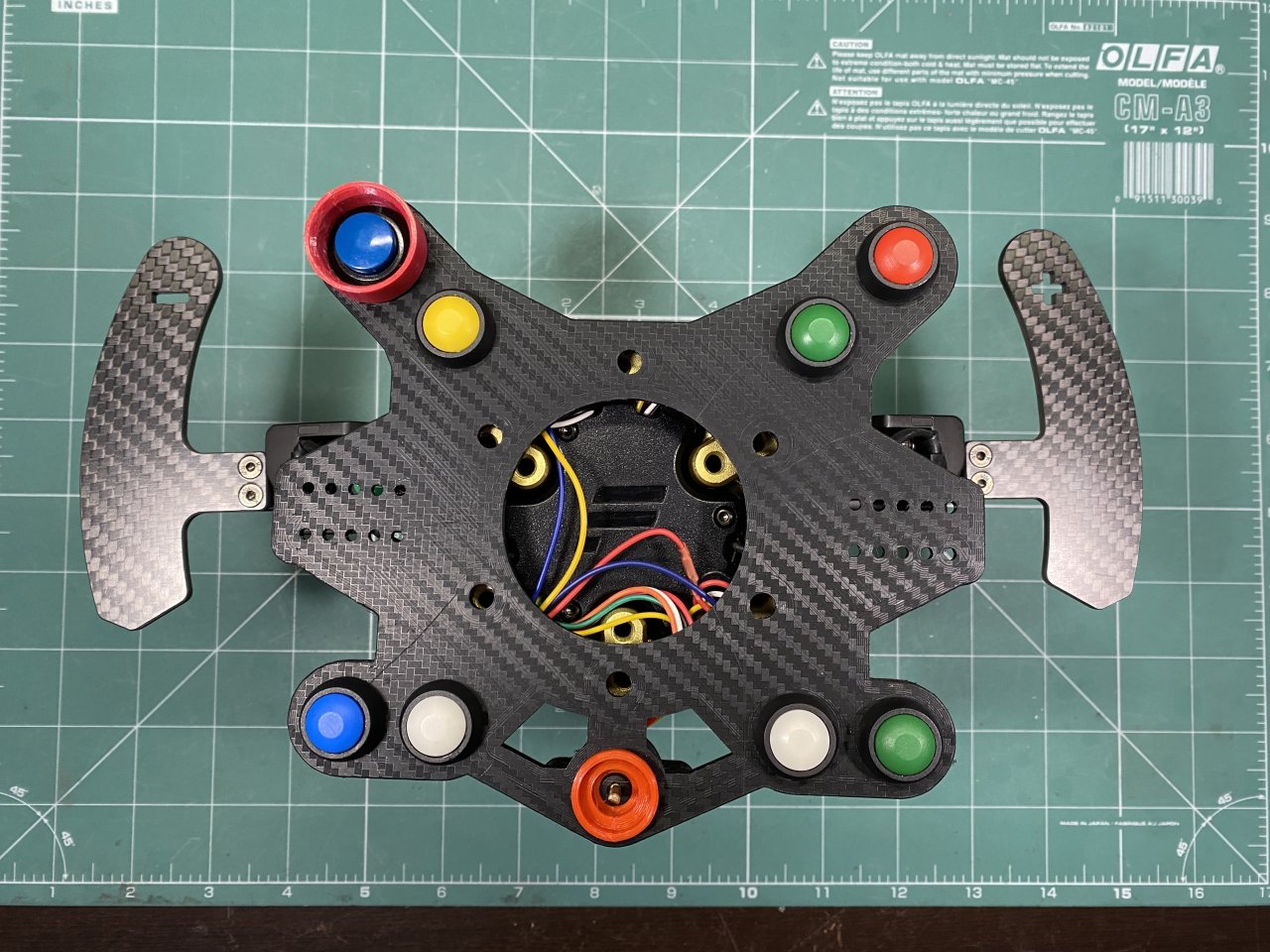

Has several versions: 6 button and 6btn + Funky switch, also both of them with and without mount for paddle shifters.
Fast project to add functionality to your round wheel.
-
Parts Needed:
1. Momentary Push Button Switch 16mm - flat head button used with the guard
2. Momentary Switch 2 Pin 12mm Waterproof Power Reset Non-locking - domed buttons

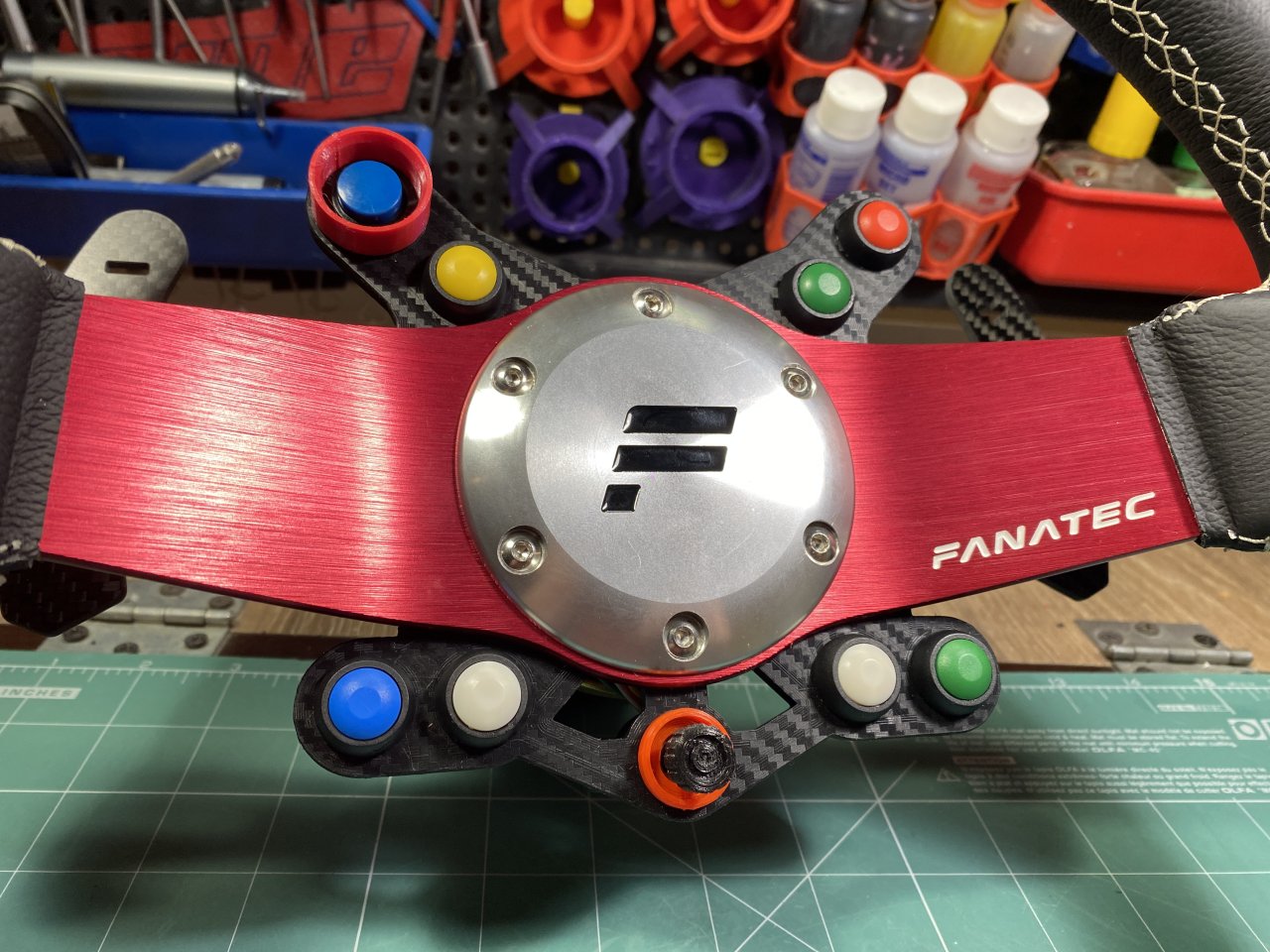

3. YYT original RKJXT1F42001 multifunction switch, plus four-way push switch encoder (Funky Switch)
4. Brass Hot Melt Insert Knurled Nut M3 4.2x6mm
5. M3x12mm bolts to mount Funky backplate
Print Settings:
Oriented to print face down, 40% infill, 5 layers/walls, no supports.
Supports needed only for the Funky Trim
Brim needed only for the Funky Knob
