Dual Paddle Shifter/Clutch Module V1.5

Shifters & Handbrakes · by Stuyo · 13 Apr 2023

Edited the MPM design to make it up to date with my newest single shifter design.

Pit Crew members get new designs 2–3 months early$5/mo →
Assembly GuideWatch on YouTubeRemixThingiverseAsk on Discord
57SEQ MK-I PRO — Sequential Shifter

Ready for a Pro build?

57SEQ MK-I PRO — Sequential Shifter

$15.00 →

✓ Download started

Thanks for building with us

Nothing yet? Check your browser's downloads, or close this and tap Download again.

Keep the free designs coming

84 designs on DIY-SIM are free. Patreon members keep the workshop running, and Pit Crew members get new designs 2–3 months early, the small designs included and 20% off the shop.

Join Pit Crew · $5/mo
57SEQ MK-I PRO — Sequential Shifter

Ready for a Pro build?

57SEQ MK-I PRO — Sequential Shifter

$15.00 →

Get the next design first

One email per new design, unsubscribe anytime. Privacy

Parts listBuild infoAsk on Discord

Built one? Tag @diysimofficial on Instagram to get featured in community builds.

Overview

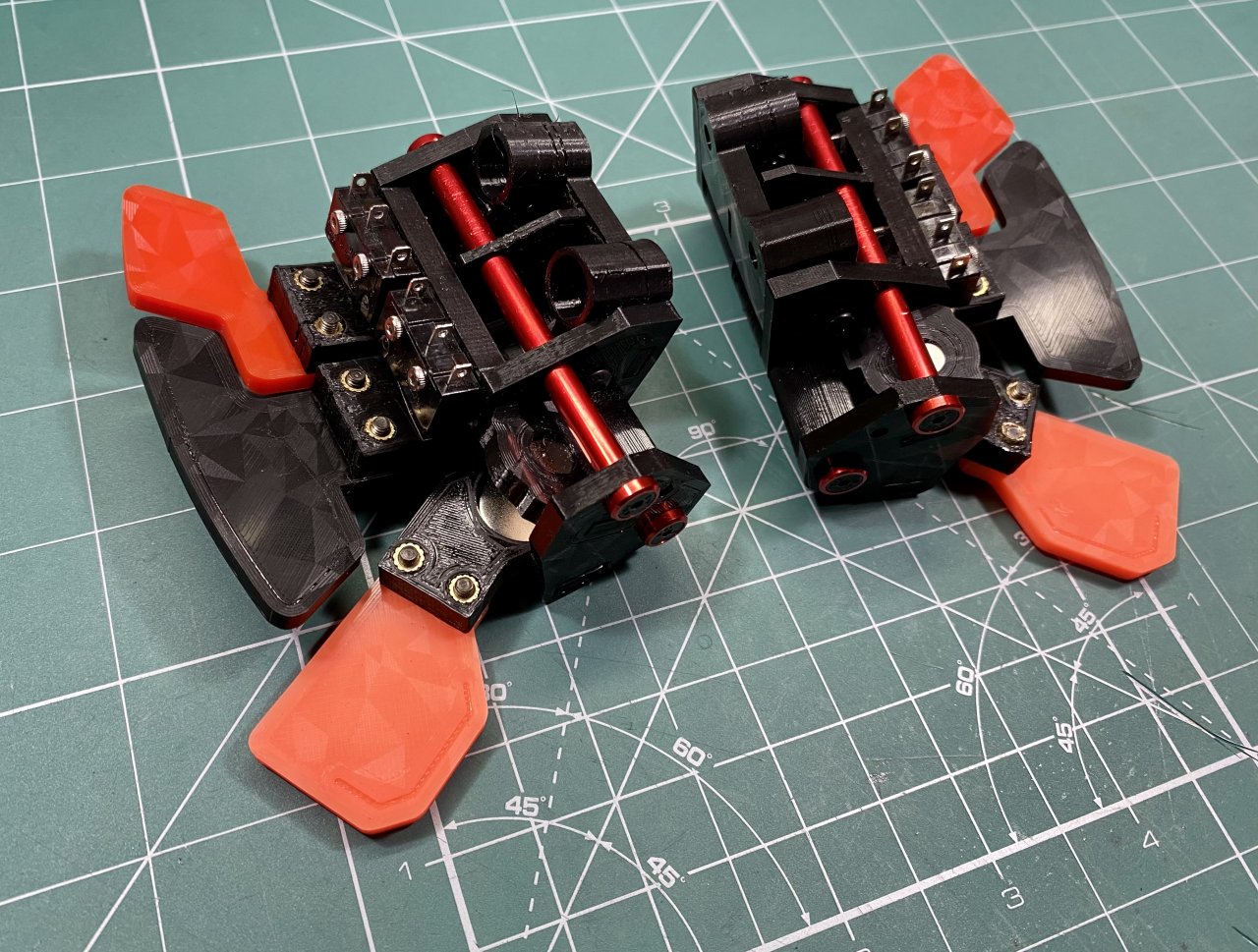

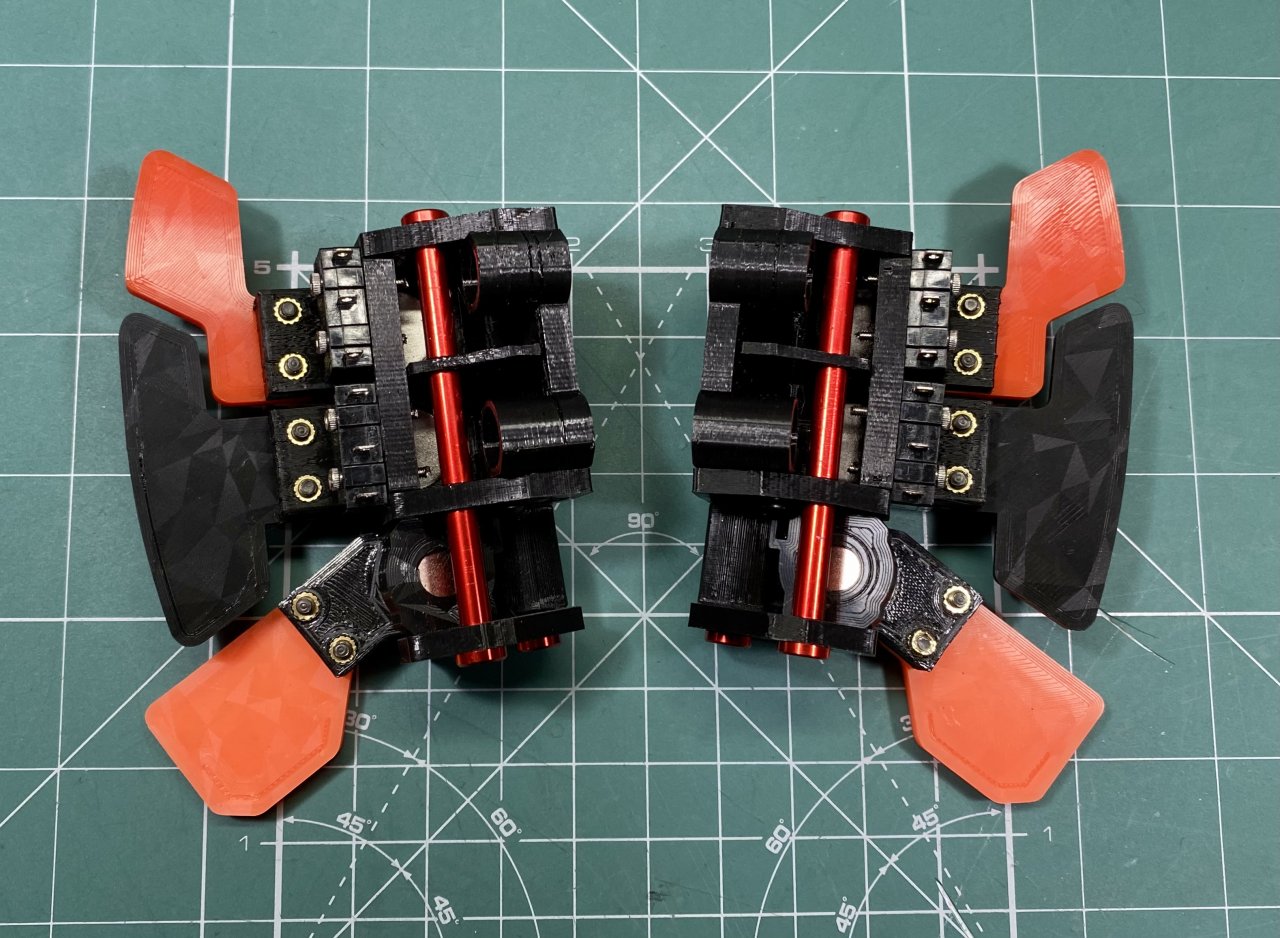

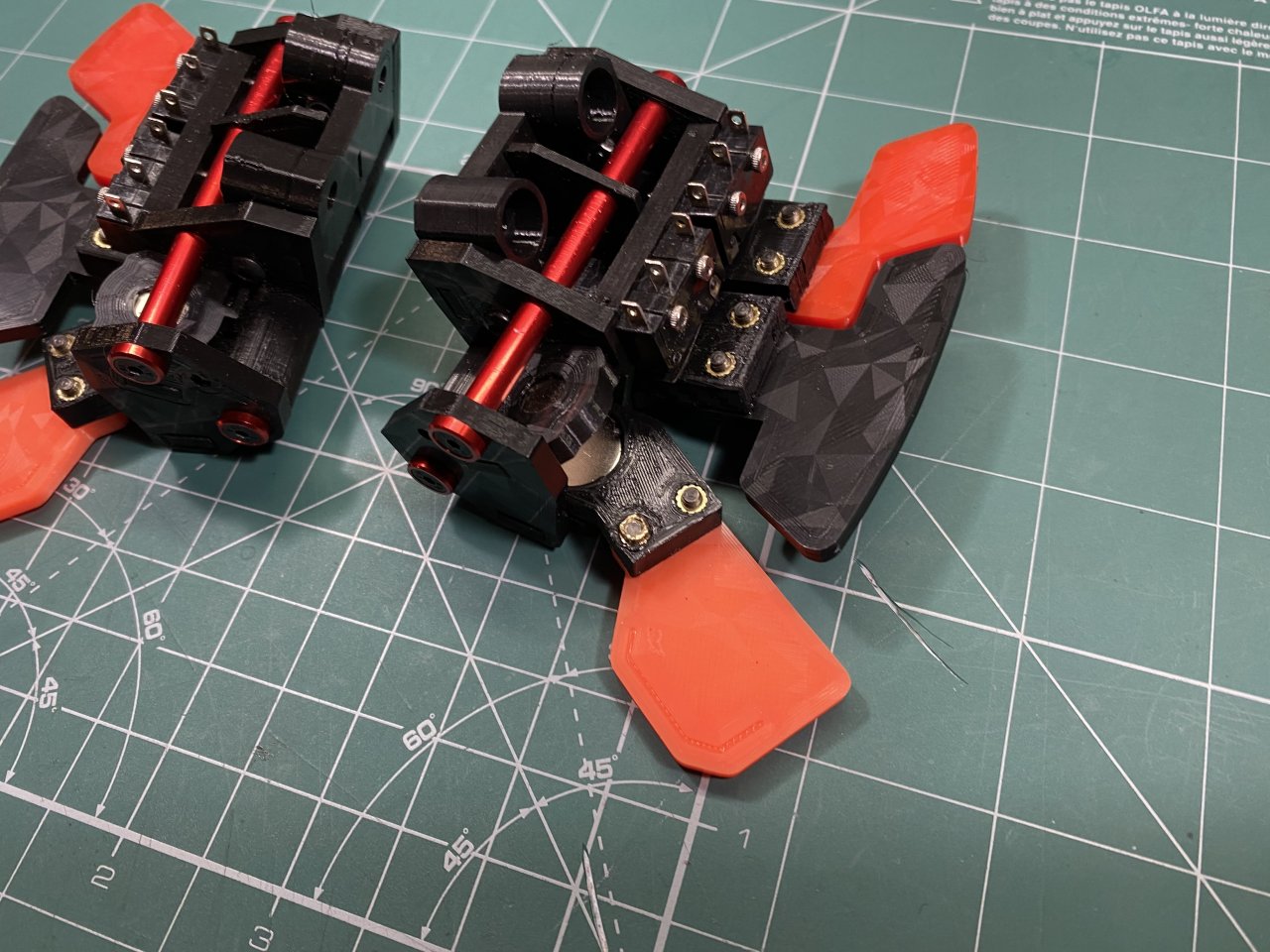

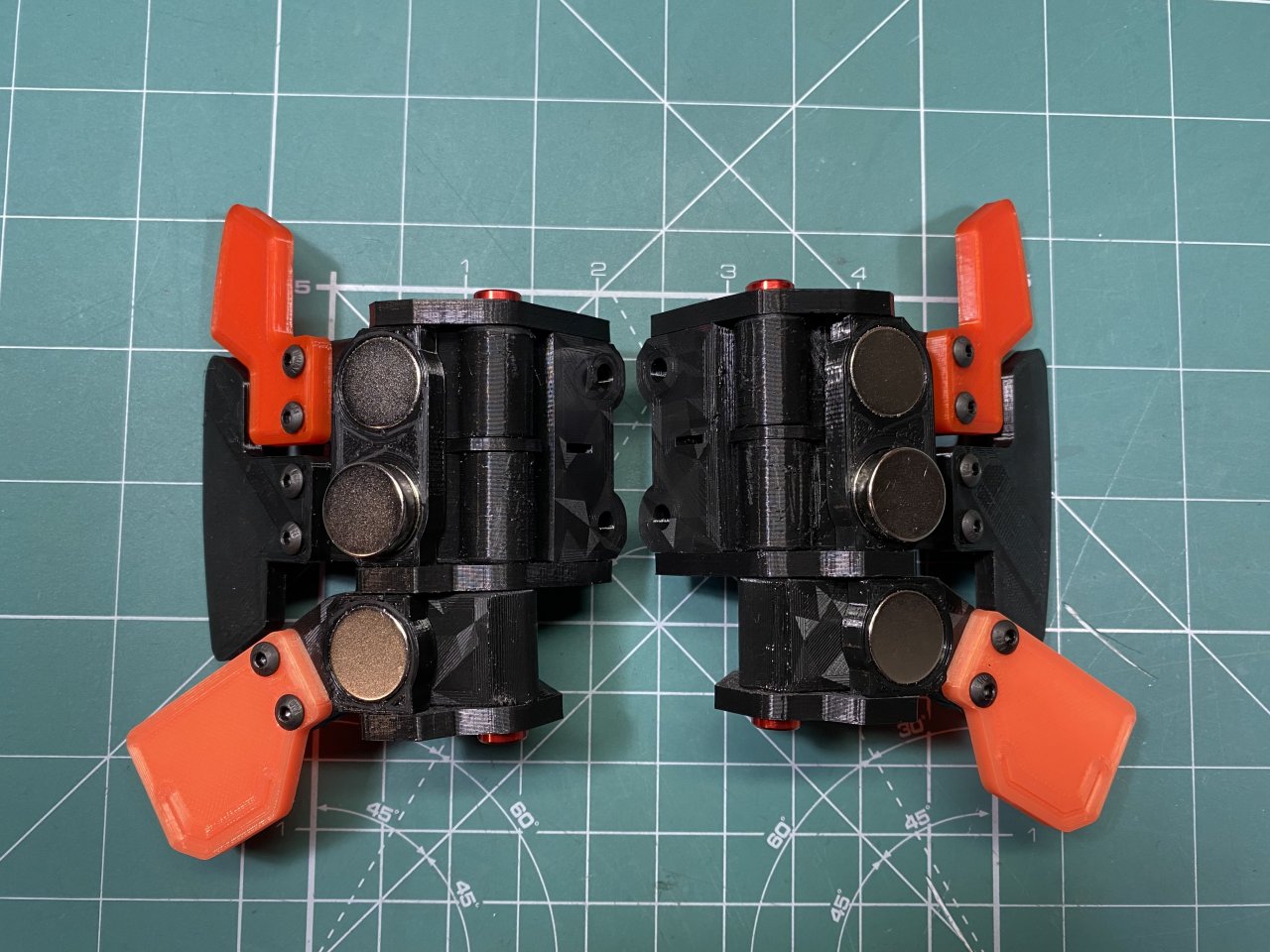

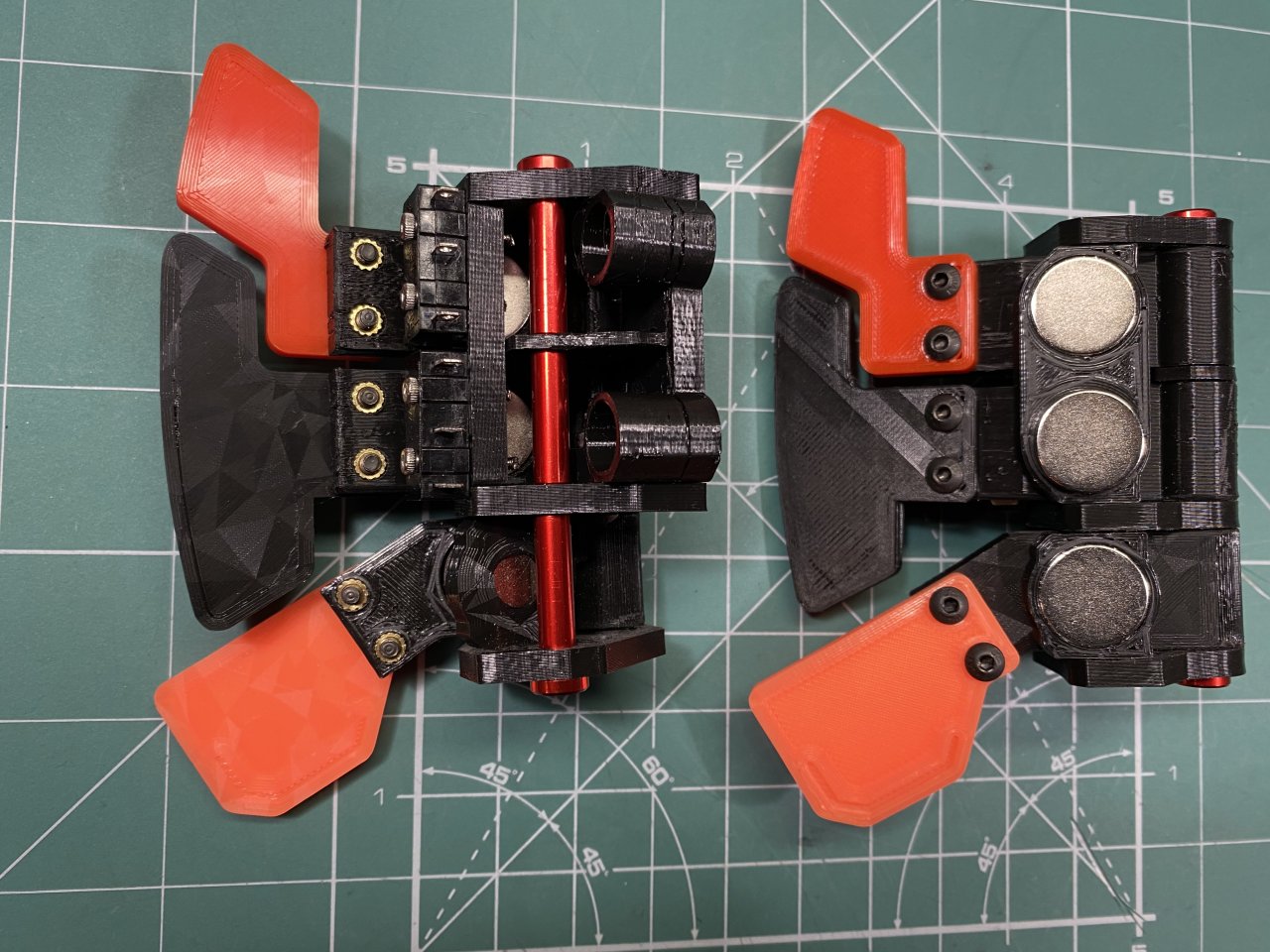

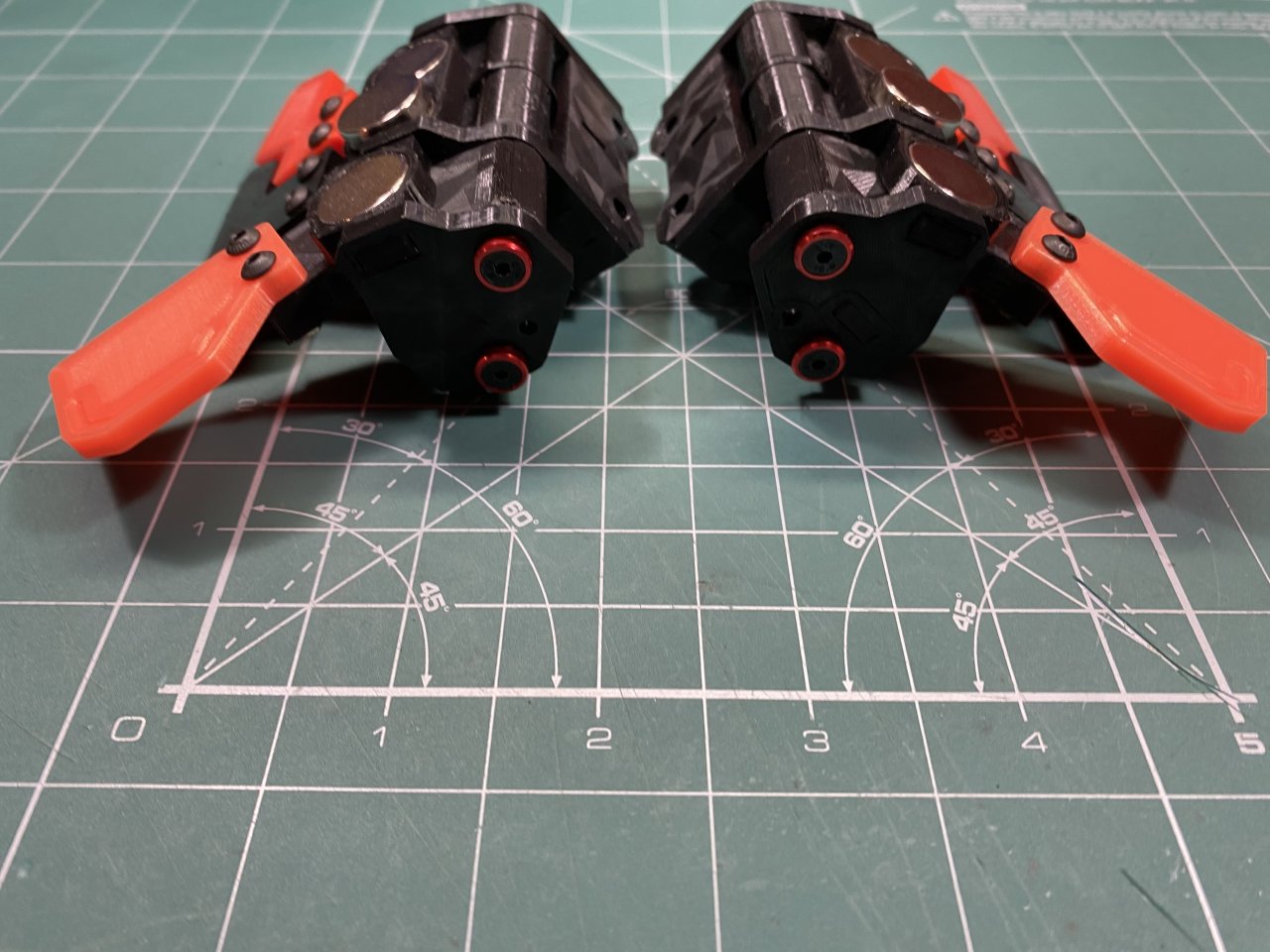

Edited the MPM design to make it up to date with my newest single shifter design. Now it features:

Shorter paddle throw on all three paddles

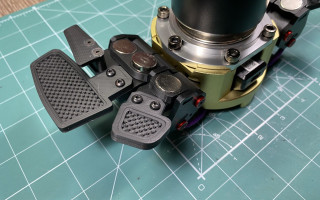

More stable Fanatec mount with additional support

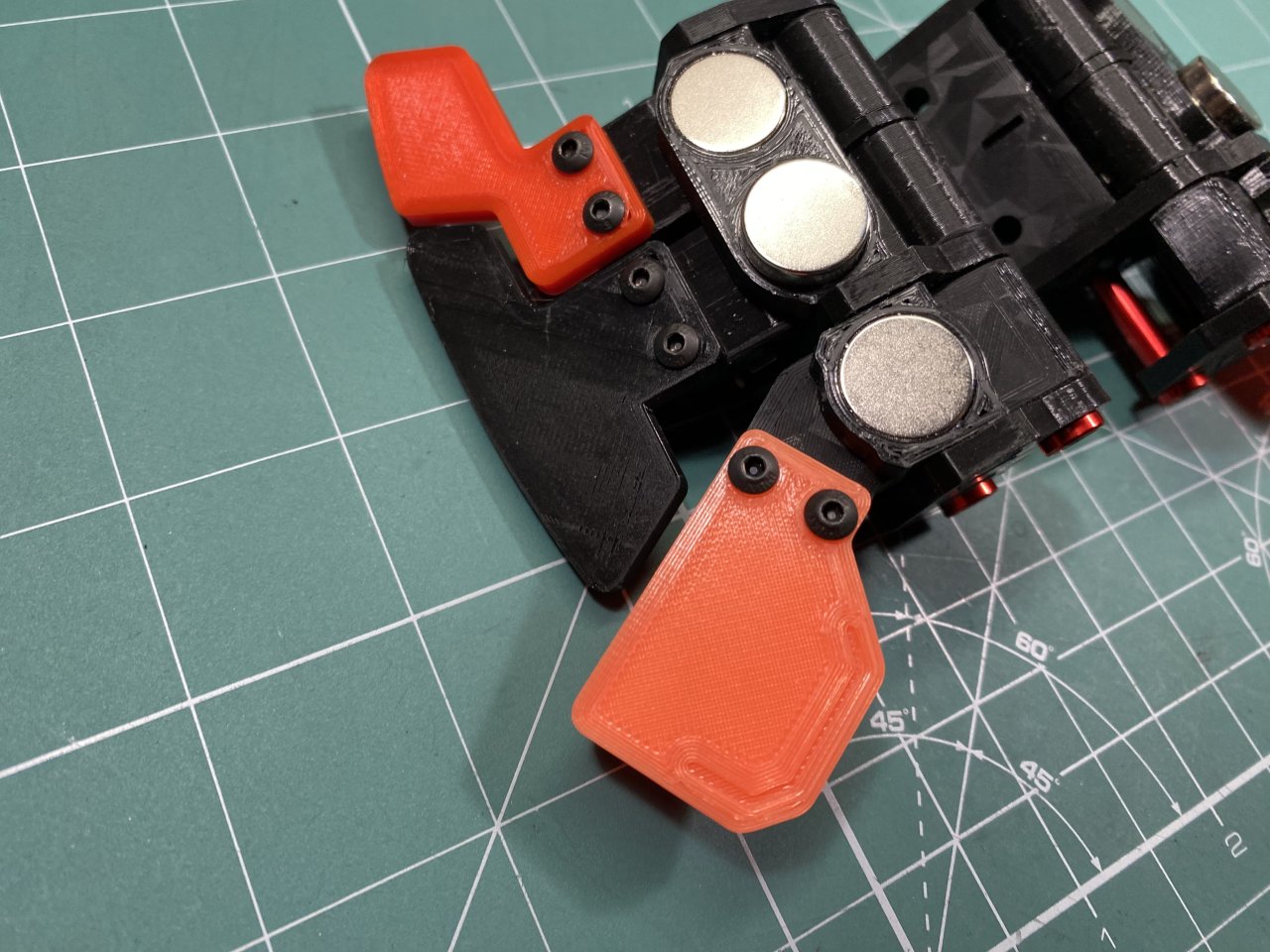

Replica of the original APM paddles

Of course with the shorter throw you will have to bend a little the switches metal arm (see video for reference).

Now with the shorter throw it feels even better. Have not tested, but clutch has 2 degrees less rotation and now should utilize better the whole throw.

All parts and assembly remain the same.

Build info

Parts needed:

  1. Neodym Magnets 15x4mm - 14-16x (depending if you want more magnets on shifter for stronger feel)
  2. Omron micro switch or clone (Micro Switch 2/3Pin NO/NC Mini Limit Switch) with straight handle - 4x
  3. M3 Standoffs (columns, rods, struts, spacers for RC),  (o.d. 5mm), 18mm long - 12x
  4. M3 Alu washers for slick look (Countersunk Head Bolt Washers Gasket), not so needed - 8x
  5. M3 countersunk screws for clutch side assembly, I used 16mm ones - 4x
  6. M3x50mm countersunk screws - for shifter assembly, they hold together the three standoffs in row - 4x
  7. M3x12 round head screws for shifter and clutch paddles, mounting baseplate - 12x
  8. M2 screws for switch mounting, at lease 16mm - 8x
  9. M3 nuts for holding mount plate
  10. M3 brass 3D print inserts, 4.2mm o.d., 6mm length - for paddles/flat base - 12-20x
  11. Magnetic Hall Sensor SS49E - 2x

Included are two mounting options - Fanatec hubs/wheels and flat button plate (bottom mounted).
